Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 11 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | O |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 1200 r/min |

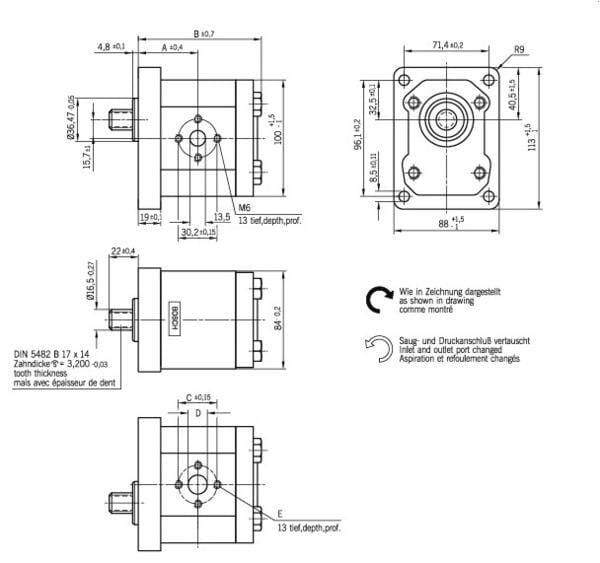

| Mounting diameter | 36.47 mm |
| Mounting holes horizontal distance | 71.4 mm |
| Mounting holes vertical distance | 96.1 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 30.2 mm |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 9T |
| Shaft type code | F |
| Suction port bolts circle diameter | 39.7 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3535 g |
| Dimensions | 178 × 172 × 120 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000210453

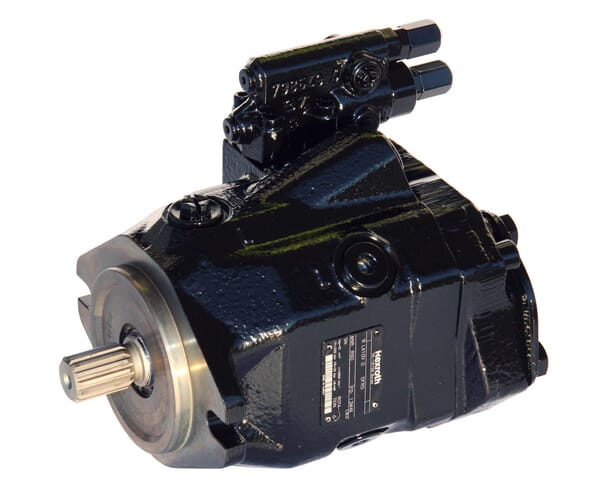

Bosch Rexroth Piston pump CNH 846004690 A10VNO45DFR152RVSC
£2,320.71 excl.
£2,784.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026462

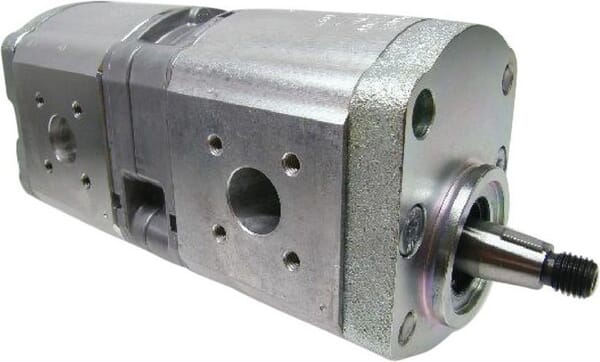

Bosch Rexroth Gear pump AZPFF-12-016/016LCP2020KB-S0007 0510665330
£1,376.60 excl.
£1,651.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000345767
Bosch Rexroth 6/2-Valve 1/2" VS281F-L7454 R933002030
£265.45 excl.
£318.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000210434

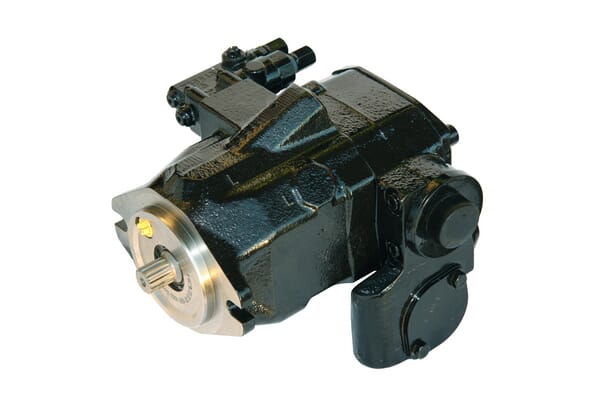

Bosch Rexroth Piston pump CNH 84471390 A10CNO63DFR152RVWA
£3,381.38 excl.
£4,057.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233284

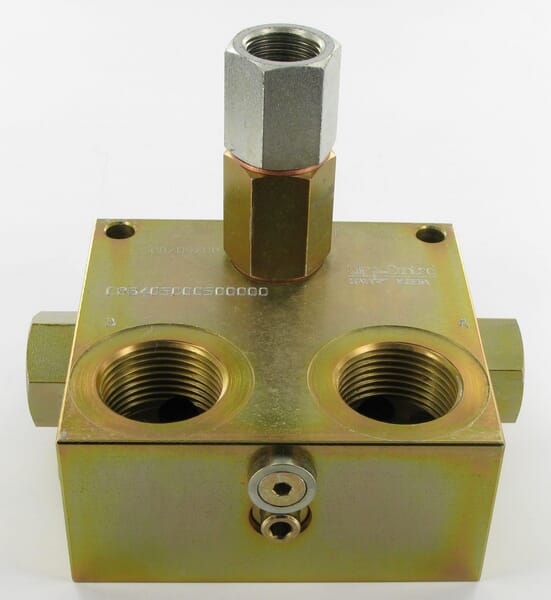

Bosch Rexroth Control valve 1" A-VSL-R 100 AVSLR100
