£371.96
excl. VAT
£446.35 incl. VAT
£446.35
incl. VAT
£371.96 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 19 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 230 BAR |
| Max pressure peak | 250 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 1000 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | R918C01378, G144940012010, G278941100010, G281940100010, G238401100012, G281940010010, G278941100010 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing material | Viton |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
| Weight | 2.8 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3335 g |
| Dimensions | 146 × 100 × 86 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026467

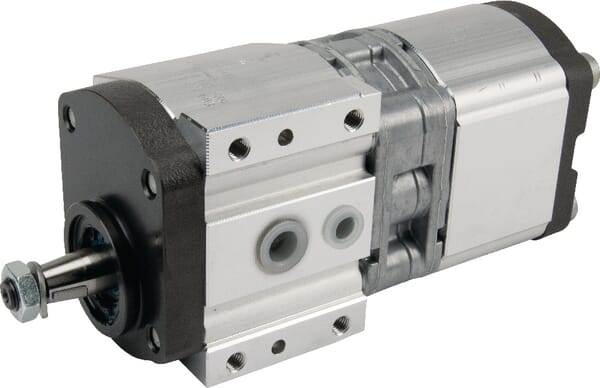

Bosch Rexroth Gear pump AZPFF-10-019/011LCXXXXXMB-S0200 0510665389
£400.55 excl.
£480.66 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026342

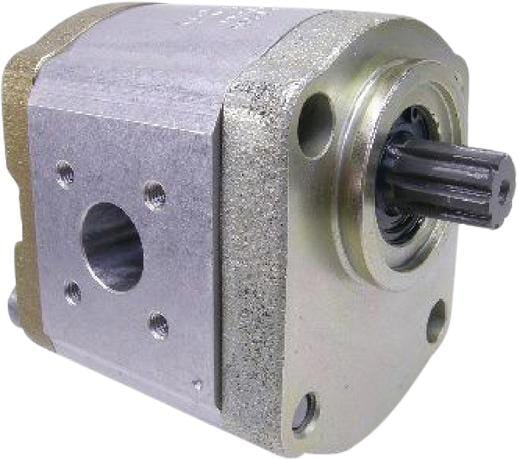

Bosch Rexroth Gear pump AZPF-12-011RFP20MB 0510515006
£689.52 excl.
£827.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000126128

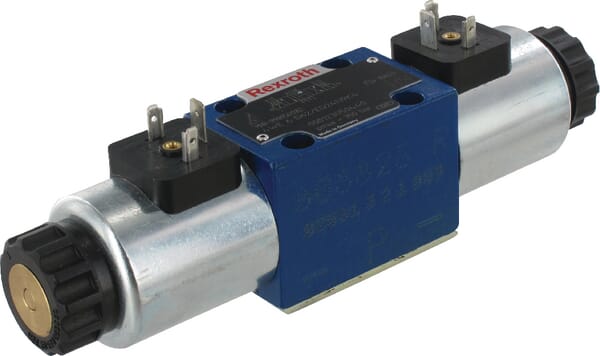

Bosch Rexroth Special 4/3 NG06 4WE6 G6x/EG24N9K4 4WE6G6XEG24N9
£374.97 excl.
£449.96 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000210437
Bosch Rexroth Piston pump CNH 84353124 A10CNO63DFR152RVWD
£3,641.81 excl.
£4,370.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026628

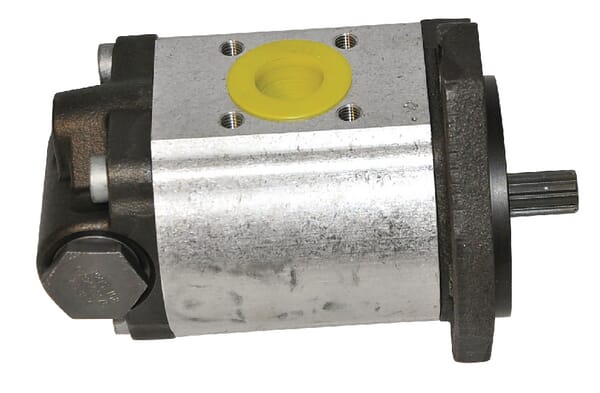

Bosch Rexroth Gear pump AZPS-21-025LRR20PD210XX 0517725308
