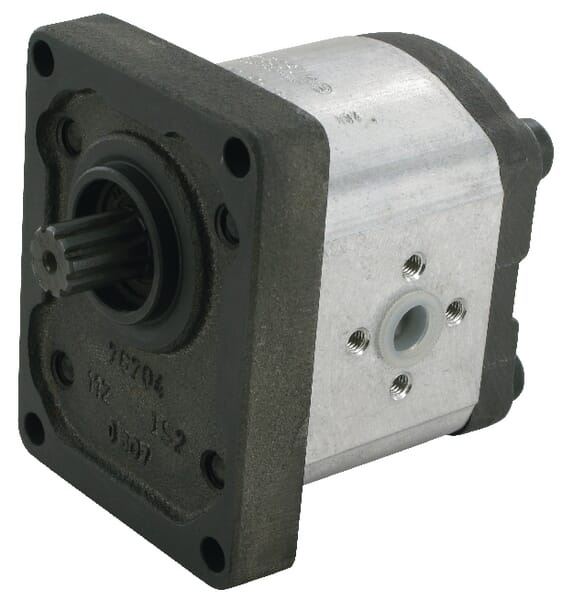

Product details
| Displacement | 19 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Max. continous working pressure | 210 BAR |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2750 g |
| Dimensions | 150 × 100 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026335

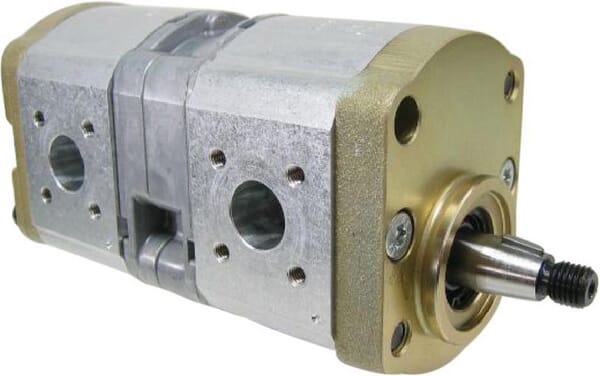

Bosch Rexroth Gear pump AZPFF-12-008/008LCP2020KB-S0007 0510465320
£1,365.26 excl.
£1,638.31 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000210444
Bosch Rexroth Axial piston motor AZ59181 suitable for John Deere A10FM3752W
£2,165.17 excl.
£2,598.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026537
Bosch Rexroth Gear motor AZMF-11-016LFB20MB 0511625301
£657.11 excl.
£788.53 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000210433

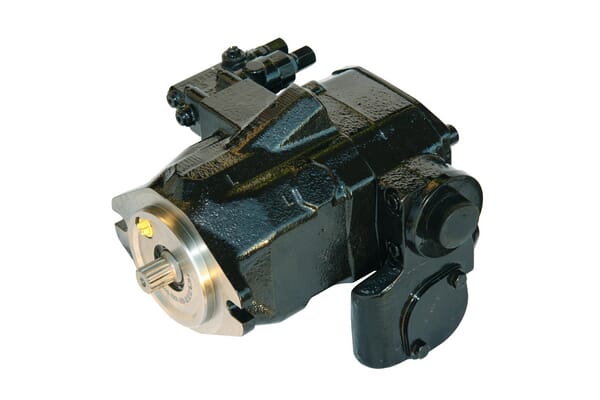

Bosch Rexroth Piston pump CNH 132575310 A10CNO63DFR152R2
