£269.94
excl. VAT
£323.93 incl. VAT
£323.93
incl. VAT
£269.94 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 19 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 230 BAR |
| Max pressure peak | 250 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 800 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | R918C01403, 01175656, 01176003, 01176452, 1176452, 1175656, 1175996, 0510615327, 0510715310 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing material | Viton |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
| Weight | 3.2 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3247 g |
| Dimensions | 150 × 101 × 87 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026383
Bosch Rexroth Gear pump AZPF-11-011RSA20MB 0510545001
£583.38 excl.
£700.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000050497

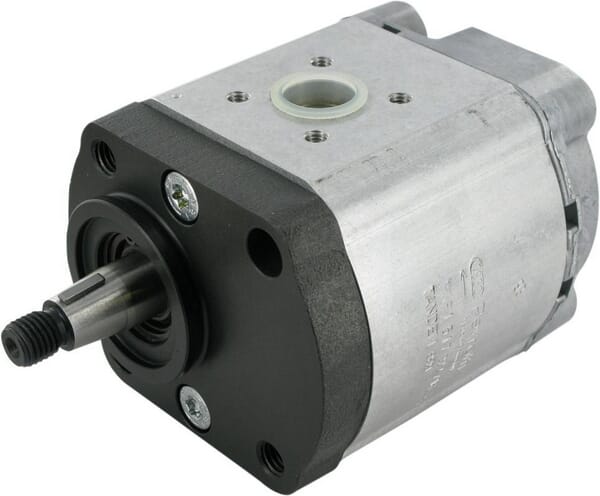

Bosch Rexroth Gear pump AZPF-11-019LCP20MM 1517222716
£595.67 excl.
£714.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026443
Bosch Rexroth Gear pump AZPF-10-019LFO30PB-S0001 0510625369
£720.11 excl.
£864.13 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026329

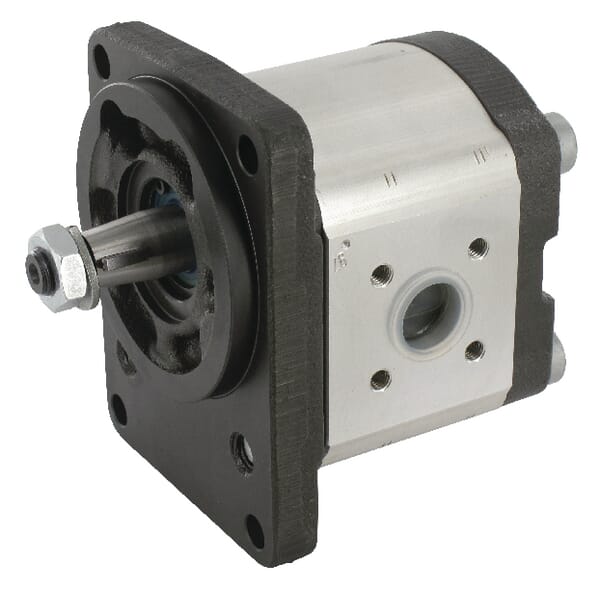

Bosch Rexroth Gear pump AZPF-11-008LCB20MB 0510425307
£416.98 excl.
£500.38 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026338

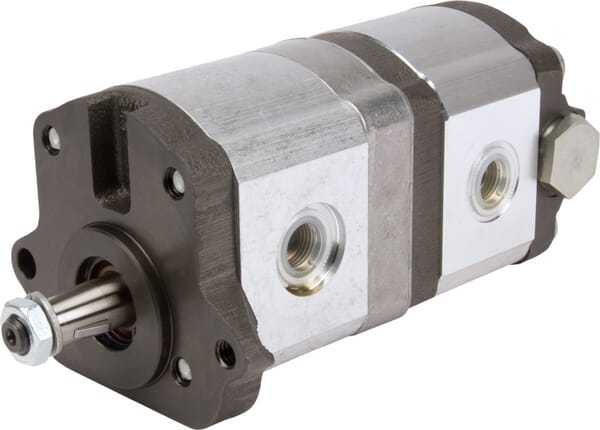

Bosch Rexroth Gear pump AZPFF-10-010/007LHX50XXKX-S0215 0510465343
£1,398.10 excl.
£1,677.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000219437
Bosch Rexroth Axial piston motor CNH 84168176 AA2FM10761W
£3,902.30 excl.
£4,682.76 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000405406

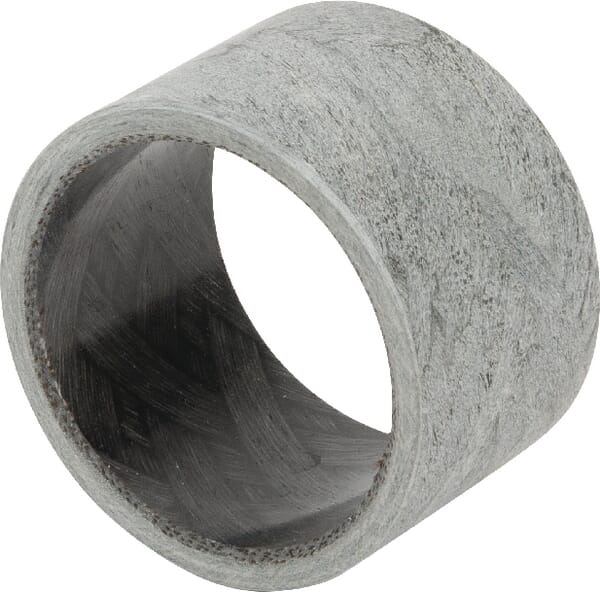

GLT/LHG Bearing bush 40x48x40mm ZB404840PWM
