Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 11 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 1200 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | 0510515333, G150403101012, G131861010010, 0510512302, 0510510304, G144940013011, G144940013011, 0510515305, 0510510312, 1174517, 517615305, 1261595, 0510510304, 1261639, 0510510312, 0510510312 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3093 g |
| Dimensions | 200 × 150 × 150 mm |
| Dangerous goods | No |
You might also like

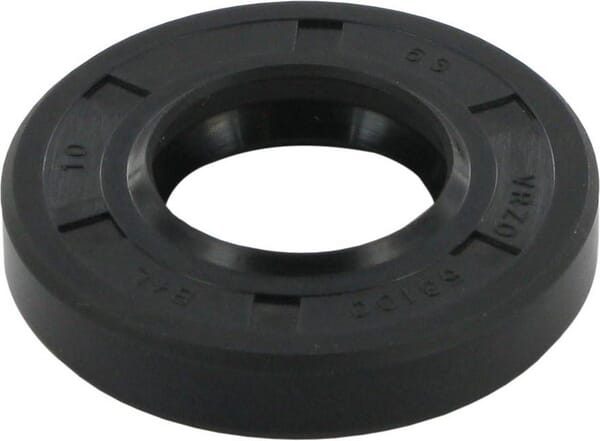

BPA000050331
Bosch Rexroth Oil seal 20x40x7mm 1510283009
£28.54 excl.
£34.25 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000219293
Bosch Rexroth Piston pump CNH 87269799 A6VE55HD263W
£4,476.71 excl.
£5,372.05 incl.
Backorder available
Usually ships within 3–8 weeks

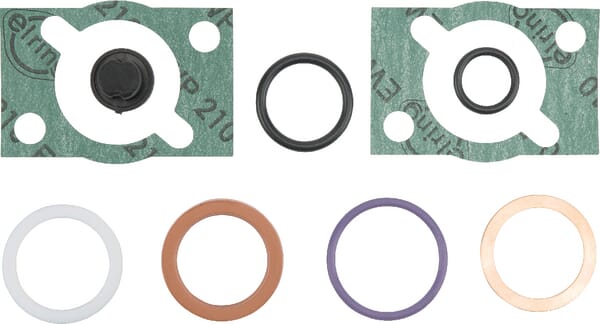

BPA000050879
Bosch Rexroth Seal kit brake valve 1537010247 1537010247
£38.58 excl.
£46.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

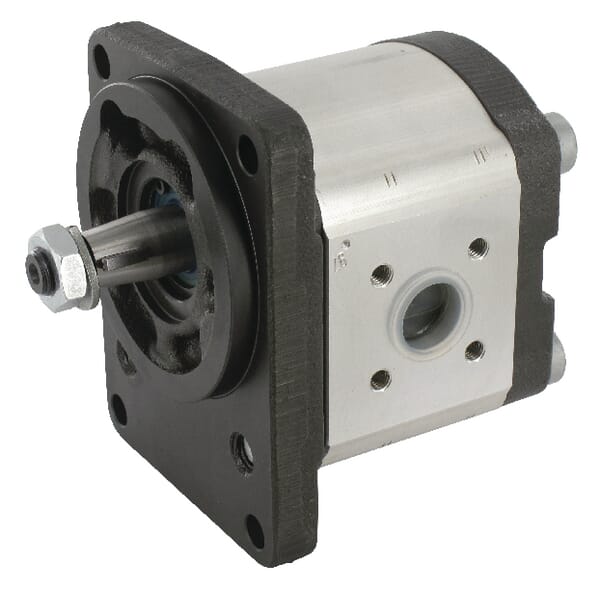

BPA000026429
Bosch Rexroth Gear pump AZPF-11-019LCB20MB 0510625314
£586.24 excl.
£703.49 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000210449
Bosch Rexroth Piston pump CNH 394268A2 A10VNO41DFR152L
£2,057.03 excl.
£2,468.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

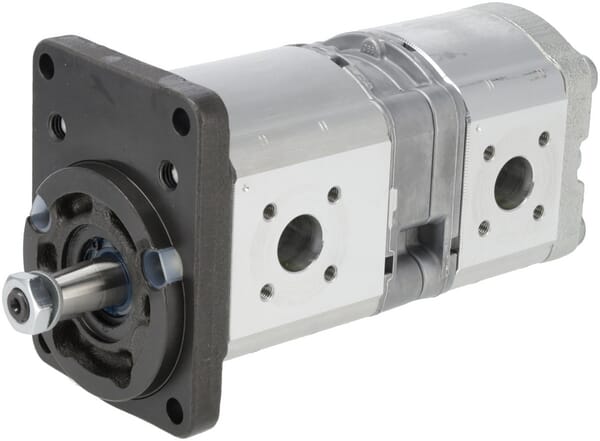

BPA000026452
