£526.84
excl. VAT
£632.21 incl. VAT
£632.21
incl. VAT
£526.84 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

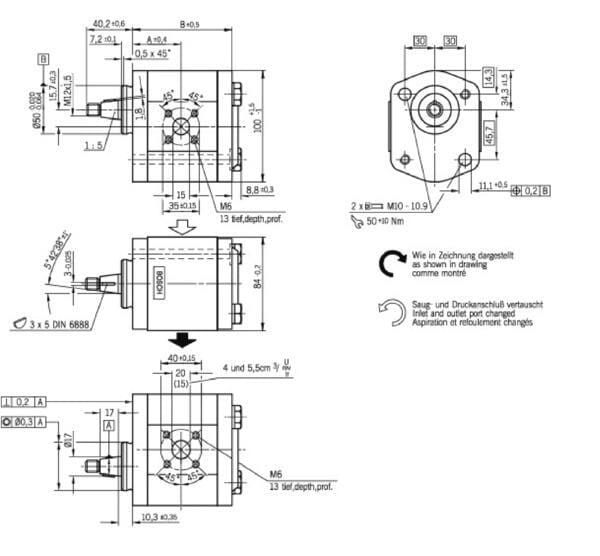

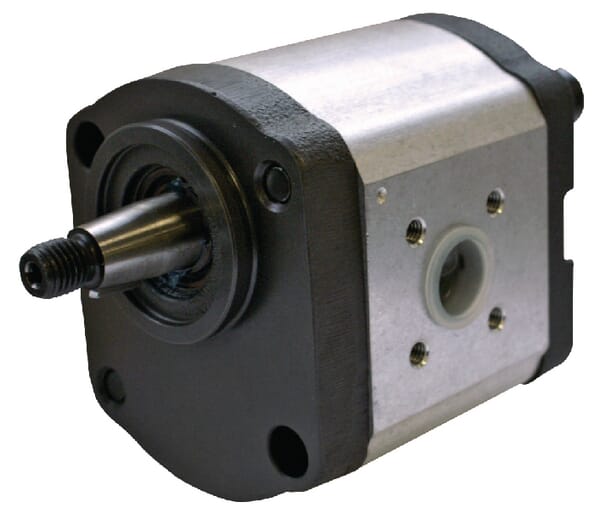

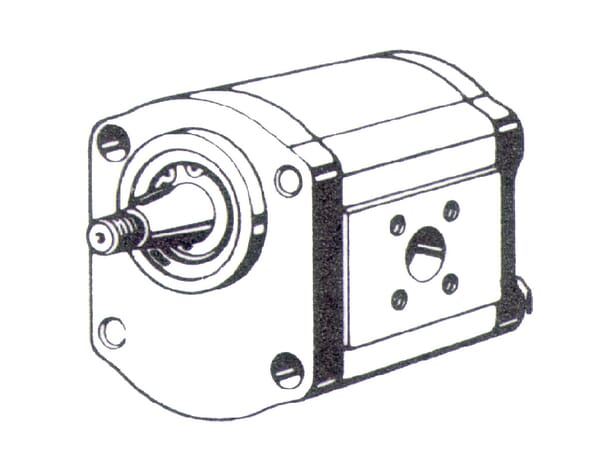

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 22.5 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 180 BAR |
| Max intermittend working pressure | 210 BAR |
| Max pressure peak | 230 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 1000 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3400 g |
| Dimensions | 145 × 100 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026464

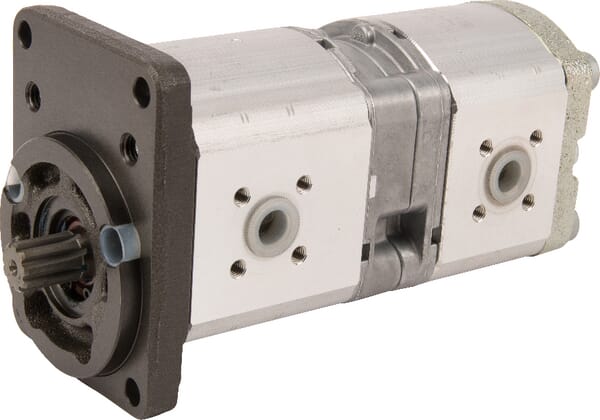

Bosch Rexroth Gear pump AZPFF-11-019/011LFB2020MB 0510665375
£573.47 excl.
£688.16 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000058932

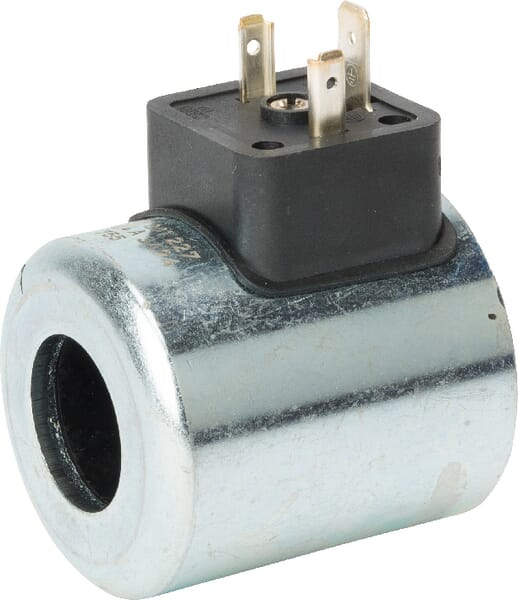

Bosch Rexroth Solenoid coil NG6 24 VDC 1837001227
£153.57 excl.
£184.28 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000026477

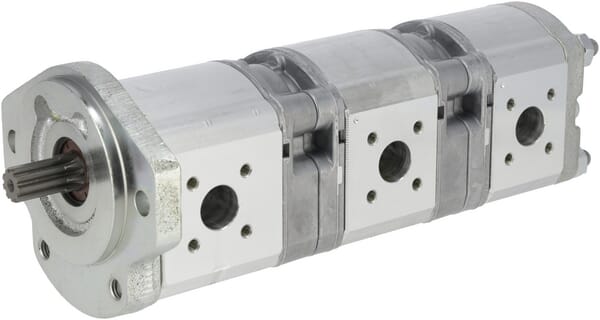

Bosch Rexroth Gearpump AZPFFF-12-016/011/008LRR202020KB 0510665492
£1,183.03 excl.
£1,419.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000219292
Bosch Rexroth Piston pump suitable for John Deere AN206098 OLD A6VE107EP163W
£7,378.94 excl.
£8,854.73 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026420

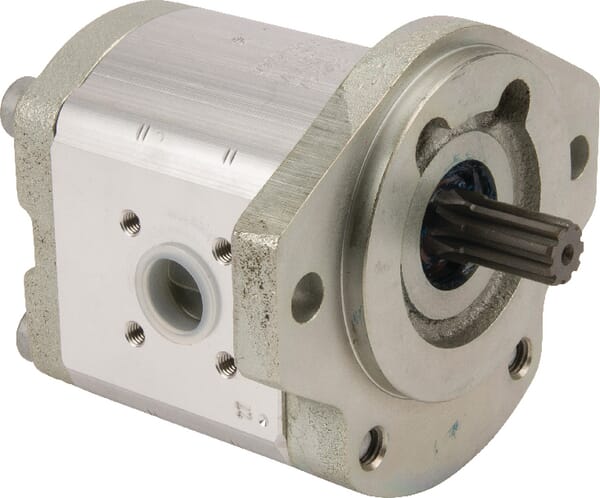

Bosch Rexroth Hydraulic pump AZPF-12-019-R 0510625029
£706.13 excl.
£847.36 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000352001
Bosch Rexroth Control valve 5/4 SB23 Electr Hydr SB23EHS23
£2,162.29 excl.
£2,594.75 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000393430
Burnett & Hillman Adaptor M/F 7/8 x 3/4 JIC VNJW1412
£6.23 excl.
£7.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000393196
Burnett & Hillman Adaptor M/F 3/8 BSP x M18 VNBMW0618
£4.44 excl.
£5.33 incl.
In stock
Expected to ship on Friday 18 September
BPA000039164

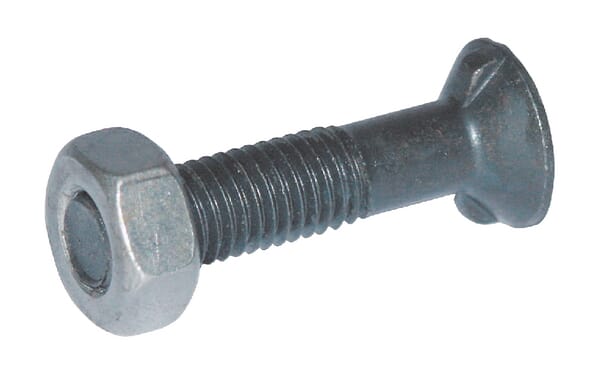

Kramp Plough bolt and nut M12x40, 2 Nib Din11014 cl. 8.8 12402N
£0.62 excl.
£0.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000065613
Kramp Oil seal 20x30x5mm type:BB DIN 3760 1x 20305BBP001
£1.80 excl.
£2.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000354103
Sabo Tire And Wheel Assembly / Bgr Achschenkel Lh, Für Saa11510 SAA12833
£22.54 excl.
£27.05 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000167606
Honda machinery parts Blade multipack 10x1 72511VH7000MP
£330.59 excl.
£396.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348829

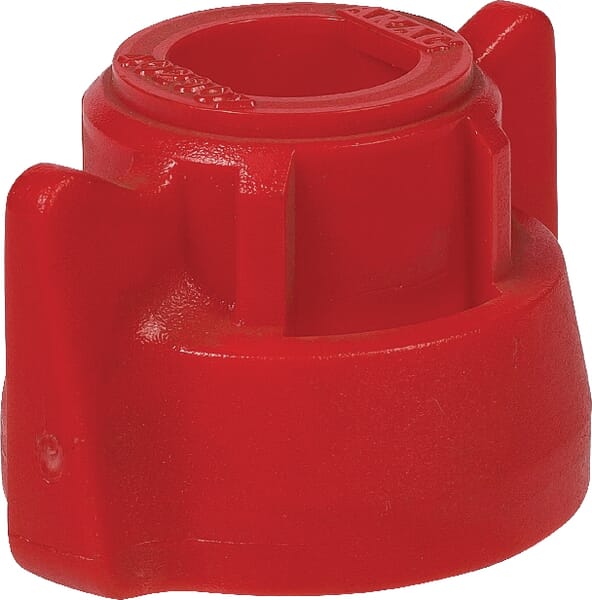

Kverneland / Rau Bayonet cap red SW11,2 AI RG00061448
