SKU BPA000026471 · Part No 0510665424

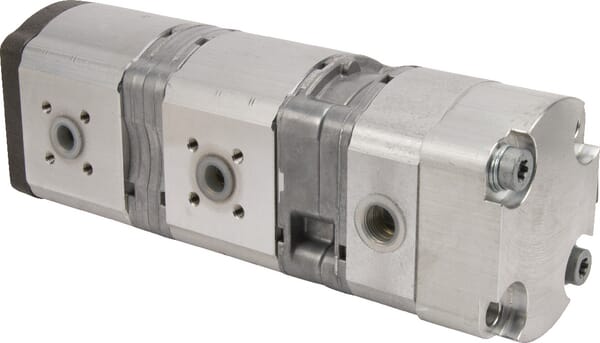

Bosch Rexroth Gear pump AZPFFF-11-016/014/008LCP2020XXMX006XX-S and 0510665424

Name: Gear pump AZPFFF-11-016/014/008LCP2020XXMX006XX-S and Bosch Rexroth
Brand: Bosch Rexroth
SKU: BPA000026471
Price: 2007.71 GBP
Availability: InStock

Displacement	16 cm³/rev, 14 cm³/rev, 8 cm³/rev
Extra info	This pump comes with a 6 bar pressure relief valve., Note; Transfer 20 bar pressure relief valve from old pump or order separately.
Flange and back cover material	Cast iron
Flange code	P
Flange type norm	German
Housing material	Aluminium
Max. continous working pressure	250 BAR, 250 BAR, 6 BAR
Mounting diameter	50 mm
Mounting holes horizontal distance	60 mm
Mounting holes vertical distance	60 mm
Number of mounting holes	2
Original number equivalent	G117941010010
Port position	Side
Pressure port bolts circle diameter	35 mm
Product details	Outer housing with bearings, Compact construction type, Mobile applications, Industrial applications, Combinations of multiple pumps possible, Customer-specific design possible
Pros	Suitable for heavy-duty conditions, Small installation space
Pump group code	2
Rotation direction	Counter-clockwise (CCW)
Sealing type	Standard
Shaft cone size code	1:5
Shaft diameter	17 mm
Shaft thread diameter	M12
Shaft thread pitch	1.50 mm
Shaft thread type	Metric
Shaft type	Tapered 1:5
Shaft type code	C
Suction port bolts circle diameter	40 mm
Unit	Each

EAN	—
Unit of measure	EA
Weight	6336 g
Dimensions	271 × 100 × 90 mm
Dangerous goods	No

Bosch Rexroth Gear pump AZPFFF-11-016/014/008LCP2020XXMX006XX-S and 0510665424
