£751.06
excl. VAT
£901.27 incl. VAT
£901.27
incl. VAT
£751.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 80 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | B2 |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 1200 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4128 g |
| Dimensions | 330 × 240 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026354
Bosch Rexroth Gear pump AZPF-12-014LNM20MD100XX 0510515352
£831.68 excl.
£998.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000219437
Bosch Rexroth Axial piston motor CNH 84168176 AA2FM10761W
£3,902.30 excl.
£4,682.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026382
Bosch Rexroth Hydraulic pump AZPF-12-011-L 0510525385
£534.04 excl.
£640.85 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000352000

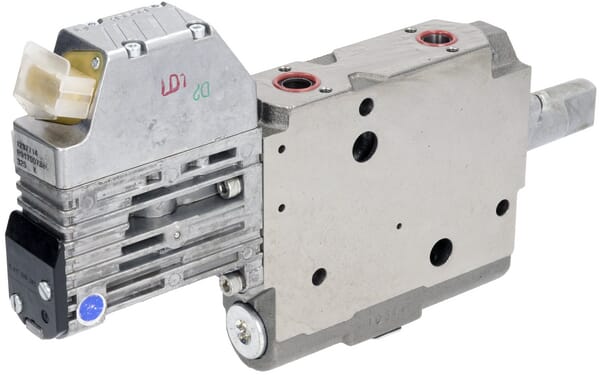

Bosch Rexroth Control valve 5/4 SB23 Electr Hydr SB23EHS22
£1,679.25 excl.
£2,015.10 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026381

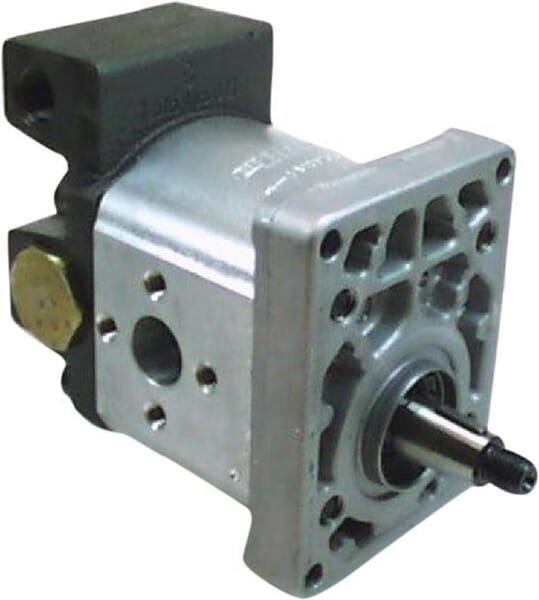

Bosch Rexroth Gear pump AZPF-10-014-L 0510525360
