Product details
| Application range | Grip, excavator and crane shovels |
|---|---|

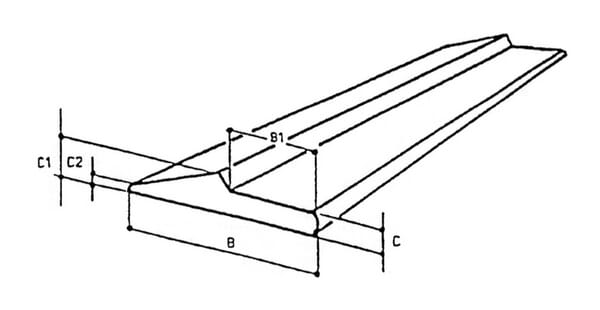

| B1Welded part width | 127 mm |
| BEdge strip total width | 200 mm |
| Benefits | Long service life, Easy to replace |
| C1Thickness | 32 mm |
| C2Min. working thickness | 4.6 mm |
| CMounting height | 19 mm |
| Details | Wear resistant, Full welding on front, "chain welding" on reverse |
| Edge strip total length | 3000 mm |
| Hardness HB | 500 |
| Technical info | 500 HB steel can be welded either electrically or using the MIG/MAG process. It is extremely important that the material to be welded is pre-heated to between 50 and 75°C and that the welded material is cooled in a controlled manner, For electric welding: an alkaline welding rod is recommended, but a standard welding rod can also be used, MIG/MAG: SG3 wire is recommended, but a standard SG2 wire can also be used |
| Unit | Each |
| Weight | 91.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 94000 g |
| Dimensions | 3000 × 200 × 25 mm |
| Dangerous goods | No |
