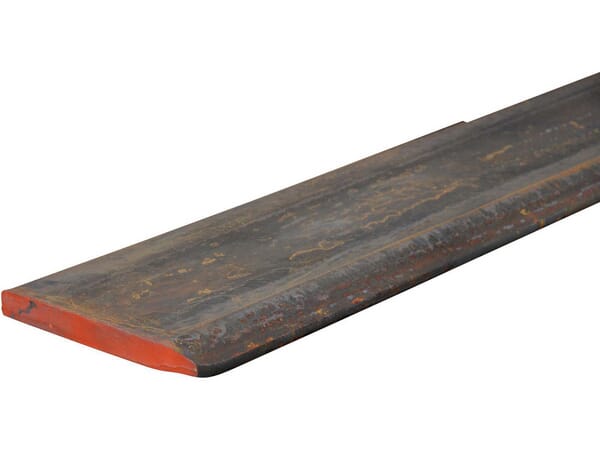

Product details
| Application range | Excavator shovel, crane shovel and front loader shovel |
|---|---|
| B1Sloping horizontal width | 20 mm |
| BEdge strip total width | 100 mm |
| Benefits | Long service life |
| C1Min. working thickness | 4 mm |
| CThickness | 13 mm |
| Details | Extremely wear resistant rolled steel |
| Edge strip total length | 2438 mm |
| Hardness HB | 470 |
| Technical info | Electrical welding as well as MIG/MAG welding, The material to be welded must first be heated to a temperature between 50° and 75°C, and must be cooled in a controlled manner, Electrical: a basic welding rod is recommended, but a standard welding rod can also be used, MIG-MAG: SG3 wire is recommended, but standard SG2 wire can also be used |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 23000 g |
| Dimensions | 2438 × 110 × 12 mm |
| Dangerous goods | No |
