Product details
| Application range | Excavator shovel, crane shovel and front loader shovel |
|---|---|

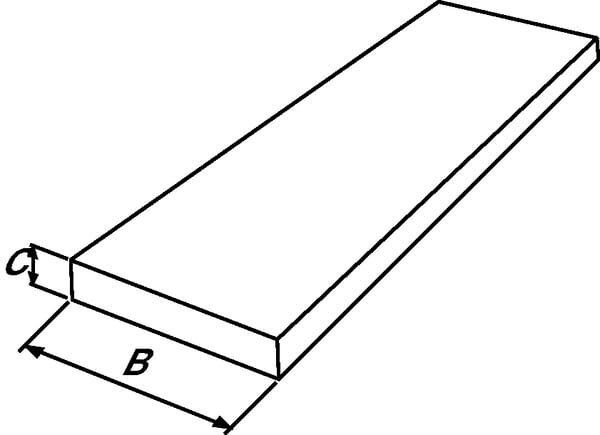

| BEdge strip total width | 80 mm |
| Benefits | Long service life |
| CThickness | 10 mm |
| Details | Wear resistant |
| Edge strip total length | 3000 mm |
| Hardness HB | 500 |
| Long description | Application:, Excavator shovel, crane shovel and front loader shovel, Benefits:, Long service life, Details:, Wear resistant, Technical information:, 500 HB steel can be welded either electrically or using the MIG/MAG process. It is extremely important that the material to be welded is pre-heated to between 50 and 75°C and that the welded material is cooled in a controlled manner, For electric welding: an alkaline welding rod is recommended, but a standard welding rod can also be used, MIG/MAG: SG3 wire is recommended, but a standard SG2 wire can also be used |
| Technical info | 500 HB steel can be welded either electrically or using the MIG/MAG process. It is extremely important that the material to be welded is pre-heated to between 50 and 75°C and that the welded material is cooled in a controlled manner, For electric welding: an alkaline welding rod is recommended, but a standard welding rod can also be used, MIG/MAG: SG3 wire is recommended, but a standard SG2 wire can also be used |
| Unit | Each |
| Weight | 36 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19000 g |
| Dimensions | 3000 × 80 × 10 mm |
| Dangerous goods | No |
