£5.18
excl. VAT
£6.22 incl. VAT
£6.22
incl. VAT
£5.18 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 11/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 380 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request, Male thread BSP with cone 60°, Female thread gland ORFS |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 57 g |
| Dimensions | 35 × 24 × 24 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000372298

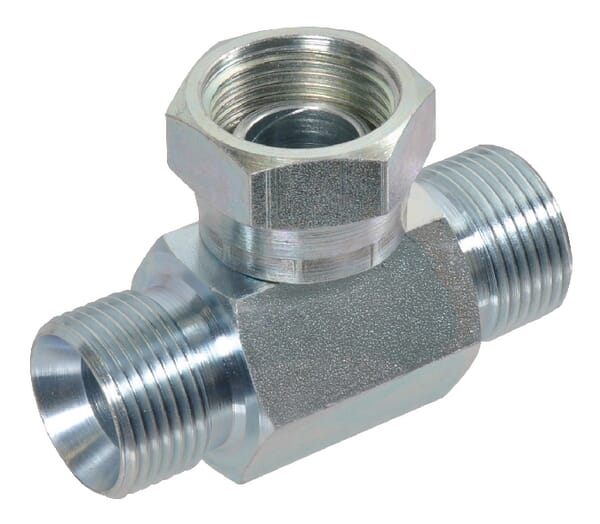

Burnett & Hillman T piece M/F/M 2 BSP TMFM32
£280.98 excl.
£337.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000321546

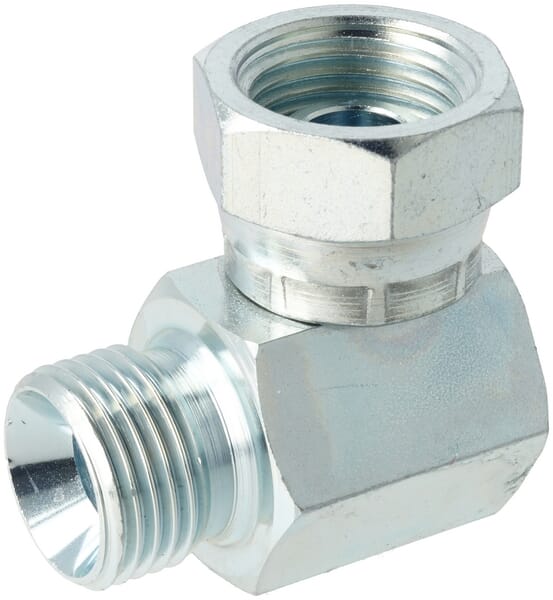

Burnett & Hillman Compact elbow M/F 1/2 BSP MF9008K
