£9.61
excl. VAT
£11.53 incl. VAT
£11.53
incl. VAT
£9.61 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Connection 1, thread diameter | 3/4 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-3/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 280 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request, Male thread BSP with cone 60°, Female thread gland ORFS |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 222 g |
| Dimensions | 67 × 35 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000396033
Burnett & Hillman Adaptor M/F 1 1/2 BSP VRB24
£38.58 excl.
£46.30 incl.
In stock
Expected to ship on Friday 18 September
BPA000338431

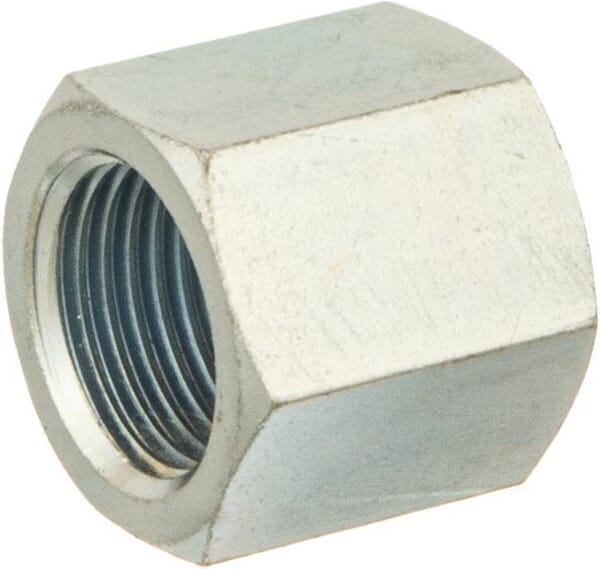

Burnett & Hillman Cap 1/2" BSP PF08C
£4.00 excl.
£4.80 incl.
In stock
Expected to ship on Monday 21 September
BPA000396028
Burnett & Hillman Adaptor M/F 1 1/4 BSP VRB20
£18.67 excl.
£22.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000316195
Burnett & Hillman Swept elbow M/M 3/8 BSP MM4506B
£8.82 excl.
£10.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000393406
Burnett & Hillman Bulkhead M/M 7/16 JIC VNJS07
£12.13 excl.
£14.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000393133

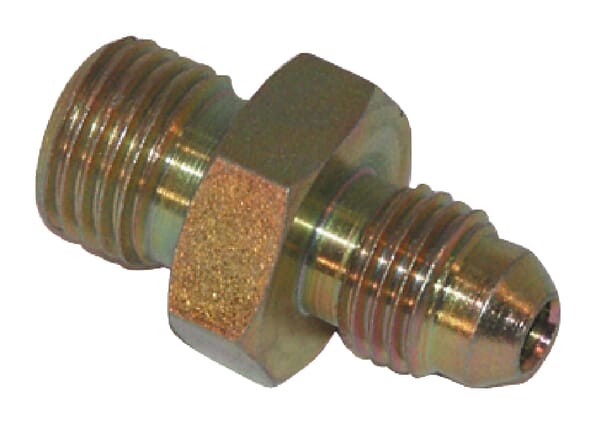

Burnett & Hillman Adaptor M 1 BSP x 7/8 JIC VNBJ1614
