£10.82
excl. VAT
£12.98 incl. VAT
£12.98
incl. VAT
£10.82 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Connection 1, thread diameter | 3/4 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-7/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 280 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request, Male thread BSP with cone 60°, Female thread gland ORFS |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 310 g |
| Dimensions | 58 × 43 × 43 mm |
| Dangerous goods | No |
You might also like
BPA000393273

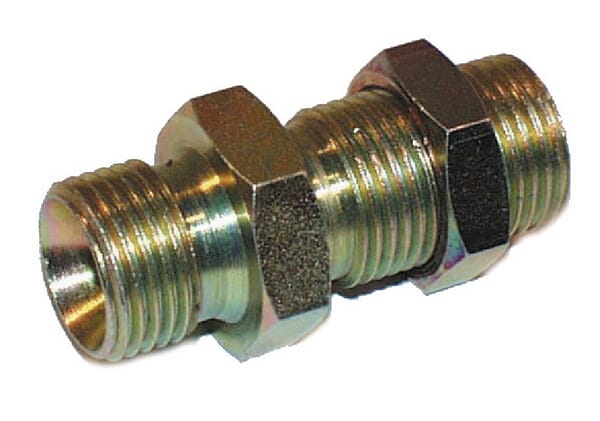

Burnett & Hillman Bulkhead M/M 1-1/4 BSP VNBS20
£27.93 excl.
£33.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000349272

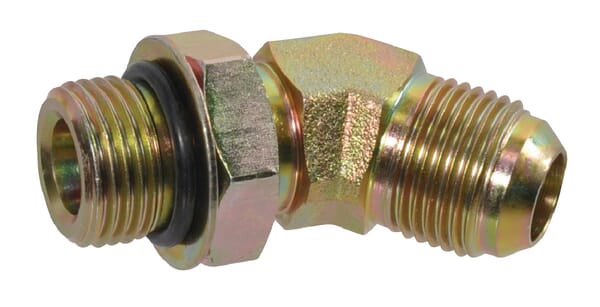

Burnett & Hillman Elbow M/M 1/2 JIC x 1/2 UNF RIU4508
£13.25 excl.
£15.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000385398

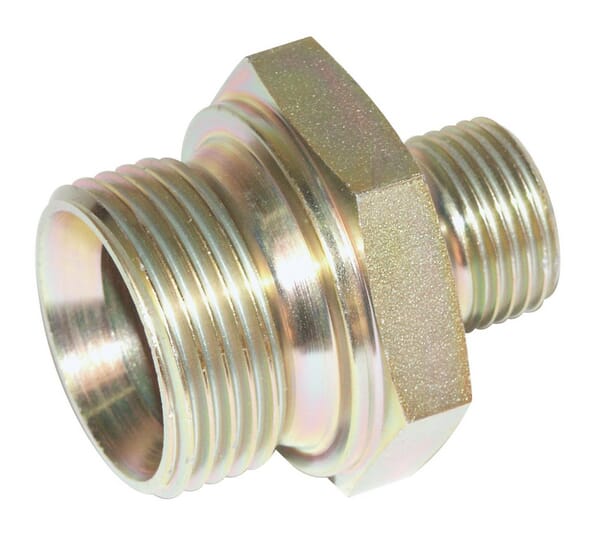

Burnett & Hillman Adaptor M 1x5/8 BSP VNB1610
£7.78 excl.
£9.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000321538

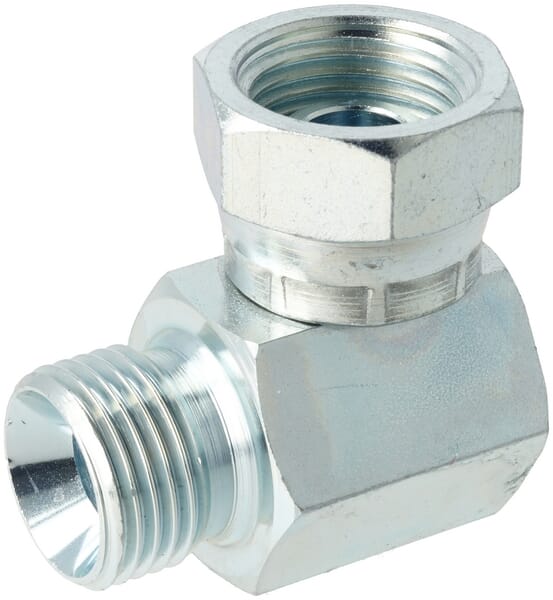

Burnett & Hillman Compact elbow M/F 1/4 BSP MF9004K
£3.57 excl.
£4.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000349240

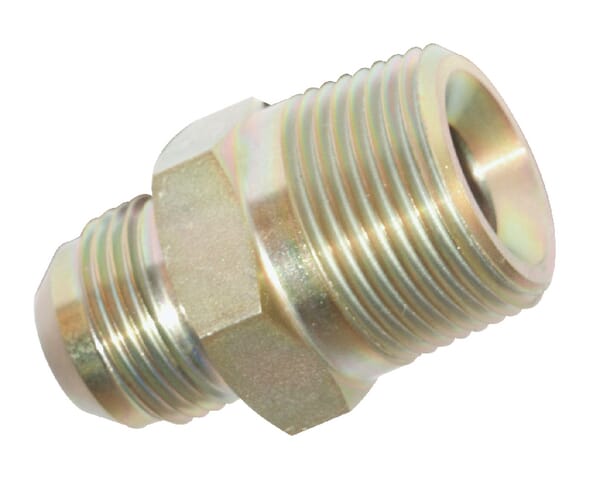

Burnett & Hillman Male stud 3/4 JIC x 3/4 NPT RIN1212
£6.13 excl.
£7.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000393178

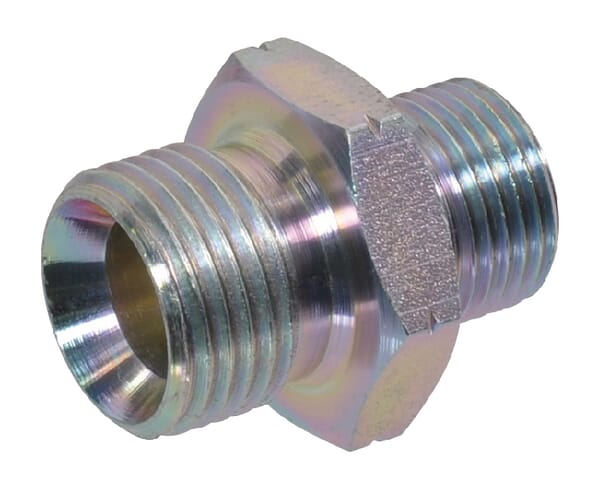

Burnett & Hillman Adaptor M/M 3/4 BSP x M20 VNBM1220
