£13.25
excl. VAT
£15.90 incl. VAT
£15.90
incl. VAT
£13.25 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

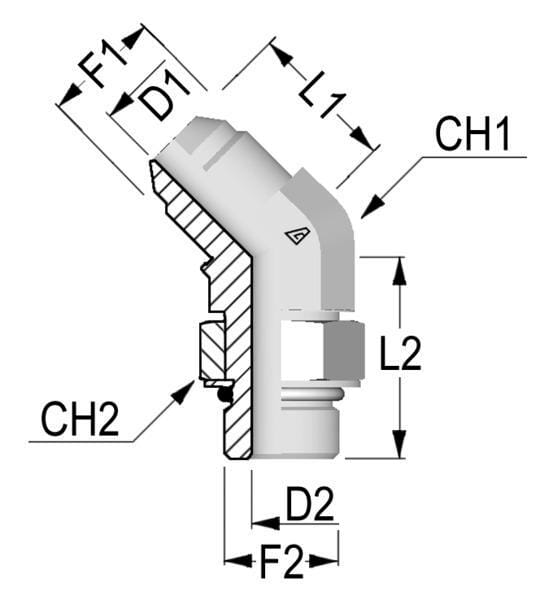

| Connection 1, thread diameter | 1/2 Inch |
|---|---|
| Connection 1, thread type | JIC |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 21.5 mm |
| Connection 2, thread type | UNF |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 5/16 Inch |
| Connection no 1 wrench size | 13.0 mm |
| Connections distance | 27.5 mm |
| Max working pressure | 380 BAR |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37° cone side is UNF in accordance with ANSI, Screw-in couplings, Adjustable, 45° |
| Series connection 1 | n/a |
| Shape | Elbow 45° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 39 g |
| Dimensions | 138 × 45 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000269935
Burnett & Hillman Adaptor F/F 3/8 BSP x M18 FFBM0618
£8.80 excl.
£10.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000236083
Burnett & Hillman Adaptor Male/Male, 1/2" BSP with orifice Ø 3.0 mm BM08R30
£5.90 excl.
£7.08 incl.
In stock
Expected to ship on Friday 18 September

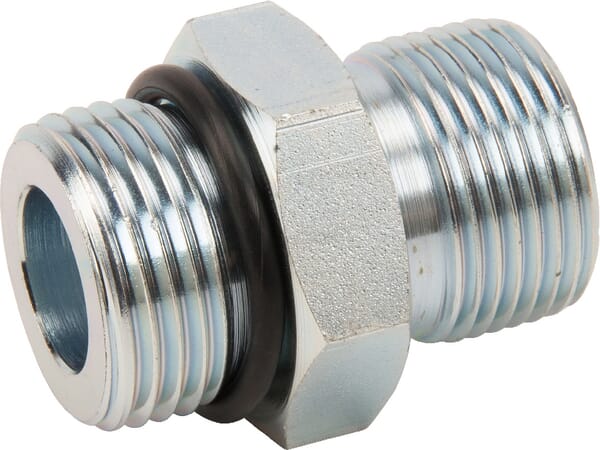

BPA000389016
Burnett & Hillman Adaptor 3/4 BSPx1.1/16 UNF VNUB1712
£5.41 excl.
£6.49 incl.
In stock
Expected to ship on Friday 18 September

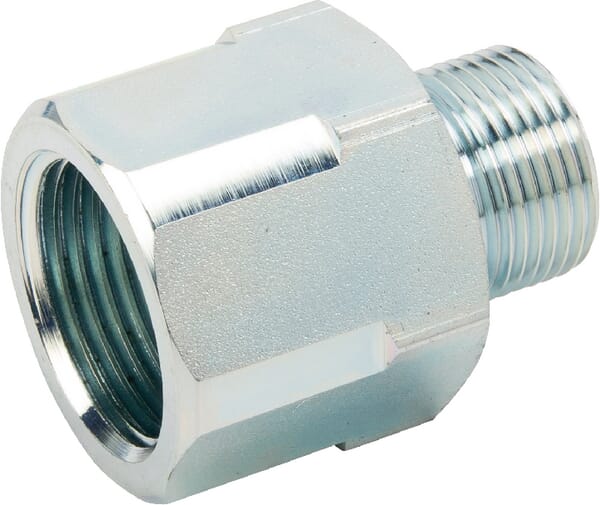

BPA000396021
Burnett & Hillman Adaptor M/F VRB1606
£6.87 excl.
£8.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000321551
Burnett & Hillman Adaptor-90 3/4 JIC MF9012JB
£10.20 excl.
£12.24 incl.
Backorder available
Usually ships within 3–8 weeks

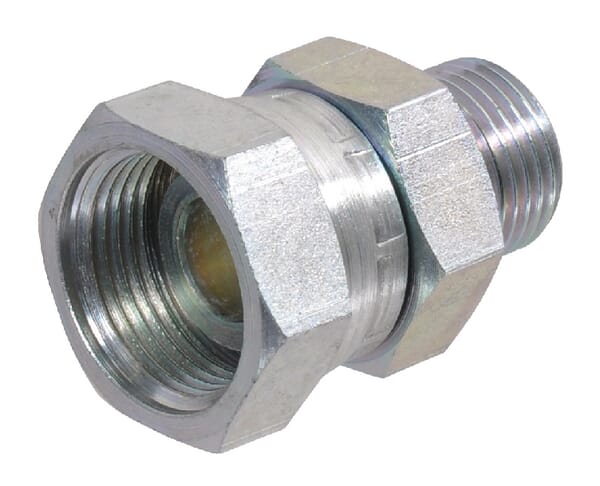

BPA000393308
