£4.19
excl. VAT
£5.03 incl. VAT
£5.03
incl. VAT
£4.19 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Cone angle side 1 | 60 ° |
|---|---|
| Connection 1, thread diameter | 3/8 Inch |
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, thread type | JIC |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Material | Steel |
| Max working pressure | 310 BAR |
| Product details | Connection: BSP male / JIC gland., Applied in combination with nipples with counter-cone 60° and 74°., Material: Steel., Seal: by means of 60° cone (BSP) and 74° cone (JIC)., Standard: In accordance with BS 2779: 1986 Class B, JIC in accordance with BS1580., Surface treatment: Zinc-plated |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 43 × 24 × 24 mm |
| Dangerous goods | No |
You might also like
BPA000393180
Burnett & Hillman Coupling M/M 3/4 BSP x M22 VNBM1222ISO6149
£31.55 excl.
£37.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000396050

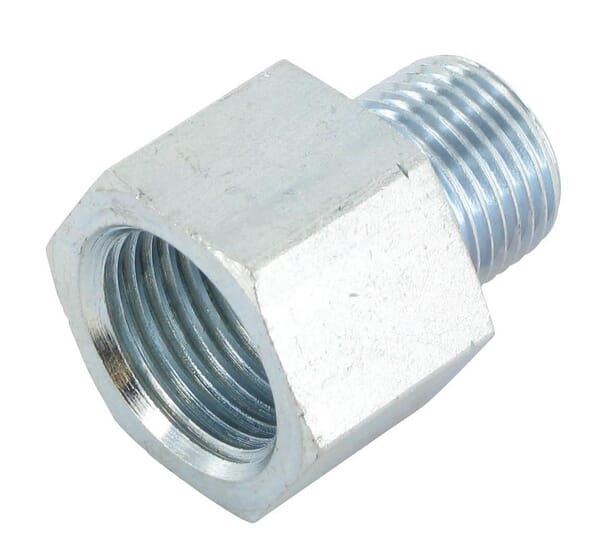

Burnett & Hillman Adaptor M/F 1/2 BSP 1/2 NPT VRBN0808
£11.11 excl.
£13.33 incl.
In stock
Expected to ship on Friday 18 September
BPA000349259
Burnett & Hillman Male stud 3/4 JIC x 7/8 UNF RIU1214
£4.50 excl.
£5.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000393333
Burnett & Hillman Adaptor 3/4 x 1/4 BSP VNBW1204
£8.33 excl.
£10.00 incl.
In stock
Expected to ship on Friday 18 September
BPA000393425
Burnett & Hillman Adaptor 3/4 x 1/2 UNF VNJW1208
£31.43 excl.
£37.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000298692

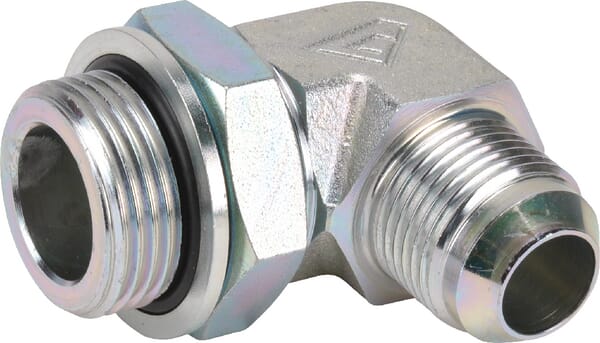

Burnett & Hillman Elbow coupling KIB1204
