£7.34
excl. VAT
£8.81 incl. VAT
£8.81
incl. VAT
£7.34 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

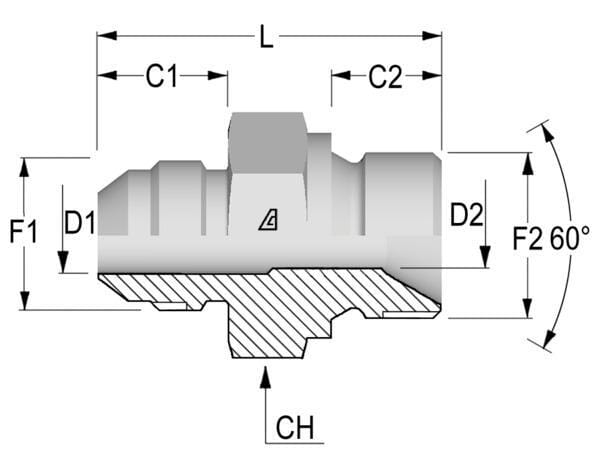

| C1Connection no 1 length | 23.13 mm |
|---|---|
| C1Connection no 1 thread length | 15.5 mm |
| CHConnection no 1 wrench size | 34.9 mm |
| Connection 1, thread diameter | 1-5/16 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 34.9 mm |
| Connection centre to insert distance | 53 mm |
| Inside diameter side 1 | 16.7 mm |
| Inside diameter side 2 | 21.4 mm |
| Max working pressure | 210 BAR |
| Pipe diameter | 1 Inch |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 168 g |
| Dimensions | 53 × 41 × 63 mm |
| Dangerous goods | No |
You might also like
BPA000393275

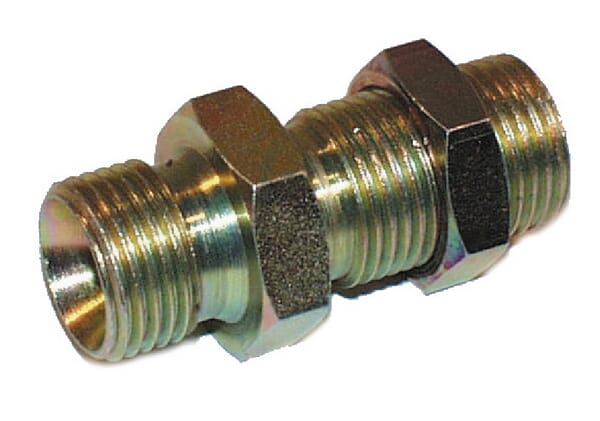

Burnett & Hillman Bulkhead M/M 2 BSP VNBS32
£79.65 excl.
£95.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000374401
Burnett & Hillman L-stud F/M/M 5/8 BSP TFMM10
£16.07 excl.
£19.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000349155

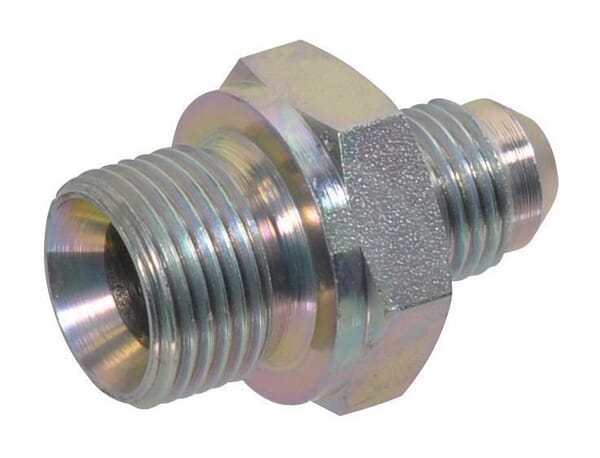

Burnett & Hillman Male stud 1-1/16 JIC x 3/4 BSP RIB1712
£4.40 excl.
£5.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000393150

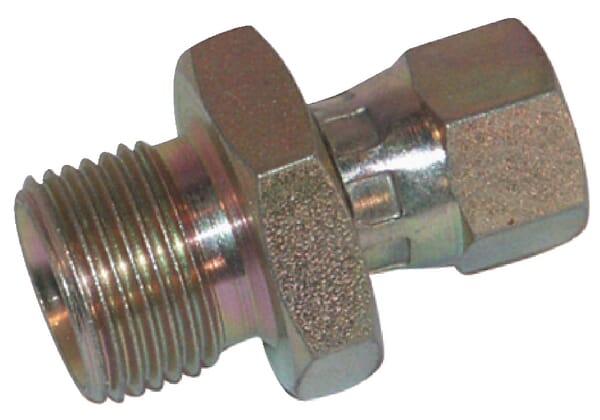

Burnett & Hillman Adaptor M/F 3/4 BSP x 7/8 JIC VNBJW1214
£7.23 excl.
£8.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000367370

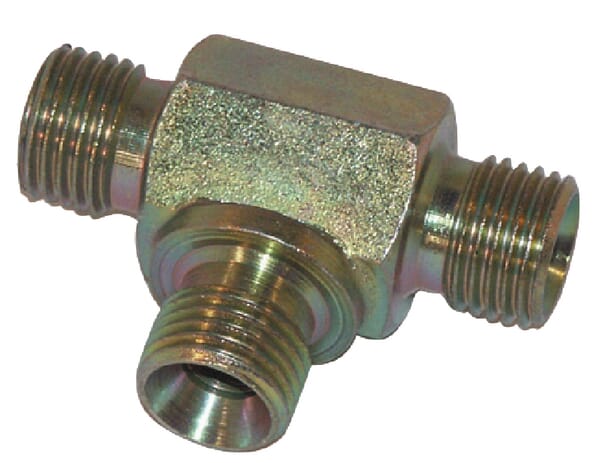

Burnett & Hillman T piece M 3/4 BSP T12MBH
£14.20 excl.
£17.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000316219

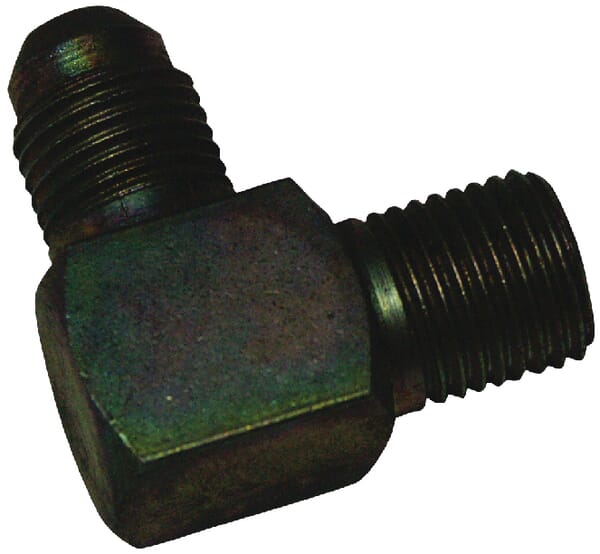

Burnett & Hillman Compact elbow M 1/2BSPx3/4JIC MM9008J12K
