£18.46
excl. VAT
£22.15 incl. VAT
£22.15
incl. VAT
£18.46 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| C1Connection no 1 length | 24.33 mm |
|---|---|
| C1Connection no 1 thread length | 20 mm |
| CHConnection no 1 wrench size | 50.0 mm |
| Connection 1, thread diameter | 1-5/8 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/4 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection centre to insert distance | 59 mm |
| Inside diameter side 1 | 28.6 mm |
| Inside diameter side 2 | 27.4 mm |
| Max working pressure | 125 BAR |
| Pipe diameter | 1/2 Inch |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 340 g |
| Dimensions | 64 × 57 × 57 mm |
| Dangerous goods | No |
You might also like
BPA000385398

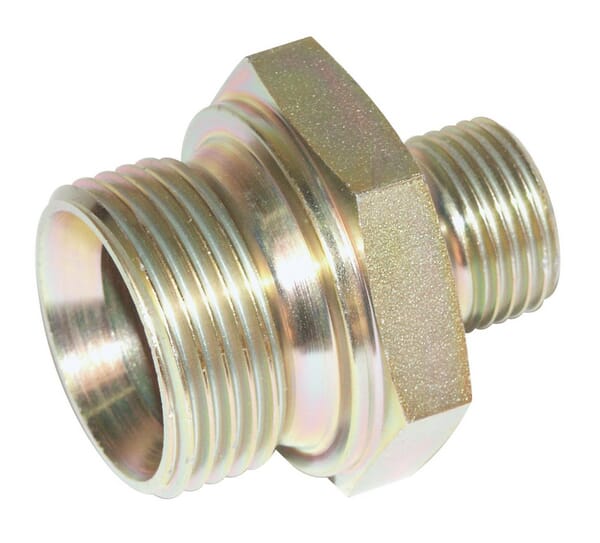

Burnett & Hillman Adaptor M 1x5/8 BSP VNB1610
£7.78 excl.
£9.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393397

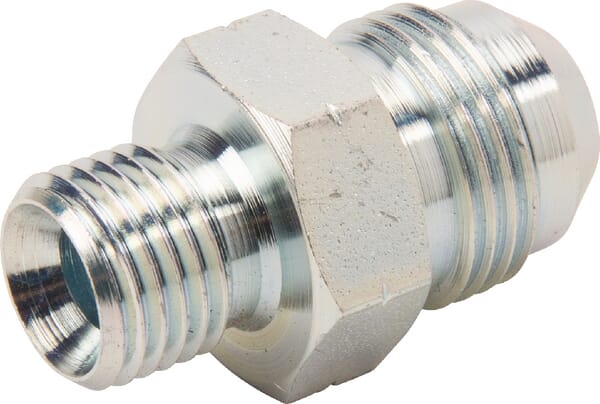

Burnett & Hillman Adaptor 3/4JIC-M14 VNJM1214
£6.05 excl.
£7.26 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000404939
Burnett & Hillman Reducer bush 1/2 x 1/4 BSP ZB0804
£4.58 excl.
£5.50 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393341
Burnett & Hillman Adaptor 3/4 x 1-1/2 BSP VNBW1224
£31.46 excl.
£37.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000269937

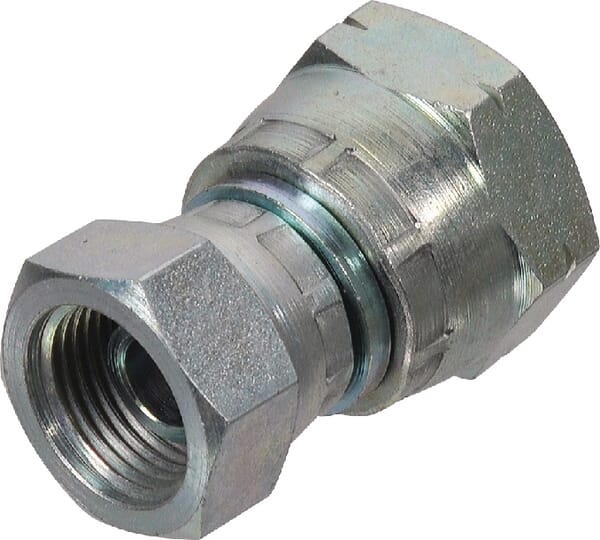

Burnett & Hillman Adaptor F/F 3/8 BSP x M22 FFBM0622
