£28.74
excl. VAT
£34.49 incl. VAT
£34.49
incl. VAT
£28.74 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| C1Connection no 1 length | 27.5 mm |
|---|---|
| C1Connection no 1 thread length | 21.5 mm |
| CHConnection no 1 wrench size | 55.0 mm |
| Connection 1, thread diameter | 1-7/8 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/2 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 55.0 mm |
| Connection centre to insert distance | 63.9 mm |
| Connection no 1 diameter | 38 mm |
| Inside diameter side 1 | 33.3 mm |
| Inside diameter side 2 | 33.3 mm |
| Max working pressure | 125 BAR |
| Pipe diameter | 1/2 Inch |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 447 g |
| Dimensions | 78 × 76 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000338979

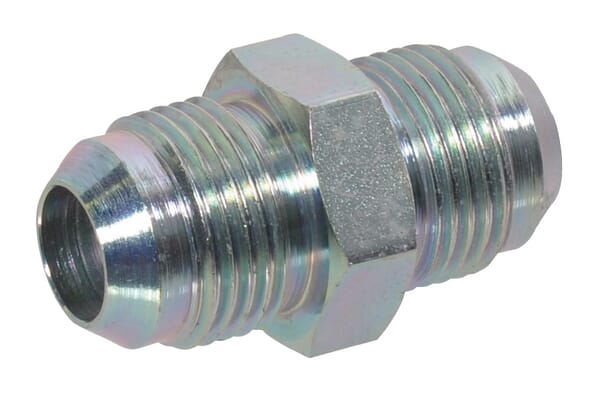

Burnett & Hillman Adaptor M/M 1-5/8 JIC R26TB
£15.23 excl.
£18.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236072
Burnett & Hillman Adaptor M/M 3/8 BSPT BM06BMT06
£2.48 excl.
£2.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393174
Burnett & Hillman Adaptor M/M 1/2 BSP x M24 VNBM0824
£4.29 excl.
£5.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393227
Burnett & Hillman Adaptor M 1/2 BSP x 3/4 NPT VNBN0812
£4.76 excl.
£5.71 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000301124

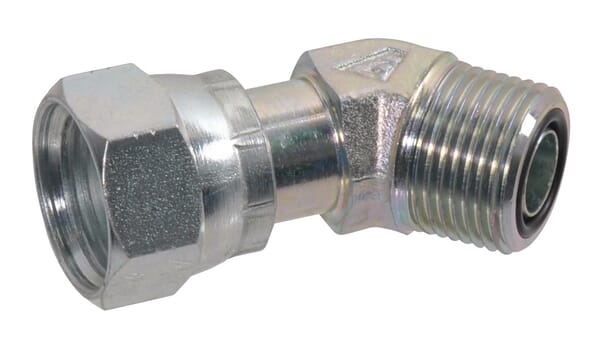

Burnett & Hillman Elbow 1" ORFS male/female 45° KOO4516
£17.48 excl.
£20.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000396028

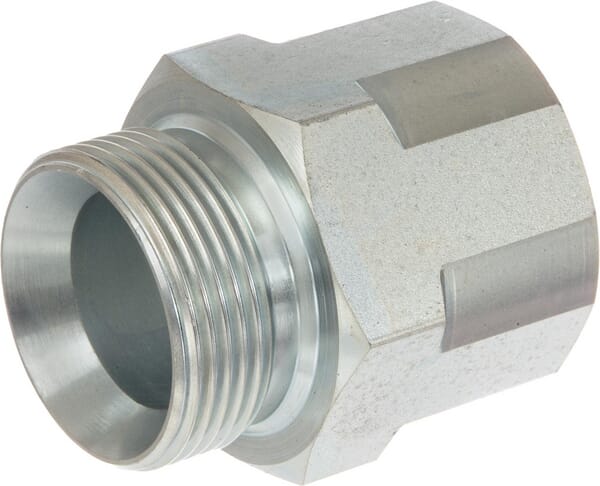

Burnett & Hillman Adaptor M/F 1 1/4 BSP VRB20
