£2.72
excl. VAT
£3.26 incl. VAT
£3.26
incl. VAT
£2.72 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

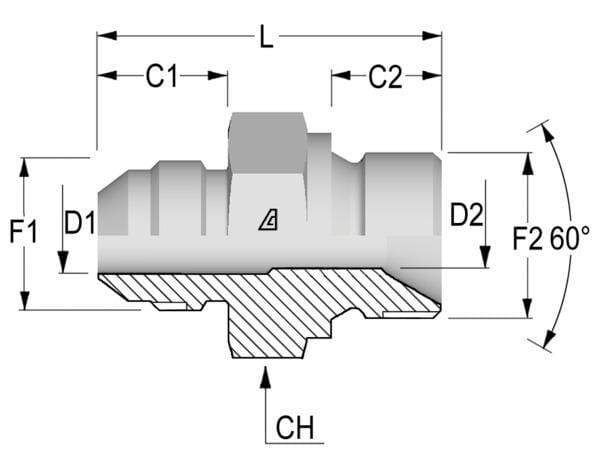

| C1Connection no 1 length | 16.68 mm |
|---|---|
| CHConnection no 1 wrench size | 27.0 mm |
| Connection 1, thread diameter | 3/4 Inch |
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection centre to insert distance | 42 mm |
| Connection no 1 diameter | 12 mm |
| Inside diameter side 1 | 11.1 mm |
| Inside diameter side 2 | 9.9 mm |
| Max working pressure | 310 BAR |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 75 g |
| Dimensions | 50 × 30 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000236076
Burnett & Hillman Adaptor Male/Male, 3/8" BSP with orifice Ø 0.8 mm BM06R08
£5.21 excl.
£6.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000393131
Burnett & Hillman Adaptor M 3/4 BSP x 1-5/16 JIC VNBJ1221
£8.36 excl.
£10.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000269860
Burnett & Hillman Swept elbow F/F 1/2BSP 45° FF4508B
£9.92 excl.
£11.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396112

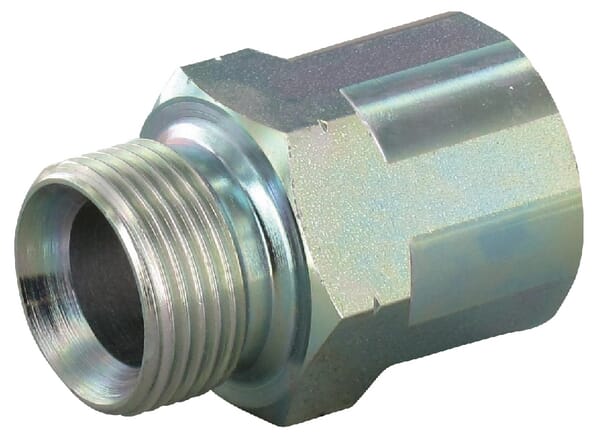

Burnett & Hillman Adaptor M/FF M22 x M16 VRM2216
£10.48 excl.
£12.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000349232
Burnett & Hillman Adaptor RIN0802
£1.31 excl.
£1.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000393398

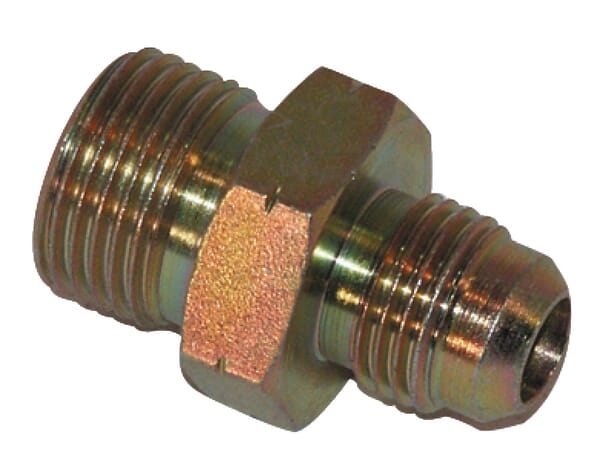

Burnett & Hillman Adaptor M/M 3/4 JIC x M20 VNJM1220
