£3.05
excl. VAT
£3.66 incl. VAT
£3.66
incl. VAT
£3.05 excl. VAT
In stock
Expected to ship on Monday 21 September

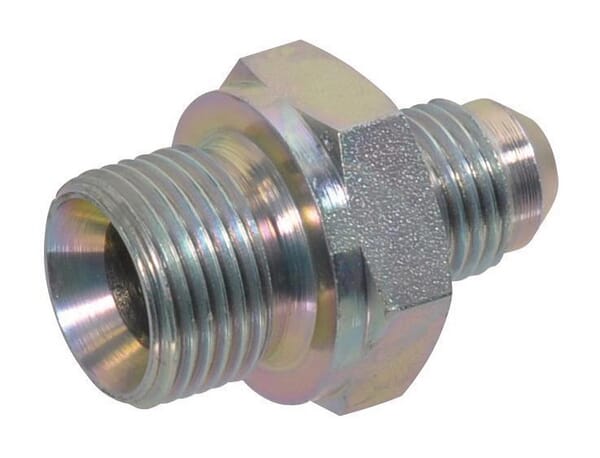

Product details
| C1Connection no 1 length | 14.12 mm |
|---|---|
| C1Connection no 1 thread length | 14 mm |
| CHConnection no 1 wrench size | 27.0 mm |
| Connection 1, thread diameter | 9/16 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection centre to insert distance | 37 mm |
| Connection no 1 diameter | 10 mm |
| Inside diameter side 1 | 11.1 mm |
| Inside diameter side 2 | 7.5 mm |
| Max working pressure | 345 BAR |
| Pipe diameter | 3/8 Inch |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 38 × 31 × 27 mm |
| Dangerous goods | No |
You might also like

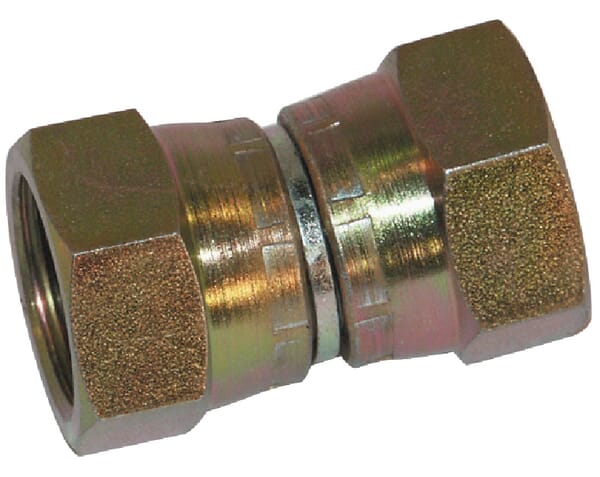

BPA000269926
Burnett & Hillman Adaptor F/F 1/2x9/16 BSP/JIC FFBJ0809
£6.16 excl.
£7.39 incl.
In stock
Expected to ship on Monday 21 September

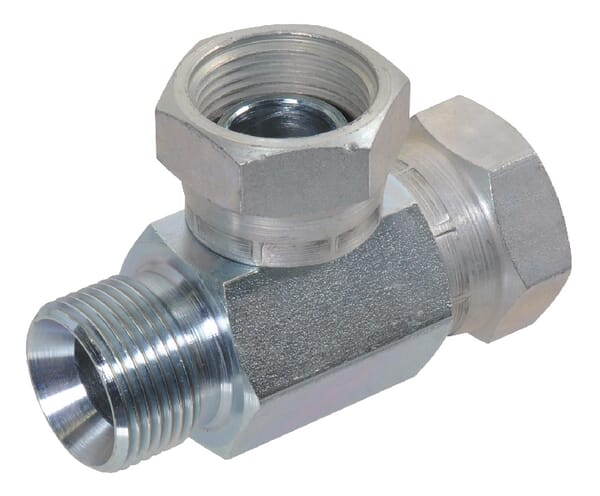

BPA000374384
Burnett & Hillman L-stud F/M/F 1/4 BSP TFFM04
£10.85 excl.
£13.02 incl.
In stock
Expected to ship on Monday 21 September
BPA000393446

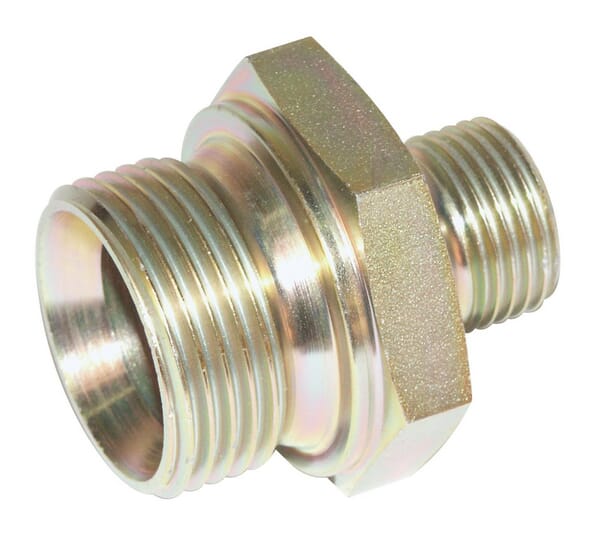

Burnett & Hillman Adaptor M M16 x M14 VNM1614
£3.77 excl.
£4.52 incl.
Backorder available
Usually ships within 3–8 weeks

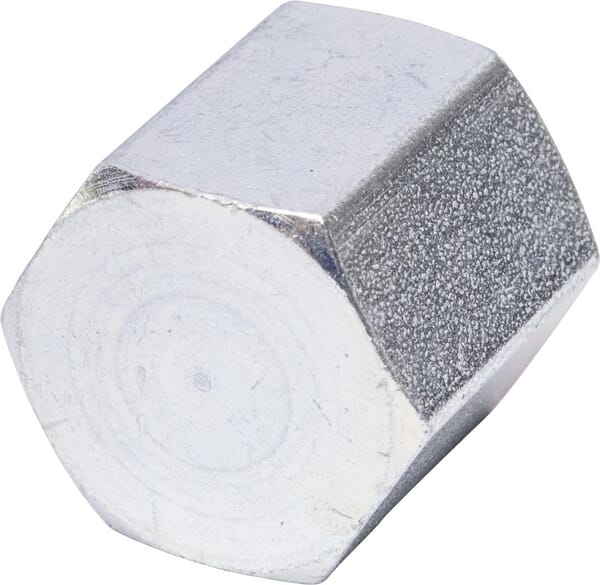

BPA000338463
Burnett & Hillman Cap 3/4" BSP PF12C
£9.76 excl.
£11.71 incl.
In stock
Expected to ship on Monday 21 September

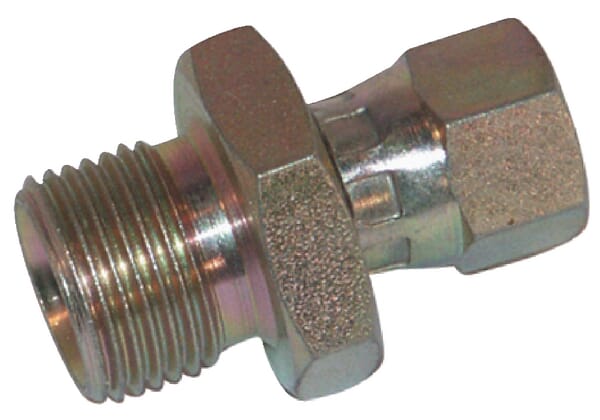

BPA000393141
Burnett & Hillman Adaptor M/F 3/8 BSP x 7/16 JIC VNBJW0607
£4.46 excl.
£5.35 incl.
In stock
Expected to ship on Monday 21 September

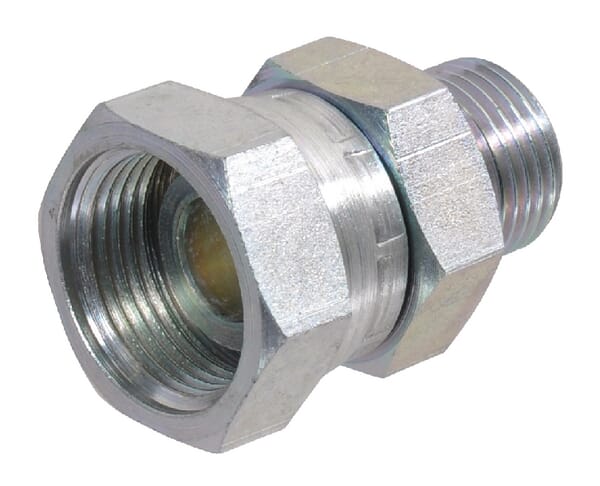

BPA000393332
