£12.96
excl. VAT
£15.55 incl. VAT
£15.55
incl. VAT
£12.96 excl. VAT
In stock
Expected to ship on Friday 18 September
About this product

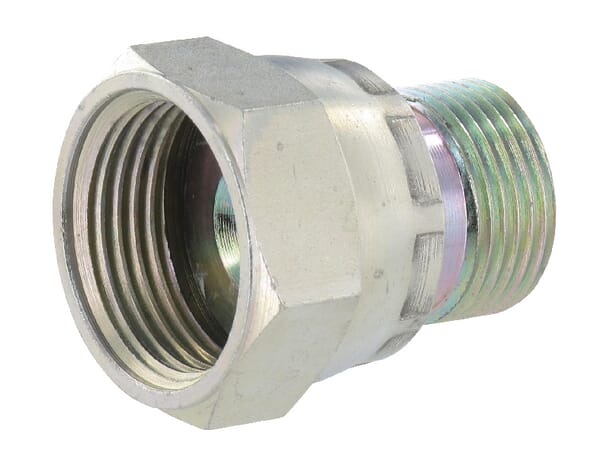

A straight ORFS (O-Ring Face Seal) adaptor nipple connecting a 1 inch male ORFS thread to a 1-3/16 inch female ORFS swivel nut, sold as a single piece. The adaptor is manufactured from zinc-plated steel and conforms to SAE J1453. The O-ring is seated in a recess on the connection surface of the nipple, providing a leak-proof seal suitable for high-pressure hydraulic applications. The design is reusable and permits high tightening torques. The adaptor measures 44 mm in length with a body width and height of 36 mm, and weighs approximately 145 g. Viton seals are available on request as an alternative to the standard seal.
Product details
| Connection 1, thread diameter | 1 Inch |
|---|---|
| Connection 1, thread type | ORFS |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-3/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Long description | ORFS fittings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment : Zinc-plated, Viton seal available on request |
| Pros | High tightening torques, Reusable |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 145 g |
| Dimensions | 44 × 36 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000253418

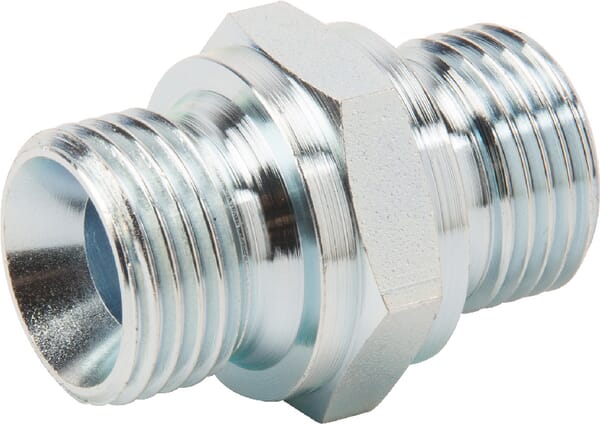

Burnett & Hillman Adaptor 1/2 BSP 3852A DNB08A
£2.05 excl.
£2.46 incl.
In stock
Expected to ship on Friday 18 September
BPA000349520

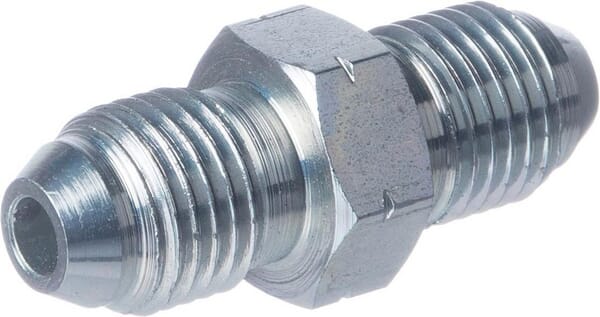

Burnett & Hillman Double Adaptor M14 JIS RM14J
£7.04 excl.
£8.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000395985
Burnett & Hillman Adaptor M/F 3/8" BSP x 1/4" BSP VRB0604GAUGE
£7.29 excl.
£8.75 incl.
In stock
Expected to ship on Friday 18 September
BPA000316195

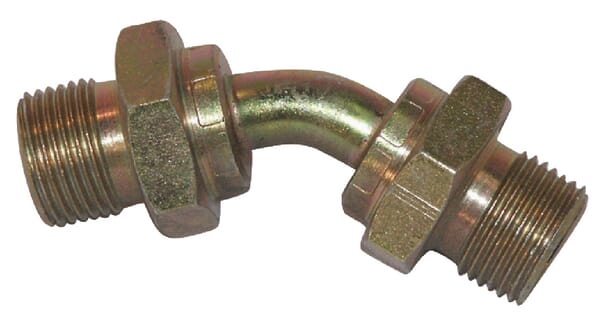

Burnett & Hillman Swept elbow M/M 3/8 BSP MM4506B
£8.82 excl.
£10.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000393155

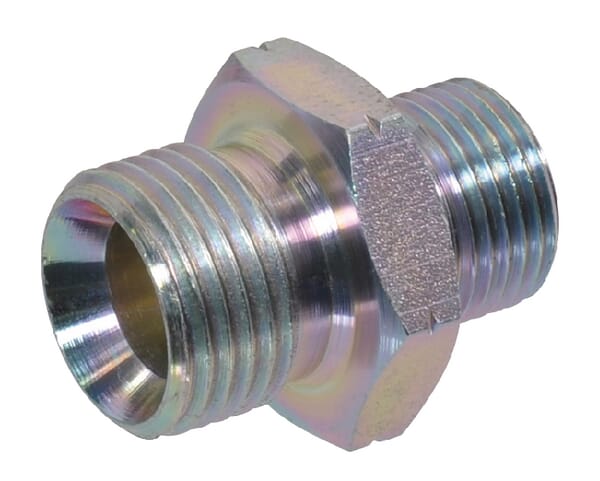

Burnett & Hillman Nipple 1/4 BSP x M10x1.0 VNBM0410
£3.23 excl.
£3.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000349259

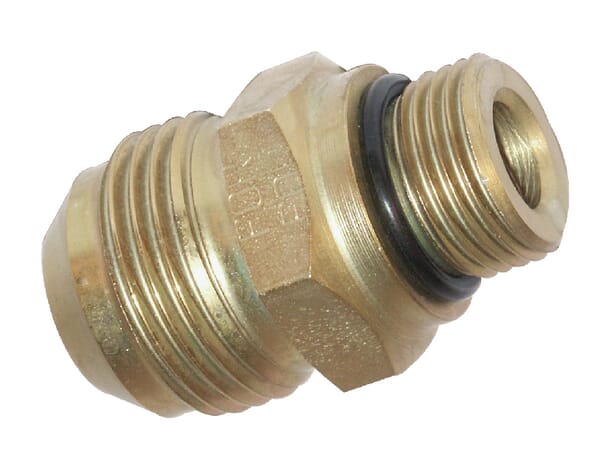

Burnett & Hillman Male stud 3/4 JIC x 7/8 UNF RIU1214
