Product details
| Cover model | With notch |
|---|---|
| Depth | 96 mm |
| DIN rail | Yes |
| Earthing terminal block | No |
| EMC-version | No |
| Extension possible | Yes |
| Height | 150 mm |
| Housing material | Plastic |
| Inner depth | 71 mm |
| Insulation class | 55 |

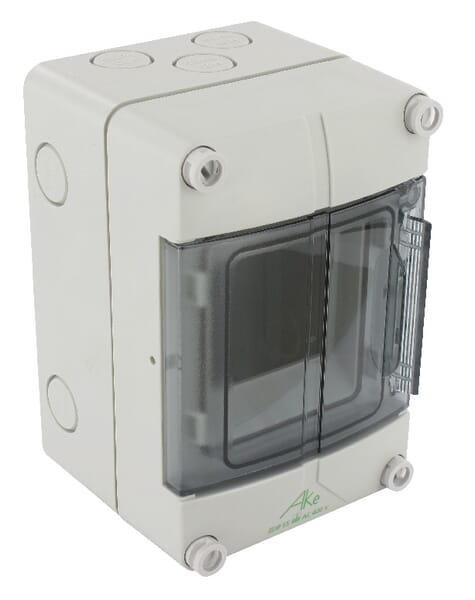

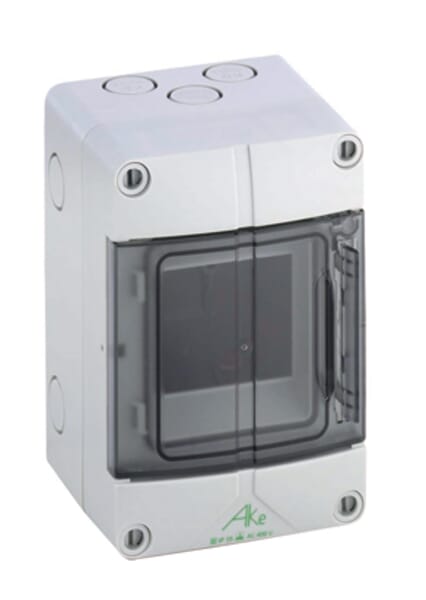

| Long description | The installation cabinet AKe IP54, is delivered with a smoke-coloured cover, which can easily be changed from the right to the left side. |
| Manufacturer Product ID | 73560301 |
| Neutral terminal block | No |
| Number of rows | 1 |
| Product details | Indoor use only, Material, polystyrene |
| Pros | Double insulated |
| RAL colour code | 7035 |
| Signal passing door | Yes |
| Transparent cover/door | Yes |
| Type of door | Single |
| Unit | Each |
| UV resistance | No |
| Width | 100 mm |
| Width in number of modular spacings (mm) | 3 mm |
| With lock | No |
| With mounting plate | No |
Logistics
| EAN | 4013902911707 |
|---|---|
| Unit of measure | EA |
| Weight | 330 g |
| Dimensions | 152 × 101 × 100 mm |
| Dangerous goods | No |
