£1,001.88
excl. VAT
£1,202.26 incl. VAT
£1,202.26
incl. VAT
£1,001.88 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Long service life, Wide range of applications, Low space requirement |
| Center to center pressure side | 51 mm |
| Center to center suction side | 62 mm |

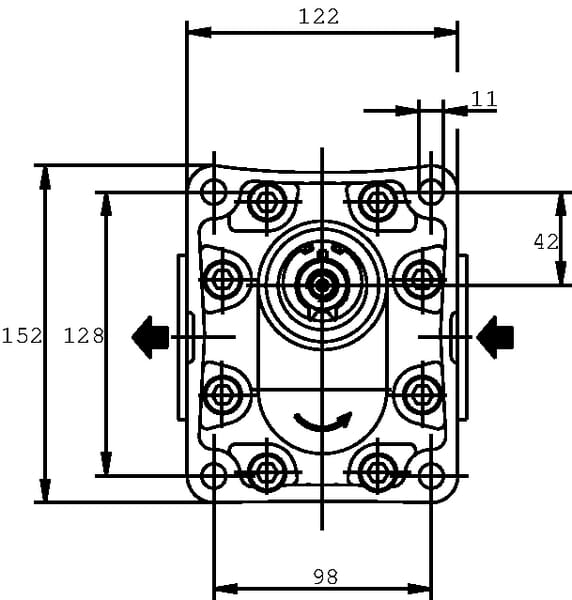

| Connection | European 4-hole flange |
| Details | High operating pressure:, High efficiency at high temperatures, Solid and compact design |

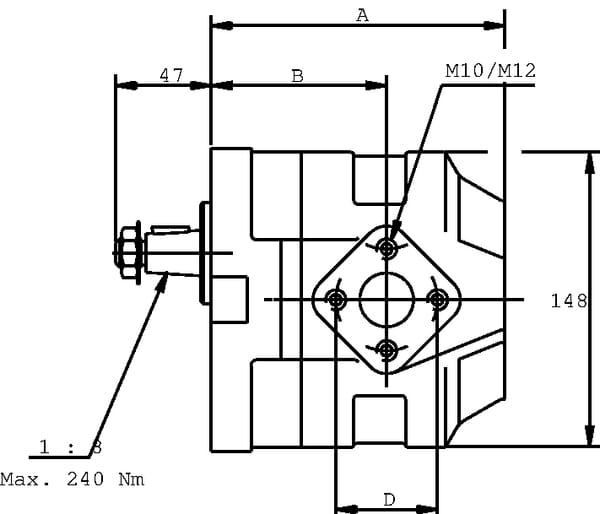

| Length body | 163 mm |
| Length flange to center bore | 108 mm |
| Material | Pump housing, flange and back cover: Steel |

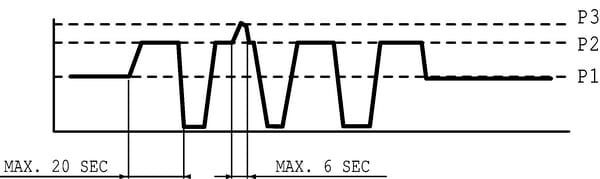

| P1 (bar) | 180 BAR |
| Pressure flange | 3 G-16 |
| Pressure max. | Pressure continuous (p1): 250 BAR |
| Properties | Low noise emission, Customer-specific design possible |
| Rotational speed min. | 350 r/min |
| Rotation max. | 2500 r/min |
| Seal | der no.: KM93034E3 |
| Shaft type | Tapered shaft 1 : 8 |

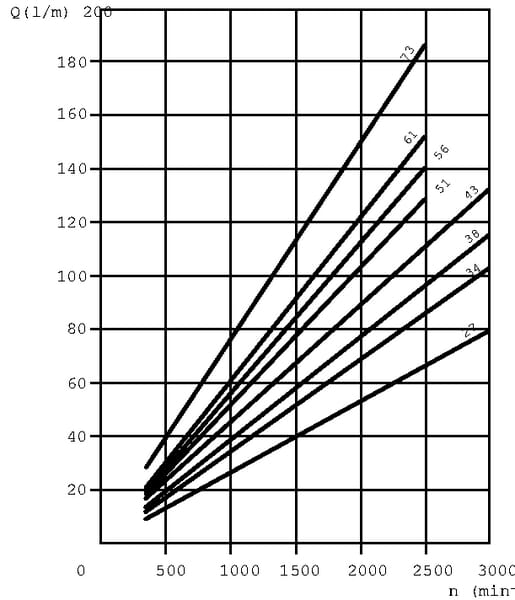

| Stroke volume | 73,82 cm³/rev |
| Suction flange | 35 G-20 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15400 g |
| Dimensions | 270 × 190 × 145 mm |
| Dangerous goods | No |
You might also like
BPA000340074

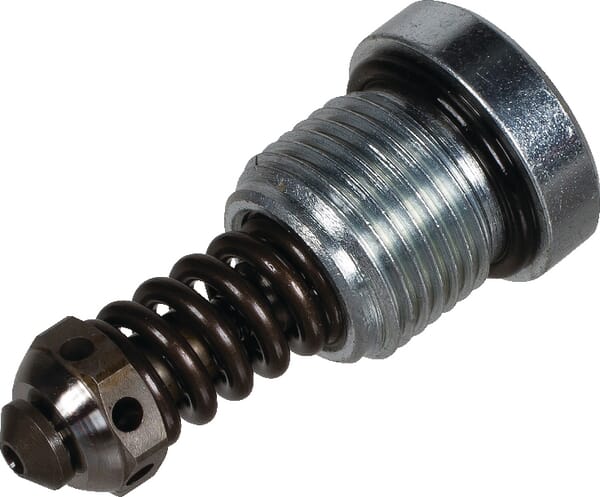

Casappa Cartridge PLC051-50Bar PLD10/2 PLD920VPE50
£78.46 excl.
£94.15 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340434
Casappa Tandem pump PLP30.43-D0-65-M6-LED/EB-N-I-FS PLP3043DII
£498.85 excl.
£598.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000340474
Casappa Tie bolts Polaris 10 M8x110 PLP910M8110
£34.00 excl.
£40.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340154

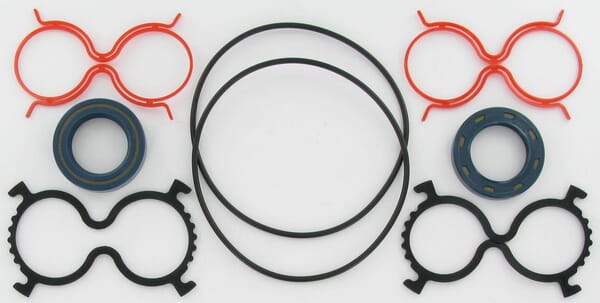

Casappa Seal kit PLM 30 R 84 E4 PLM93084E4AFD
£37.85 excl.
£45.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340320

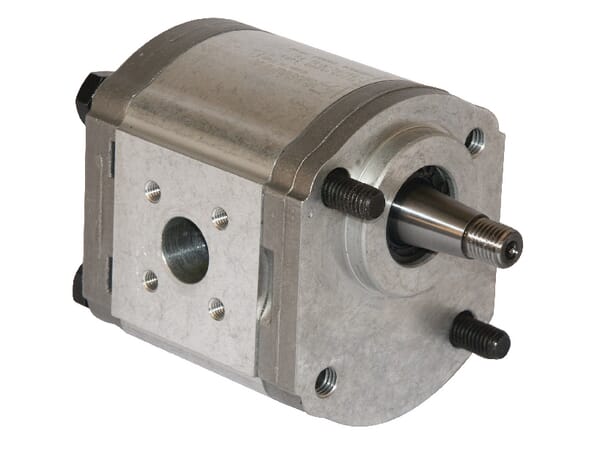

Casappa Pump PLP 20.25-D0 54-B5 LBC/BE PLP2025D054B5
