£369.47
excl. VAT
£443.36 incl. VAT
£443.36
incl. VAT
£369.47 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 58 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Cast iron |
| Flange code | B5 |
| Flange type norm | German |
| Housing length | 123.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3074 g |
| Dimensions | 173 × 105 × 108 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340216
Casappa Pump PLP20.11,2D0-54B2-LBE/BC-N-EL FS PLP2011D054B2
£324.11 excl.
£388.93 incl.
In stock
Expected to ship on Monday 21 September
BPA000340548

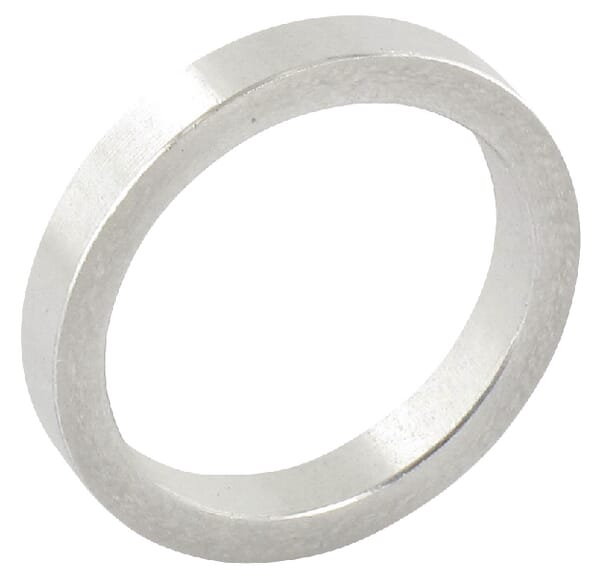

Casappa Back-up washer BA 22x32x7 PLP92095
£10.75 excl.
£12.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340254

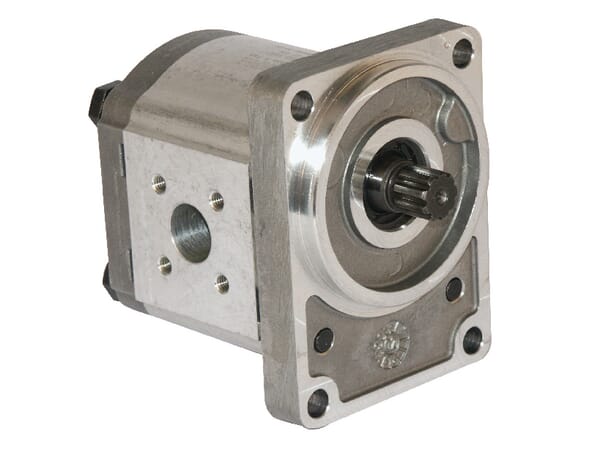

Casappa Pump PLP20.14S0-12B2-LBE/BC-N-EL FS PLP2014S012B2
£340.66 excl.
£408.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340519

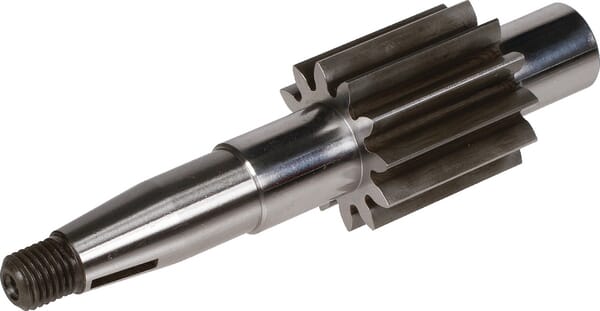

Casappa Drive shaft 25 cc 54/FS PLP9202554FS
£141.71 excl.
£170.05 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340523

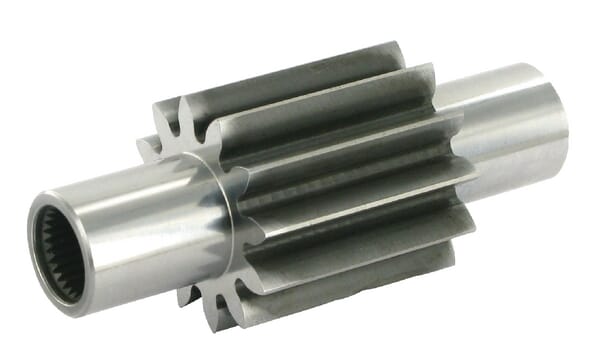

Casappa Drive shaft pump 25cc DII/DIIB PLP92025IIIFSAS
