£381.14
excl. VAT
£457.37 incl. VAT
£457.37
incl. VAT
£381.14 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September

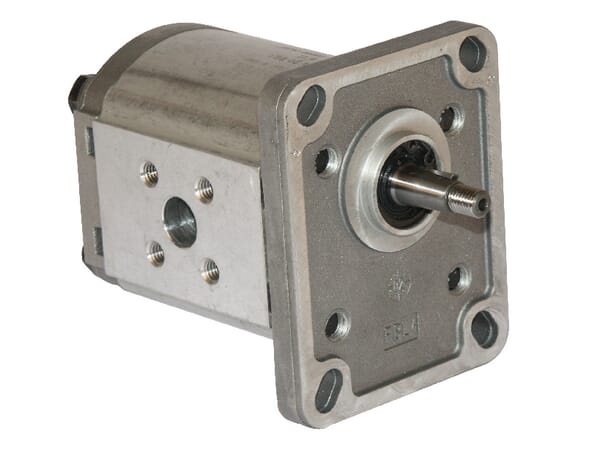

Product details

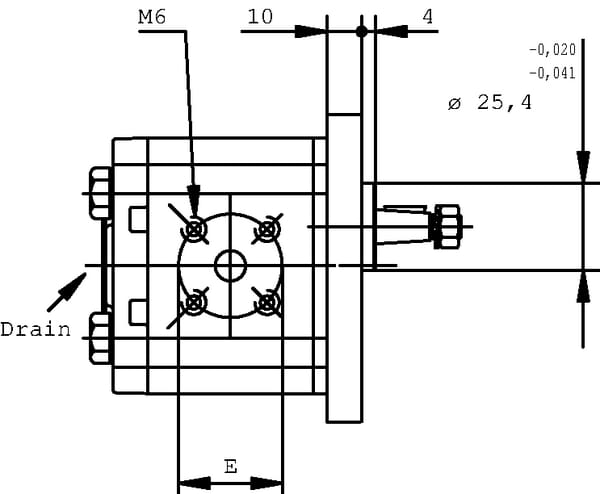

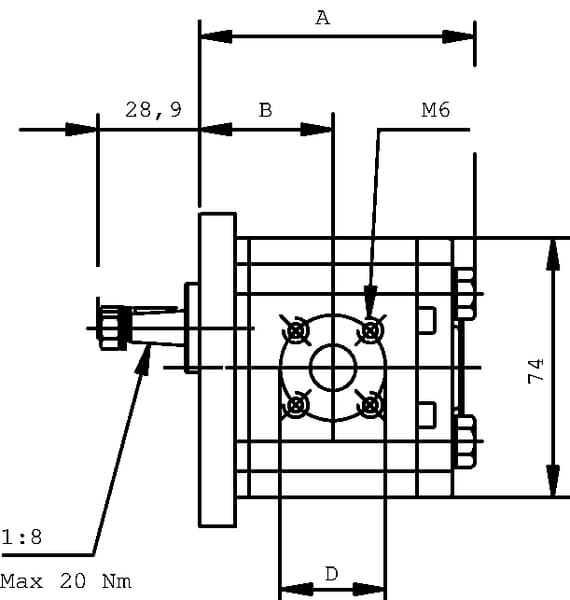

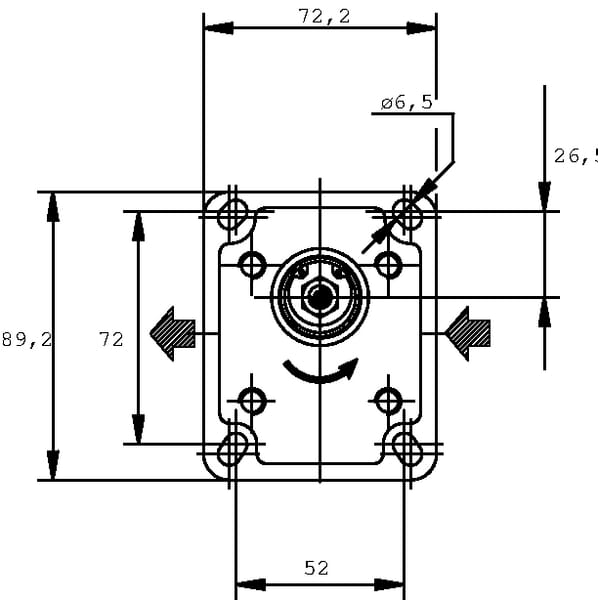

| B | 33.2 mm |
|---|---|
| Connection | 4-hole flange to European standard. leakage oil connection 1/8" BSP |
| D | 30 mm |
| E | 30 mm |
| Length body | 69.4 mm |
| Material | Aluminium |
| Note | Always connect leakage oil line |
| P1 (bar) | 260 BAR |
| Pressure flange | 1 GQ-06 |
| Product details | European flange, Tapered shaft 1:8, European front flange, Spigot 25.4mm, Drain connection 1/8" BSP, connect to free return, max. : 5 bar, Limited axial and radial loads, For chain and belt drives, it is necessary to use a support bearing |
| Pros | Versatile for heavy-duty conditions |
| Rotational speed min. | 650 r/min |
| Rotation max. | 4000 r/min |
| Seal | Order no.: PLM 9-10AFD |
| Shaft type | Conical 1:8 |
| Stroke volume | 2,13 cm³/rev |
| Suction flange | 1 GQ-06 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 874 g |
| Dimensions | 90 × 70 × 70 mm |
| Dangerous goods | No |
