£576.79
excl. VAT
£692.15 incl. VAT
£692.15
incl. VAT
£576.79 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

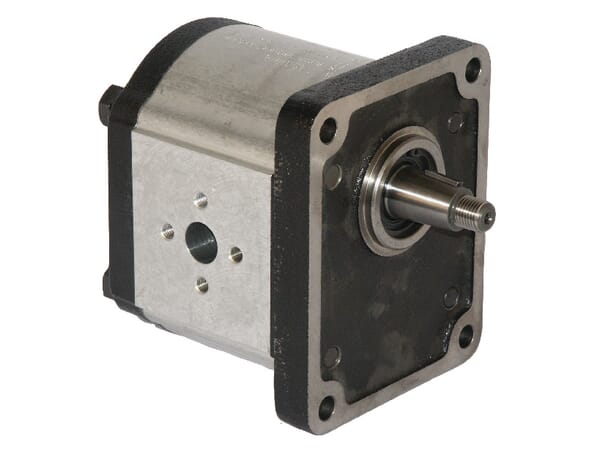

Product details

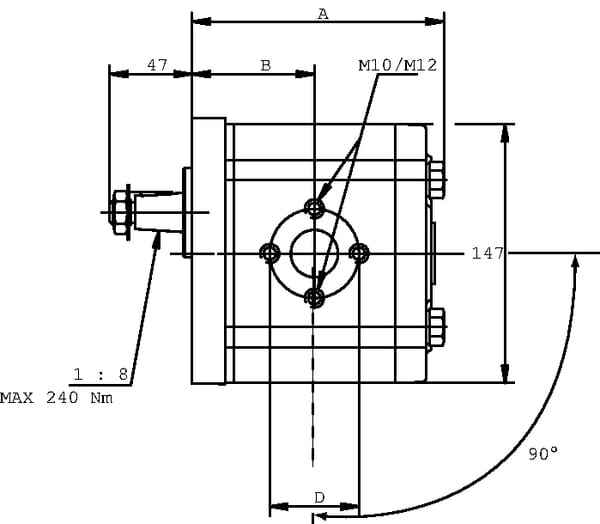

| AHousing length | 141 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 68.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

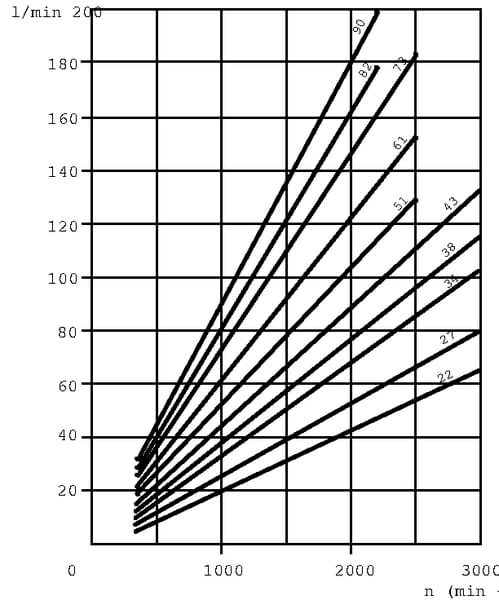

| Displacement | 39.27 cm³/rev |
| DSuction port bolts circle diameter | 51 mm |
| Flange and back cover material | Cast iron |
| Flange code | E3 |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 240 BAR |
| Max intermittend working pressure | 260 BAR |
| Max pressure peak | 270 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

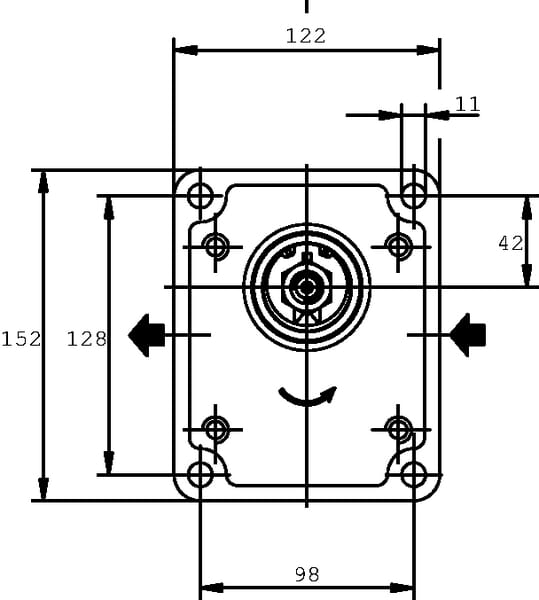

| Mounting diameter | 50.8 mm |
| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9180 g |
| Dimensions | 190 × 155 × 125 mm |
| Dangerous goods | No |
You might also like
BPA000340147
Casappa Seal kit PLM20-R-03P9 PLM920R03P9AFD
£22.24 excl.
£26.69 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340652
Casappa Washer M12x20mm DIN 9021 PLP930M12
£0.14 excl.
£0.17 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340664

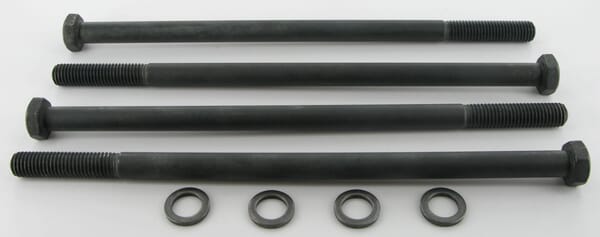

Casappa Tie bolts polaris 30 M12x250 PLP930M12250
£37.13 excl.
£44.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340520

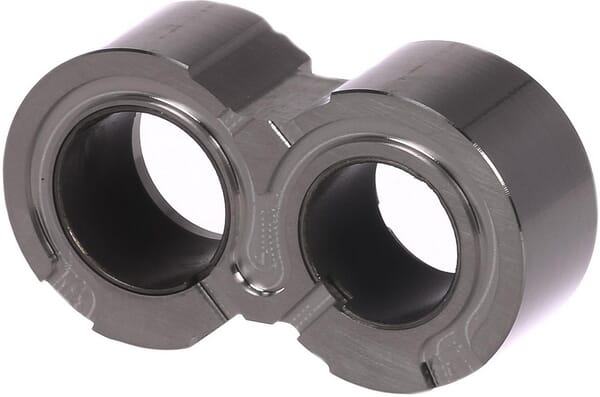

Casappa Thrust plate PL20 D 22.22 PLP92025930040N
£36.08 excl.
£43.30 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340256

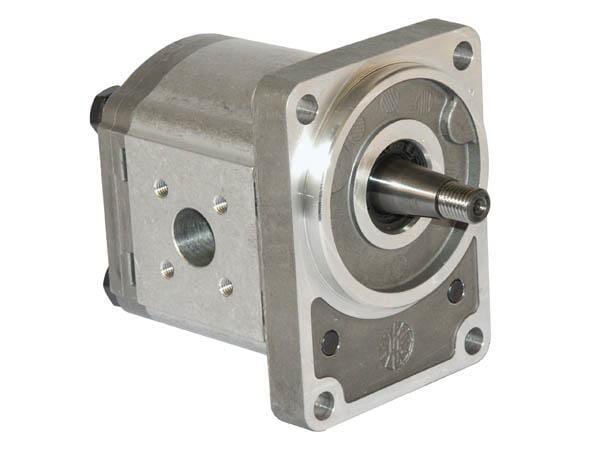

Casappa Pump PLP20.14S0-54B2-LBE/BC-N-EL FS PLP2014S054B2
£340.66 excl.
£408.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340637

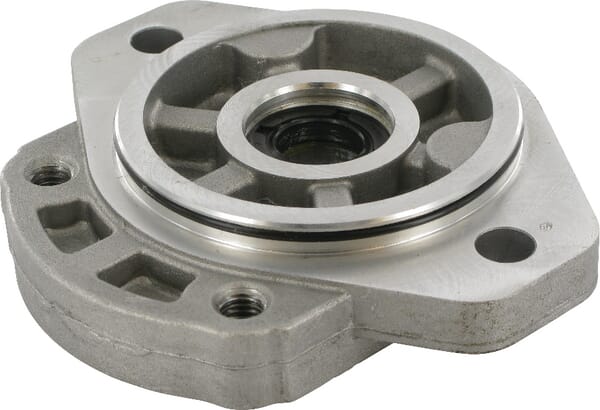

Casappa Front flange for PLP20/ S2-EL PLP920S2EL
£61.77 excl.
£74.12 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000328897

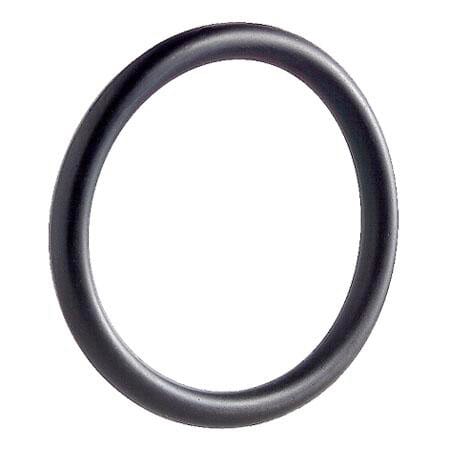

Kramp O-ring 154.3x5.7mm 70 shore OR15430570P001
