£721.66
excl. VAT
£865.99 incl. VAT
£865.99
incl. VAT
£721.66 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Center to center pressure side | 40 mm |
|---|---|
| Center to center suction side | 51 mm |

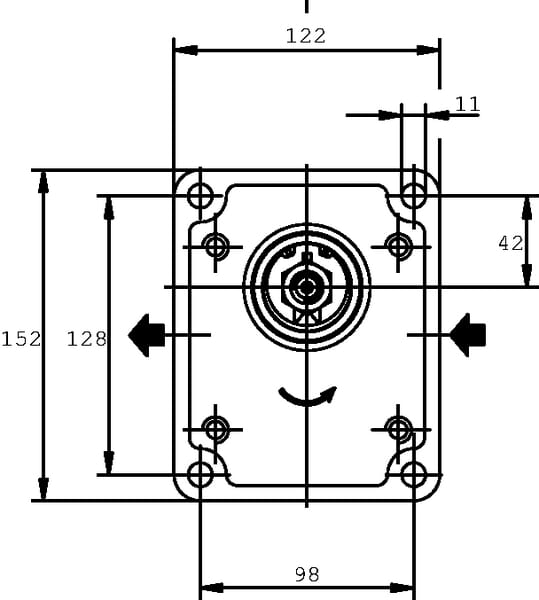

| Connection | European 4-hole flange |
| Length body | 130 mm |
| Length flange to center bore | 63 mm |

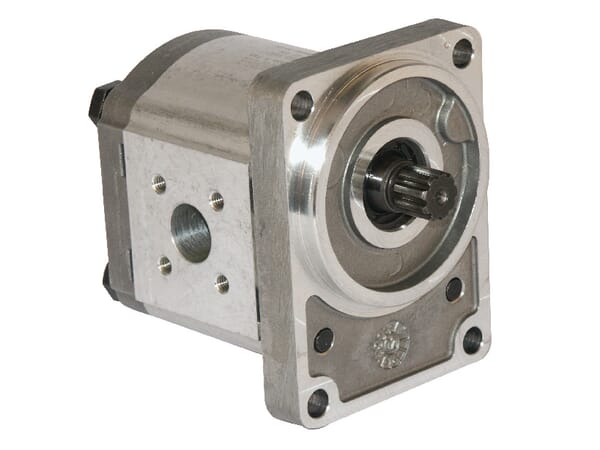

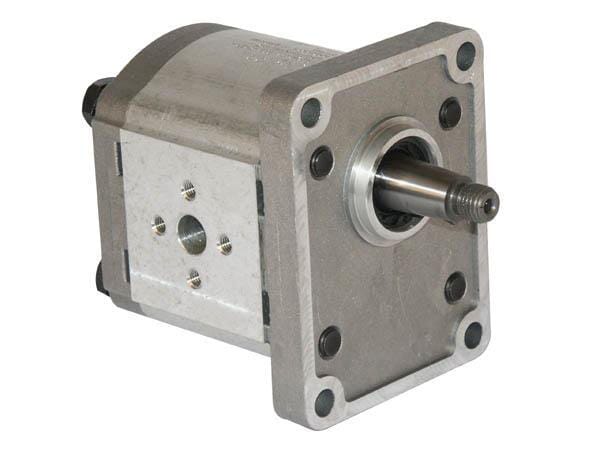

| Long description | The Casappa Polaris PLM series consists of compact and efficient hydraulic gear motors with a robust design, ideal for high-pressure applications. These gearmotors provide a long service life, low noise levels, and versatile mounting options, making them perfect for both industrial and mobile applications. |
| Material | Pump housing: Aluminium- Flange and back cover: Steel |

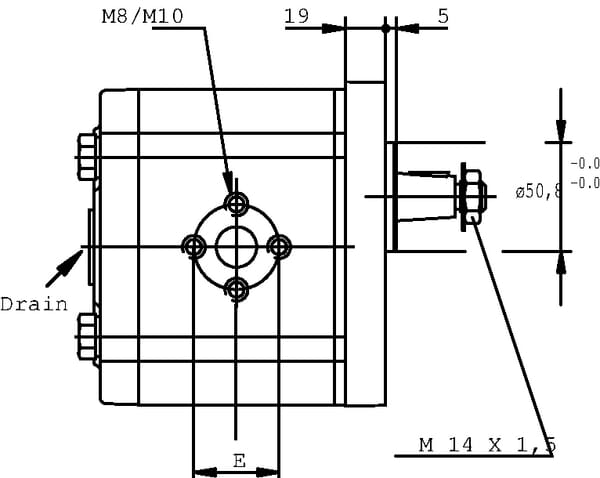

| Note | Always connect leakage oil line |
| P1 (bar) | 250 BAR |
| Pressure flange | 2 G-12 |
| Pressure max. | Pressure continuous (p1): 250 BAR |
| Product details | Only low axial and radial shaft loads possible, If the motor is equipped with a sprocket or a V-belt pulley, a preloaded bearing must be used, e.g., order number T324 |
| Pros | Compact en lichtgewicht, High efficiency, Long service life |
| Rotational speed min. | 350 r/min |
| Rotation max. | 3000 r/min |

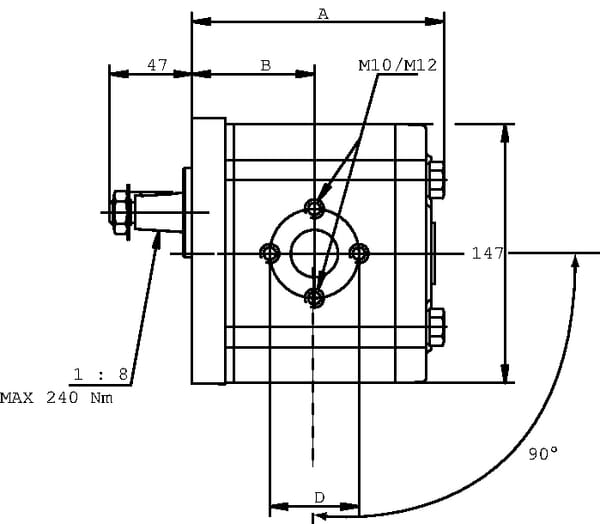

| Shaft type | Tapered shaft 1 : 8 |

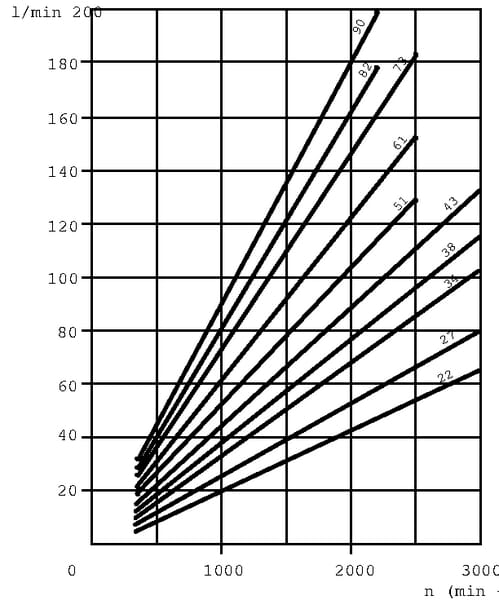

| Stroke volume | 21,99 cm³/rev |
| Suction flange | 3 G-12 |
| Unit | Each |
Logistics
| EAN | 8719607046589 |
|---|---|
| Unit of measure | EA |
| Weight | 8616 g |
| Dimensions | 170 × 155 × 125 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340373
Casappa Pump PLP20.6,3S0-12B2-LBE/BC-N-EL FS PLP206S012B2
£324.06 excl.
£388.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340412

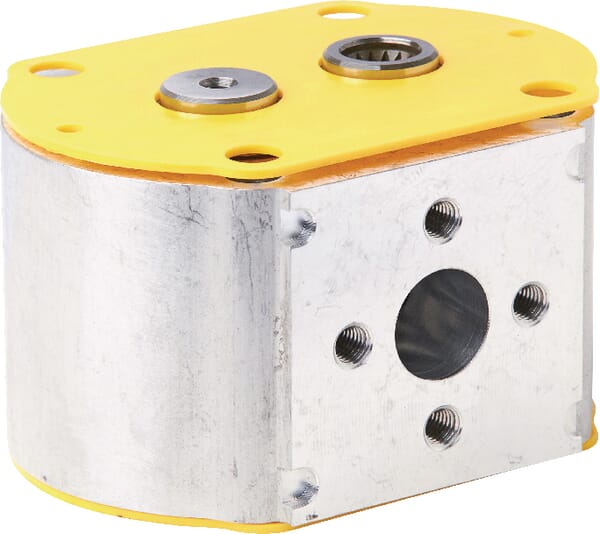

Casappa Tandem Pump PLP30.27-D0-65-M6-LED/EB-N-I-FS PLP3027DII
£487.07 excl.
£584.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340555
Casappa Drive shaft PL20.20/III/FS-L S PLP920AS20
£139.19 excl.
£167.03 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340487
Casappa Bolt set M8X240 (IV) PLP910M8240
£47.35 excl.
£56.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340634

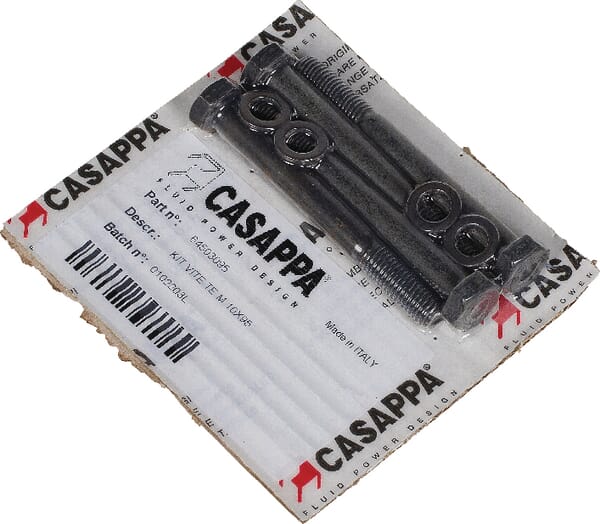

Casappa Bolt 20 M10x95 Polaris PLP920M1095
