£714.46
excl. VAT
£857.35 incl. VAT
£857.35
incl. VAT
£714.46 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

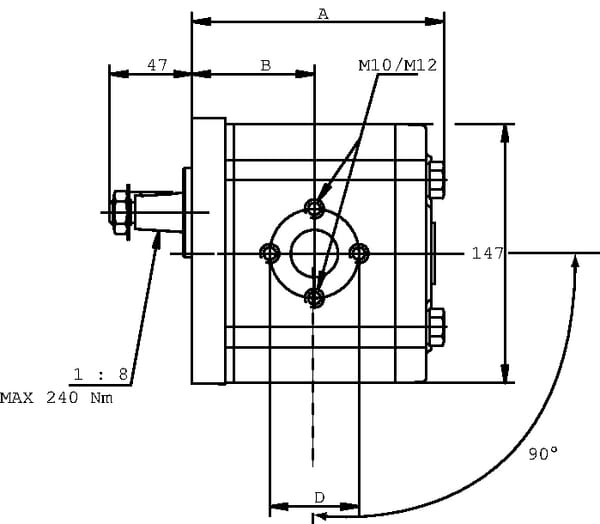

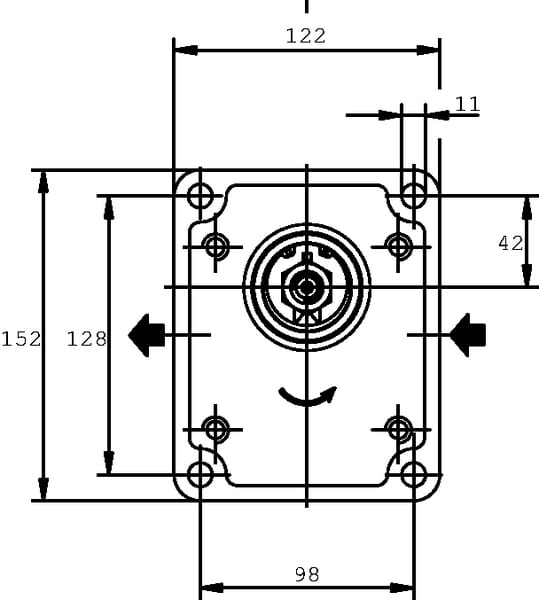

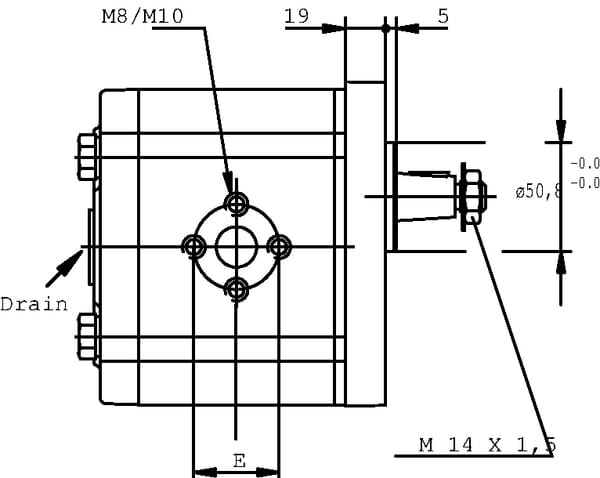

| Center to center pressure side | 40 mm |
|---|---|
| Center to center suction side | 51 mm |
| Connection | European 4-hole flange |
| Length body | 133 mm |
| Length flange to center bore | 64.5 mm |
| Long description | The Casappa Polaris PLM series consists of compact and efficient hydraulic gear motors with a robust design, ideal for high-pressure applications. These gearmotors provide a long service life, low noise levels, and versatile mounting options, making them perfect for both industrial and mobile applications. |
| Material | Pump housing: Aluminium- Flange and back cover: Steel |
| Note | Always connect leakage oil line |
| P1 (bar) | 250 BAR |
| Pressure max. | Pressure continuous (p1): 250 BAR |
| Product details | Only low axial and radial shaft loads possible, If the motor is equipped with a sprocket or a V-belt pulley, a preloaded bearing must be used, e.g., order number T324 |
| Pros | Compact en lichtgewicht, High efficiency, Long service life |
| Rotational speed min. | 350 r/min |
| Rotation max. | 3000 r/min |
| Shaft type | Tapered shaft 1 : 8 |
| Stroke volume | 26,70 cm³/rev |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8870 g |
| Dimensions | 180 × 116 × 153 mm |
| Dangerous goods | No |
You might also like
BPA000279386

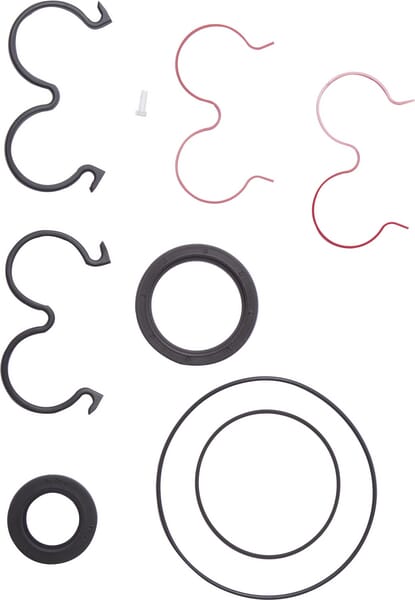

Casappa Seal kit FP30-16Z0 S/D-(2) FP93016ZOSD2AFD
£22.30 excl.
£26.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340021

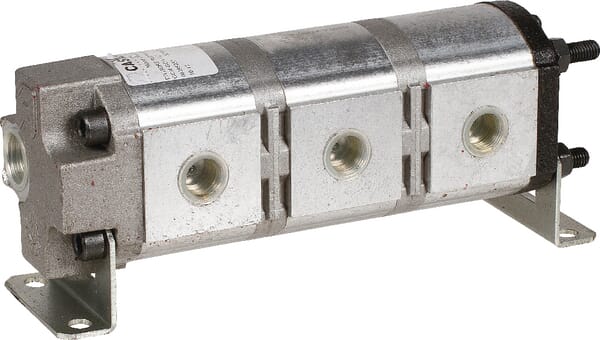

Casappa Rotary flow divider Polaris 10 PLD1034
£1,001.69 excl.
£1,202.03 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340181

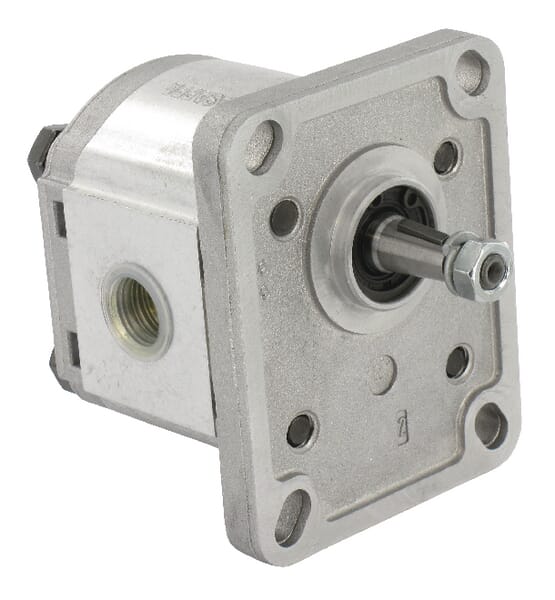

Casappa Gear Pump PLP10.2-D0-81E1-L PLP102D081E1GC
£272.39 excl.
£326.87 incl.
In stock
Expected to ship on Friday 18 September
BPA000340624

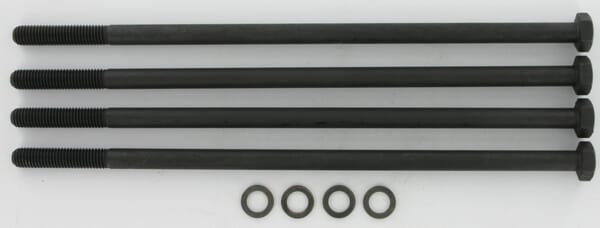

Casappa Tie bolts polaris 20 M10x270 PLP920M10270
£51.64 excl.
£61.97 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340263

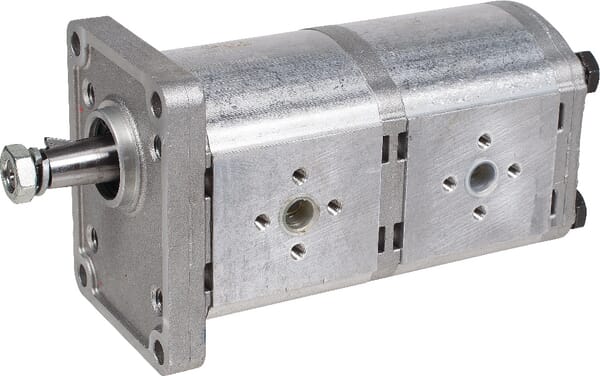

Casappa Twin pump PLP20.16/20.16 DO-82E PLP20162016D
£736.11 excl.
£883.33 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340607

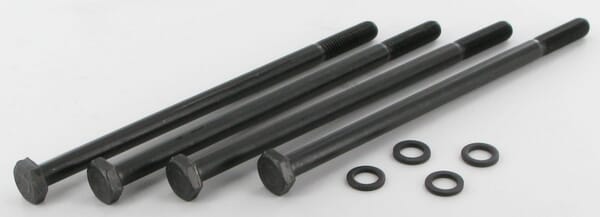

Casappa Tie bolts polaris 20 M10x190 PLP920M10190
£17.56 excl.
£21.07 incl.
In stock
Expected to ship on Thursday 17 September
Recently viewed
BPA000270126

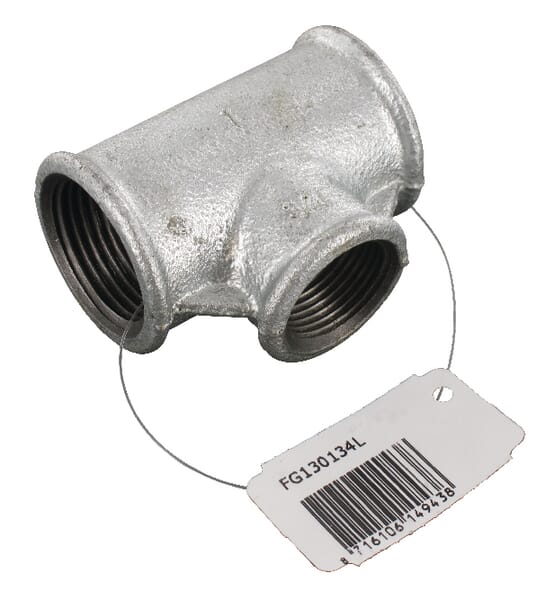

Kramp T piece zinc-plated 1"x3/4" FG130134L
