£961.61
excl. VAT
£1,153.93 incl. VAT
£1,153.93
incl. VAT
£961.61 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

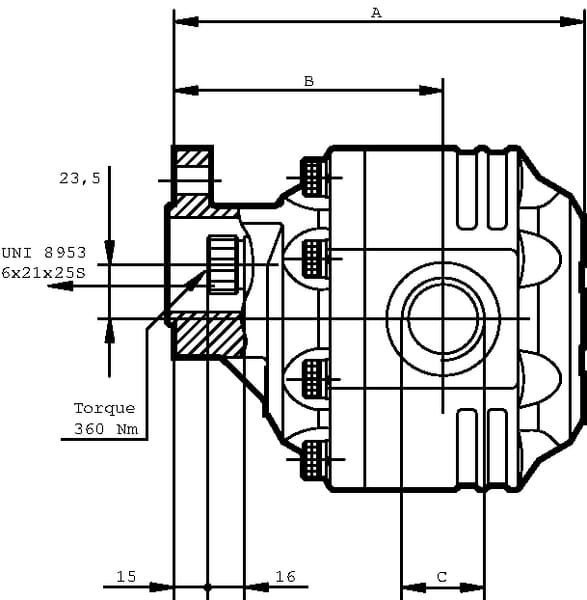

| AHousing length | 233 mm |
|---|---|
| BConnection port to flange distance | 152 mm |
| CMain port thread diameter | 1-1/4 Inch |
| Displacement | 125.66 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | T1 |
| Flange type norm | Italian |
| Housing material | Cast iron |
| Main port thread type | G |
| Max. continous working pressure | 160 BAR |
| Max intermittend working pressure | 180 BAR |
| Max pressure peak | 200 BAR |
| Max rotation speed | 1800 r/min |

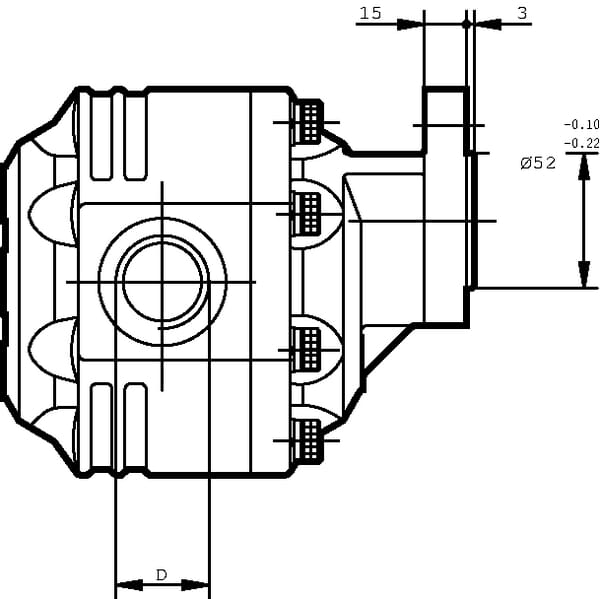

| Mounting diameter | 52 mm |

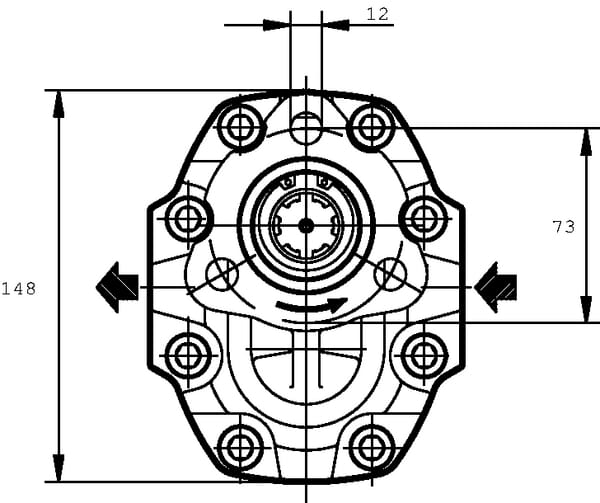

| Mounting holes horizontal distance | 73 mm |
| Mounting holes vertical distance | 73 mm |
| Number of mounting holes | 3 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | High performance even at low speeds, Direct mounting on PTO shaft possible, Various port positions, Low noise, Customer-specific design possible, Adaptor for 1 3/8" 6-piece PTO profile: Support bearing SMLF or SFLF (plus hitch bushing), Adaptor for 9-piece ZF profile: Support bearing SR9 (plus hitch bushing), In combination with these support bearings, a torque of 300 Nm must not be exceeded, PTO shaft cantilever pump, Drives with ZF profile |
| Pros | Wide range of applications, Compact design |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 25 mm |
| Shaft number of teeth | 6 |
| Shaft type | Splined 6T |
| Shaft type code | 19 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15362 g |
| Dimensions | 240 × 165 × 140 mm |
| Dangerous goods | No |
