£652.02
excl. VAT
£782.42 incl. VAT
£782.42
incl. VAT
£652.02 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

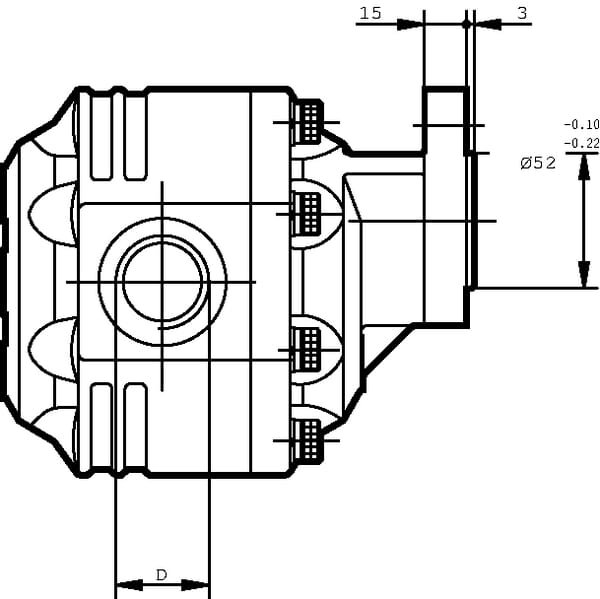

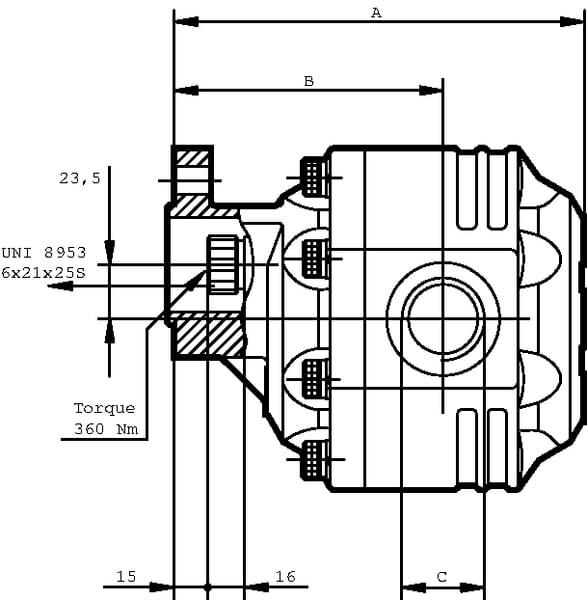

| AHousing length | 150.5 mm |
|---|---|
| BConnection port to flange distance | 106.5 mm |
| CMain port thread diameter | 3/4 Inch |

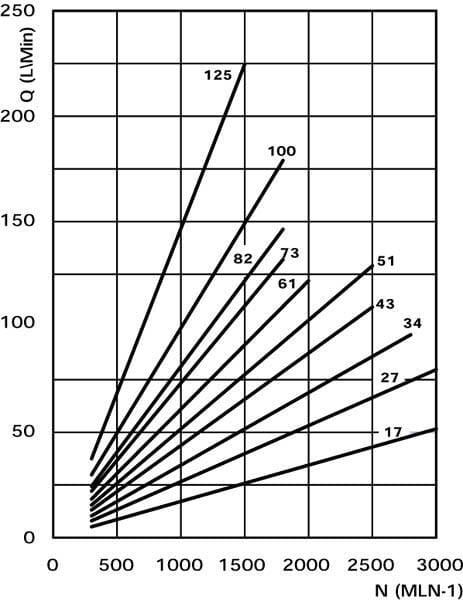

| Displacement | 26.7 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | T1 |
| Flange type norm | Italian |
| Housing material | Cast iron |
| Main port thread type | G |
| Max. continous working pressure | 290 BAR |
| Max intermittend working pressure | 315 BAR |
| Max pressure peak | 325 BAR |
| Max rotation speed | 3000 r/min |
| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 73 mm |
| Mounting holes vertical distance | 73 mm |
| Number of mounting holes | 3 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | High performance even at low speeds, Direct mounting on PTO shaft possible, Various port positions, Low noise, Customer-specific design possible, Adaptor for 1 3/8" 6-piece PTO profile: Support bearing SMLF or SFLF (plus hitch bushing), Adaptor for 9-piece ZF profile: Support bearing SR9 (plus hitch bushing), In combination with these support bearings, a torque of 300 Nm must not be exceeded, PTO shaft cantilever pump, Drives with ZF profile |
| Pros | Wide range of applications, Compact design |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 25 mm |
| Shaft number of teeth | 6 |
| Shaft type | Splined 6T |
| Shaft type code | 19 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.

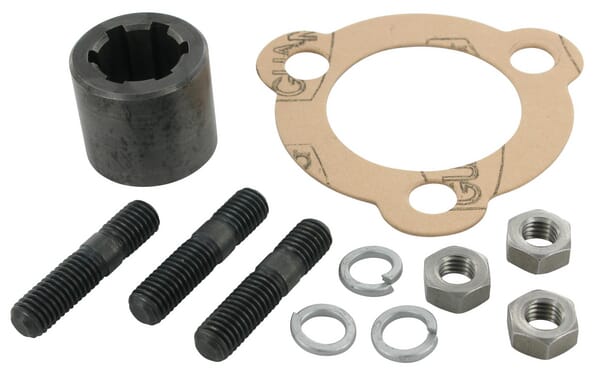

SF916A
Casappa Bush 16A, Formula SF916A
£23.63 excl.
£28.36 incl.
SFLF

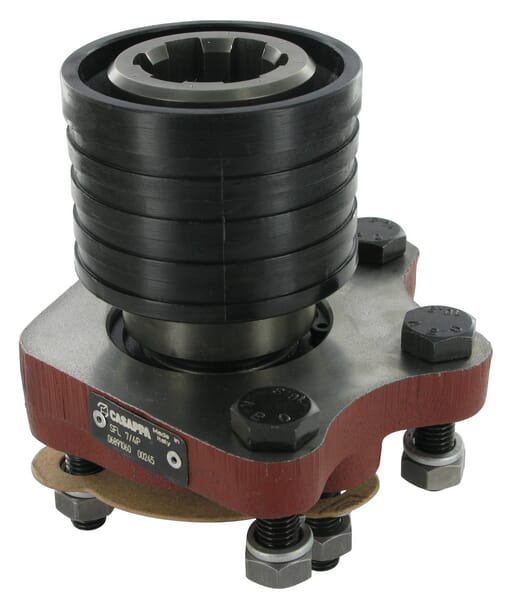

Casappa Support bearing SFLF
£161.98 excl.
£194.38 incl.
SMLF

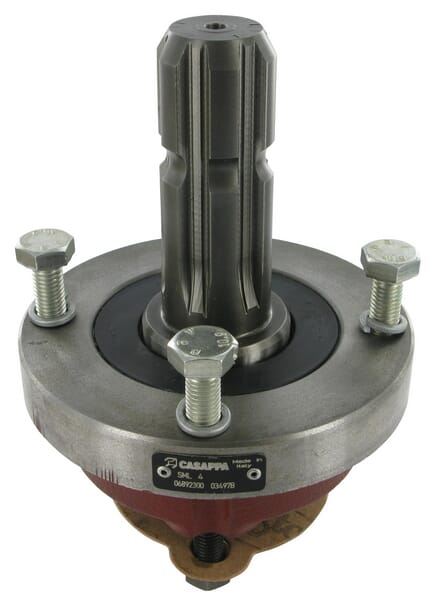

Casappa VORSATZL.+ WELLE F. SMLF
£165.46 excl.
£198.55 incl.

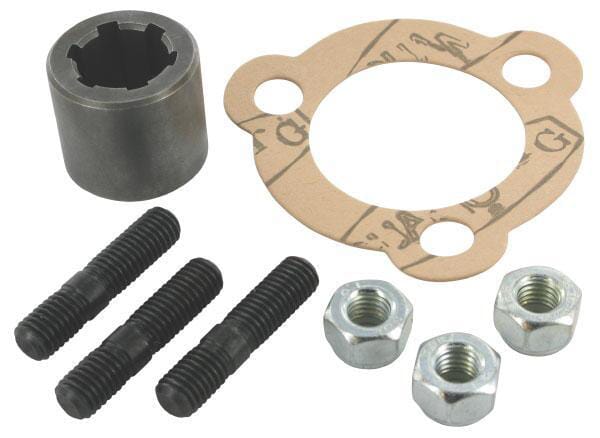

SR917A
Casappa Bush SR917A
£26.18 excl.
£31.42 incl.
SR9

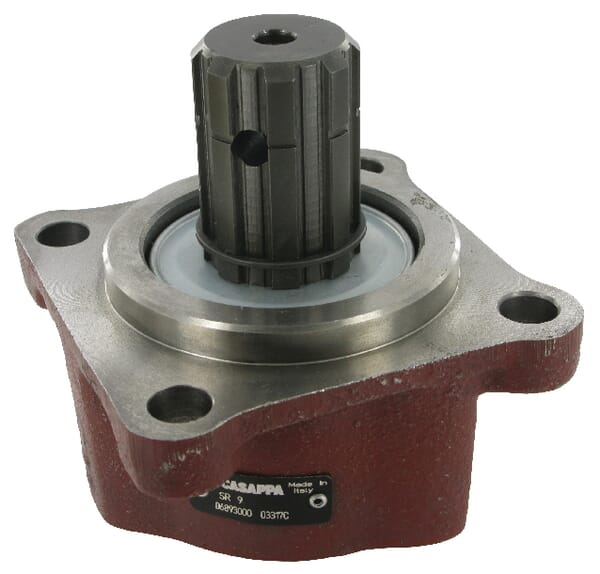

Casappa Support bearing F-ZF SR9
£213.76 excl.
£256.51 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9038 g |
| Dimensions | 165 × 153 × 127 mm |
| Dangerous goods | No |
You might also like
BPA000340632

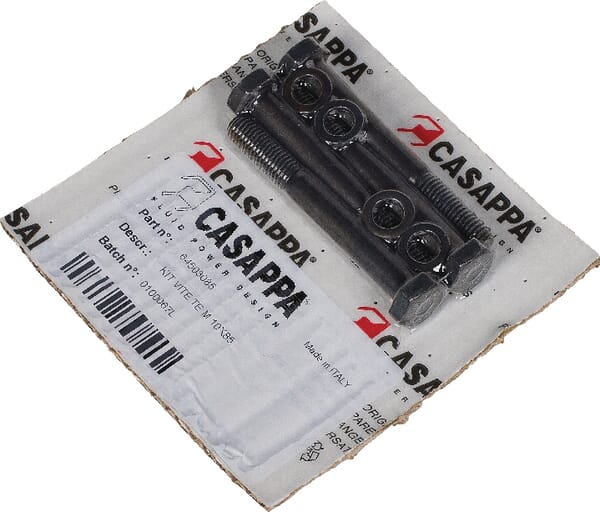

Casappa Bolt 20 M10x85 Polaris PLP920M1085
