£901.18
excl. VAT
£1,081.42 incl. VAT
£1,081.42
incl. VAT
£901.18 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

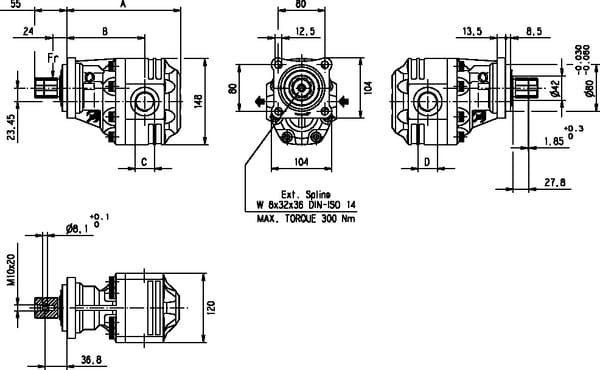

| AHousing length | 176.5 mm |
|---|---|
| BConnection port to flange distance | 124.5 mm |
| Benefits | Wide range of applications, Compact design |
| CMain port thread diameter | 3/4 Inch |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 34.56 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | Z0 |
| Flange type norm | ISO |
| Housing material | Cast iron |
| Main port thread type | G |
| Max. continous working pressure | 280 BAR |
| Max intermittend working pressure | 300 BAR |
| Max pressure peak | 310 BAR |
| Max rotation speed | 2800 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 80 mm |
| Mounting holes vertical distance | 80 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Bi-directional |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 36 mm |
| Shaft number of teeth | 8 |
| Shaft type | Splined 8T |
| Shaft type code | 16 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12075 g |
| Dimensions | 270 × 150 × 145 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340382

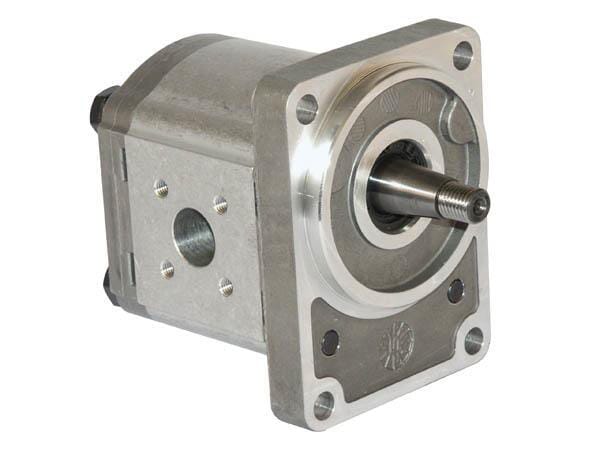

Casappa Pump PLP20.8D0-54B2-LBE/BC-N-EL FS PLP208D054B2
£327.00 excl.
£392.40 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340223
Casappa Gear Pump 11.2 Whisper PLP2011DO82E2W
£260.80 excl.
£312.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301266

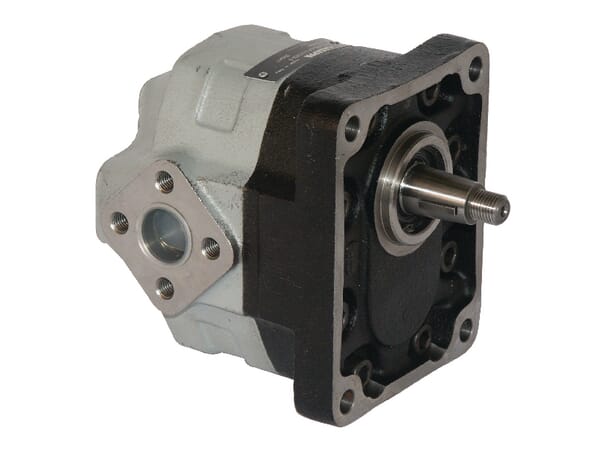

Casappa Pump LED/EB KP3027D083E3
£615.61 excl.
£738.73 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340218

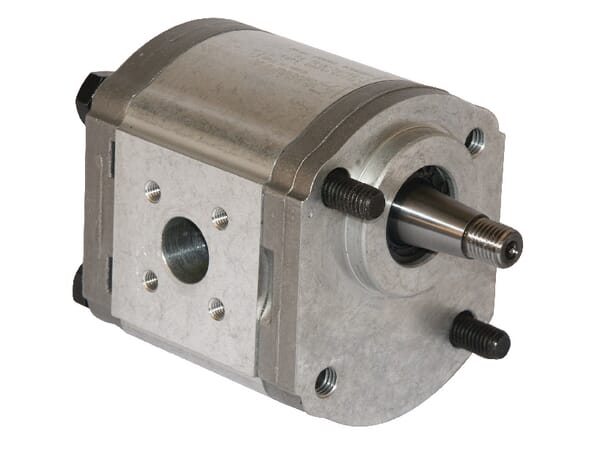

Casappa Pump PLP 20.11-D0 54-B5 LBC/BE PLP2011D054B5
£304.84 excl.
£365.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340347
Casappa Pump PLP 20.4 -D0 54-B5 LBC/BE PLP204D054B5
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340625

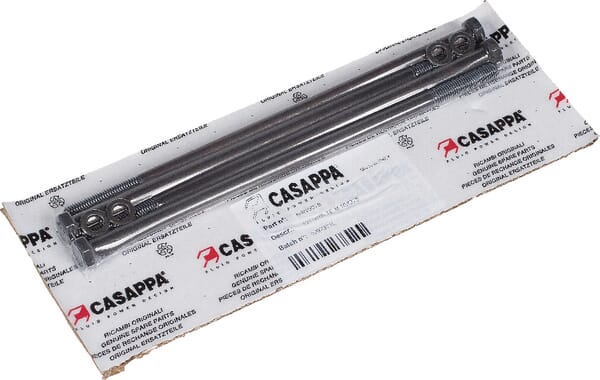

Casappa Tie bolts polaris 20 M10x275 PLP920M10275
£51.39 excl.
£61.67 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000402882

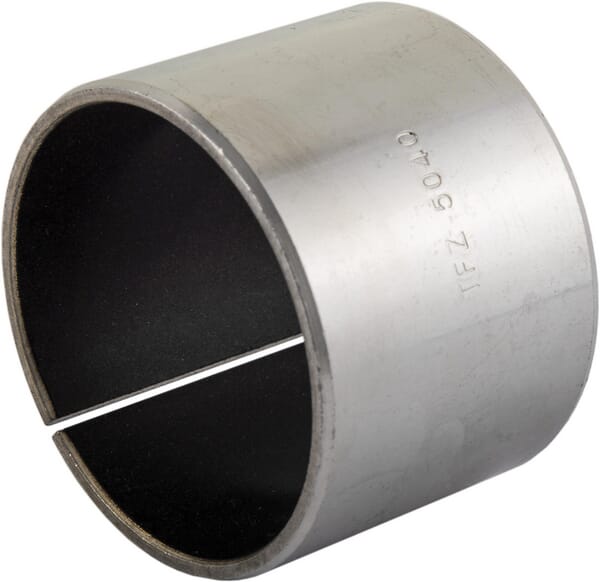

GLT/LHG Bearing bush 90x95x60mm ZB909560PTFE
