£1,284.48
excl. VAT
£1,541.38 incl. VAT
£1,541.38
incl. VAT
£1,284.48 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

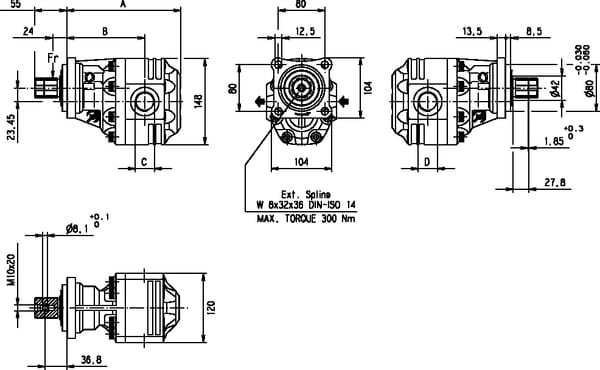

| AHousing length | 185.5 mm |
|---|---|
| BConnection port to flange distance | 130.5 mm |
| Benefits | Wide range of applications, Compact design |
| CMain port thread diameter | 3/4 Inch |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 43.98 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | Z0 |
| Flange type norm | ISO |
| Housing material | Cast iron |
| Max. continous working pressure | 270 BAR |
| Max intermittend working pressure | 290 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 80 mm |
| Mounting holes vertical distance | 80 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Bi-directional |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 36 mm |
| Shaft number of teeth | 8 |
| Shaft type | Splined 8T |
| Shaft type code | 16 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16214 g |
| Dimensions | 290 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340263
Casappa Twin pump PLP20.16/20.16 DO-82E PLP20162016D
£736.11 excl.
£883.33 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340174

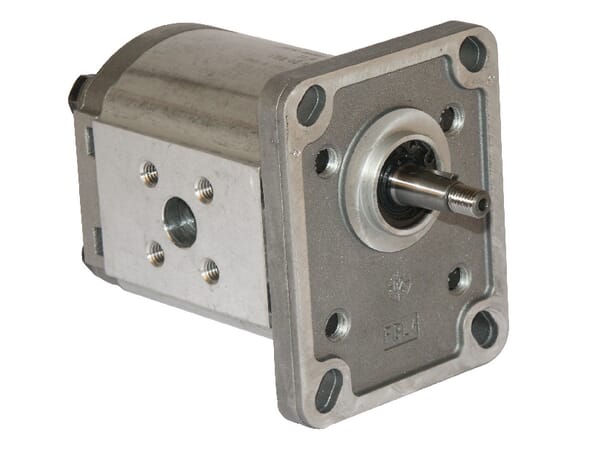

Casappa Pump PLP10.1 D0-81E1-LBB/BA-N- PLP101D081E1
