£322.07
excl. VAT
£386.48 incl. VAT
£386.48
incl. VAT
£322.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 41.7 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 4.95 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Cast iron |
| Flange code | B5 |
| Flange type norm | German |
| Housing length | 91 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 50 mm |

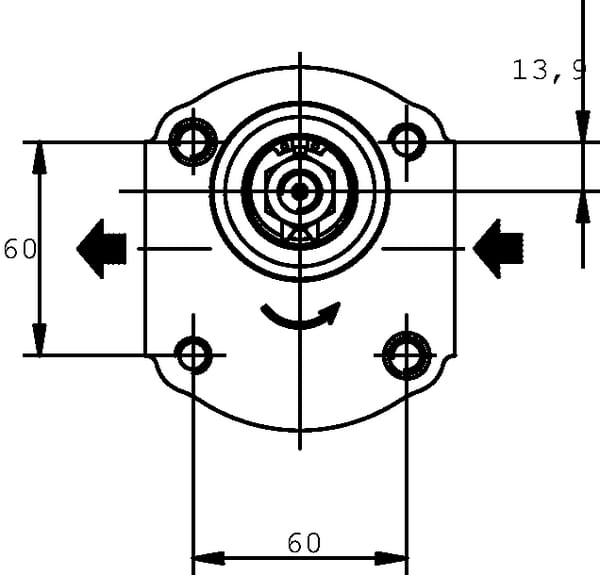

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2160 g |
| Dimensions | 140 × 100 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340285
Casappa Pump PLP20.16S0-54B5-LBE/BC-N- PLP2016S054B5
£338.63 excl.
£406.36 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340089

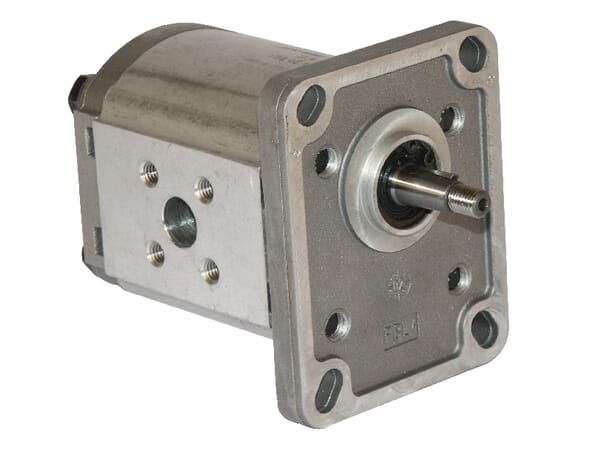

Casappa Motor PLM10.6,3R0-81E1-LBA/BB-N-EL PLM106R81E1
£376.69 excl.
£452.03 incl.
In stock
Expected to ship on Monday 21 September
BPA000340510

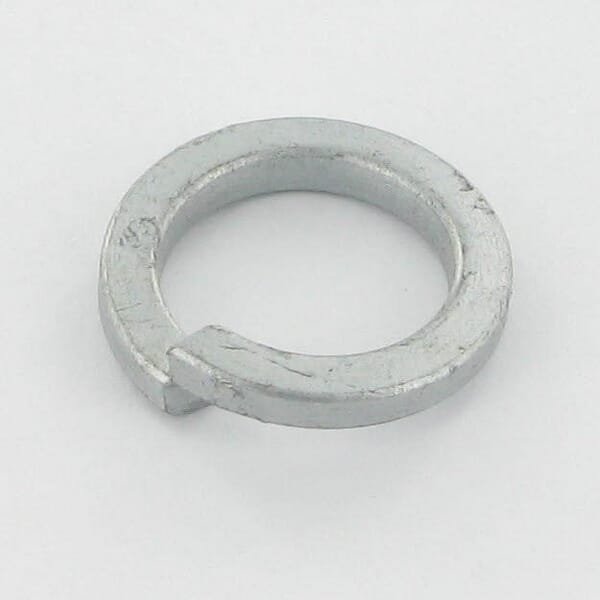

Casappa Lock washer GR.2 PLP92020
£0.06 excl.
£0.07 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000358566
Casappa Support bearing SFLF
£161.98 excl.
£194.38 incl.
In stock
Expected to ship on Friday 18 September
BPA000340521

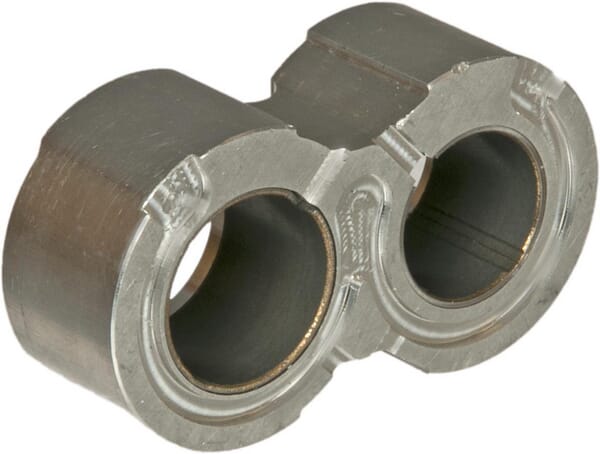

Casappa Thrust plate PL20 S 22.22 PLP92025930042
£65.70 excl.
£78.84 incl.
In stock
Expected to ship on Monday 21 September
BPA000340611

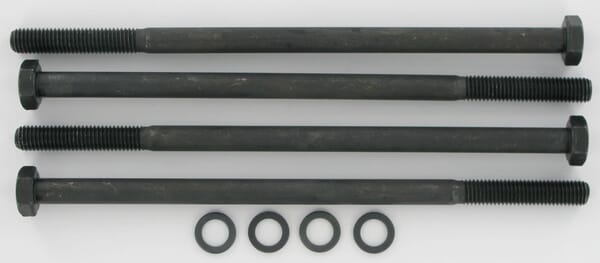

Casappa Tie bolts polaris 20 M10x210 PLP920M10210
