£299.98
excl. VAT
£359.98 incl. VAT
£359.98
incl. VAT
£299.98 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

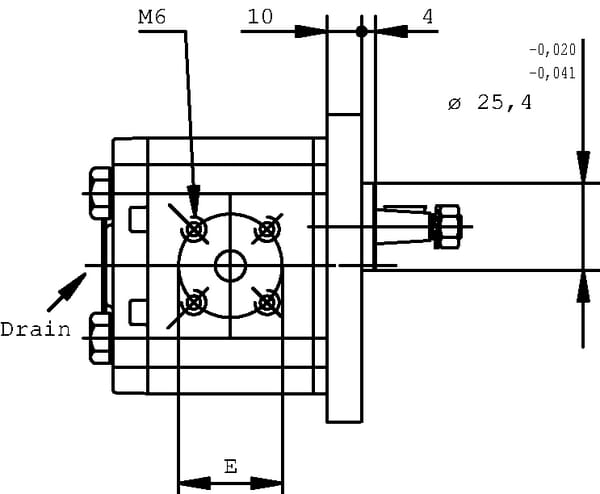

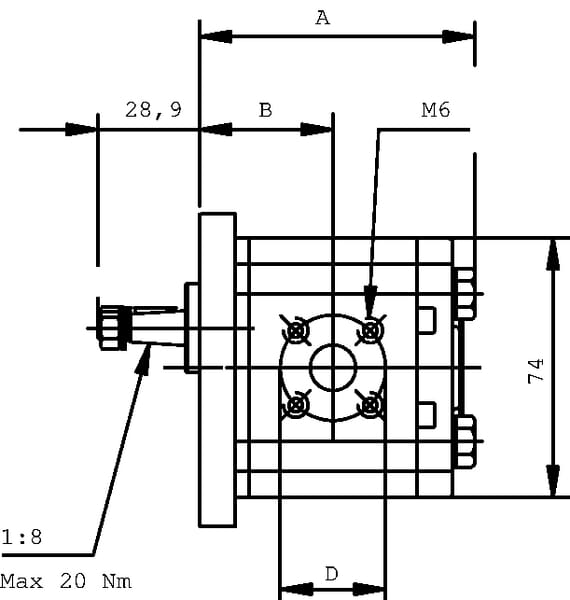

| AHousing length | 95 mm |
|---|---|
| BConnection port to flange distance | 46 mm |

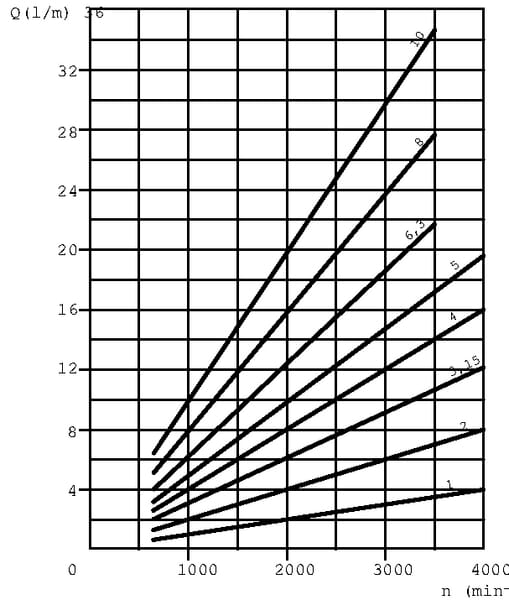

| Displacement | 10.67 cm³/rev |
| DSuction port bolts circle diameter | 30 mm |
| EPressure port bolts circle diameter | 30 mm |
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port size code | 1G08 |
| Max. continous working pressure | 140 BAR |
| Max intermittend working pressure | 160 BAR |
| Max pressure peak | 170 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 650 r/min |

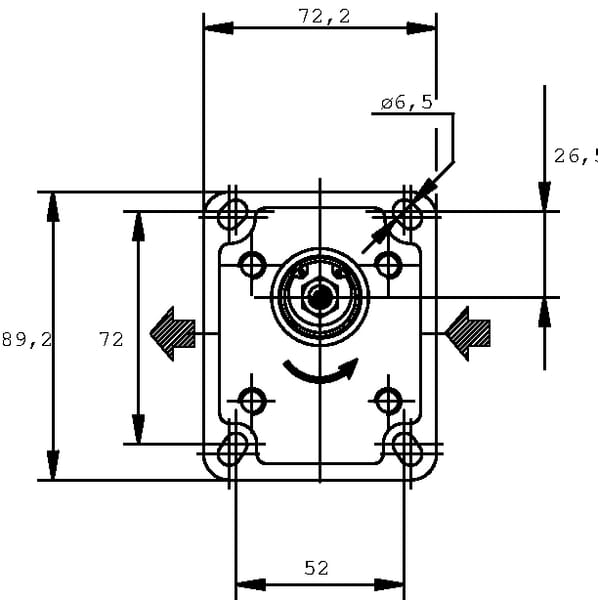

| Mounting diameter | 25.4 mm |
| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port size code | 1G08 |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |

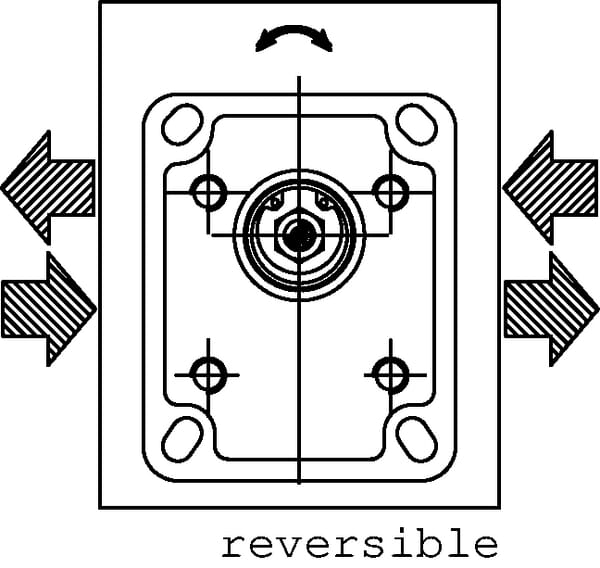

| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GQ06
OMT Flange angled 3/8 1GQ06
£10.61 excl.
£12.73 incl.
1GQ06ST
OMT Flange angled steel 3/8 1GQ06ST
£20.53 excl.
£24.64 incl.
1GQ08
OMT Flange angled 1/2 1GQ08
£8.61 excl.
£10.33 incl.
1GQ08ST
OMT Flange angled steel 1/2 1GQ08ST
£20.53 excl.
£24.64 incl.
PLP10E1GASK

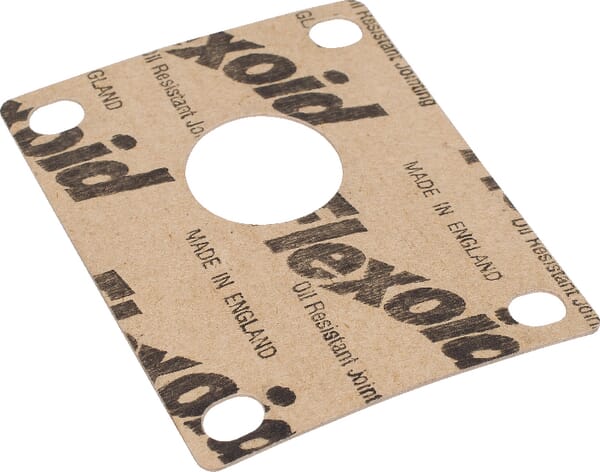

MP Filtri Seal size 1, Euro. standard E1 PLP10E1GASK
£0.69 excl.
£0.83 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1256 g |
| Dimensions | 116 × 89 × 73 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301002

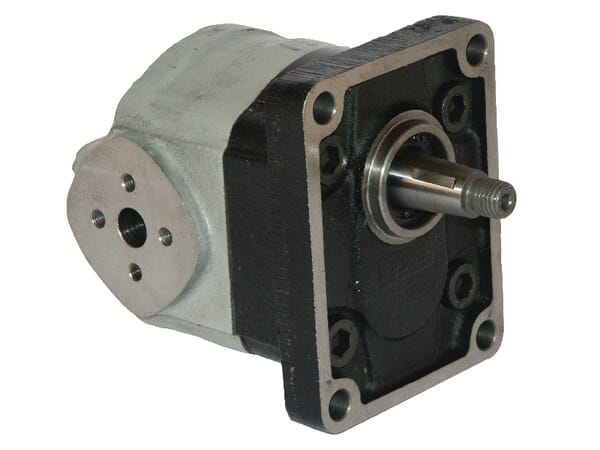

Casappa Motor KM 20.6 RO-82E2-LEA/EA KM2006R82E2
£556.88 excl.
£668.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301300

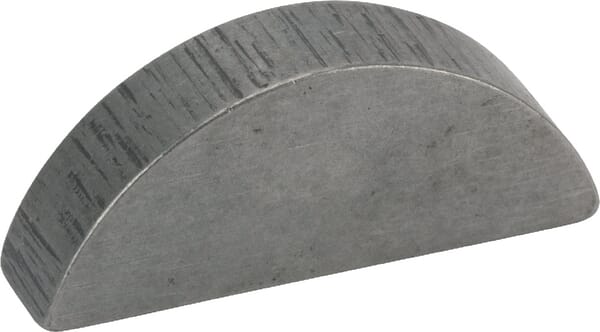

Casappa Woodruff key KP/KM 30 KP94025
£6.04 excl.
£7.25 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340109
Casappa Motor PLM20.6,3R0-82E2-LEA/EA-N PLM206R82E2
£250.59 excl.
£300.71 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340642
Casappa Woodruff Key PLP/PLM 30 PLP93025
£2.39 excl.
£2.87 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340193

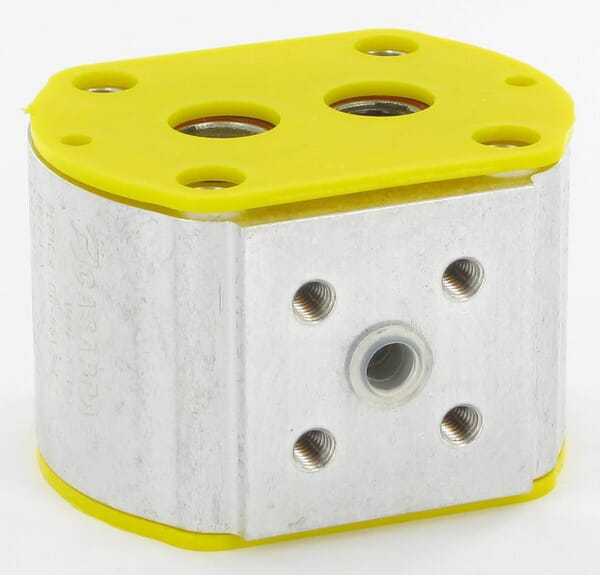

Casappa Rear section PLP10.4 D0-88V6-LBB/BA-N-I FS PLP104DII
