£239.66
excl. VAT
£287.59 incl. VAT
£287.59
incl. VAT
£239.66 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

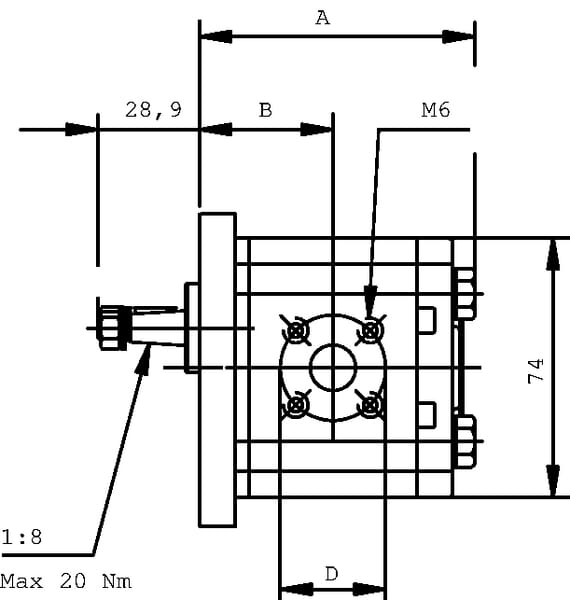

| AHousing length | 73 mm |
|---|---|
| BConnection port to flange distance | 35 mm |

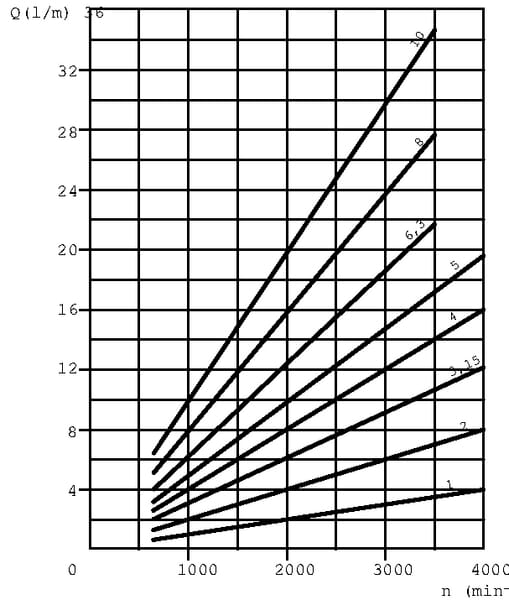

| Displacement | 3.34 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port thread diameter | 3/8 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 260 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 290 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |

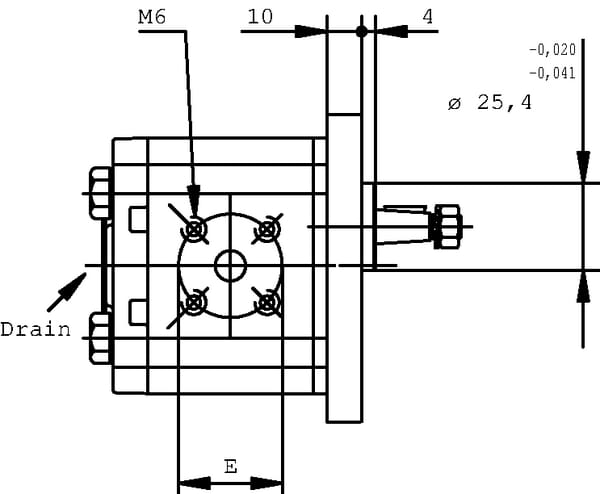

| Mounting diameter | 25.4 mm |

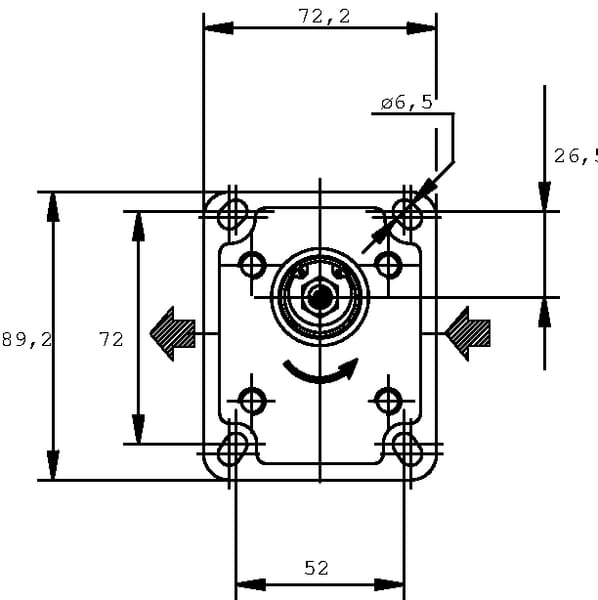

| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 932 g |
| Dimensions | 101 × 90 × 89 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340059

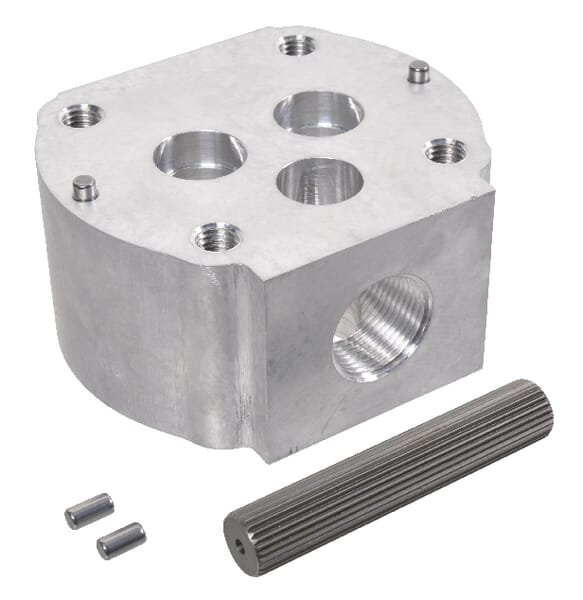

Casappa Inlet section middle PLD : 5 s PLD920CM
£133.69 excl.
£160.43 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340423
Casappa Pump PLP30.38D0-56B3-LBM/BL-N PLP3038D056B3
£586.08 excl.
£703.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340674

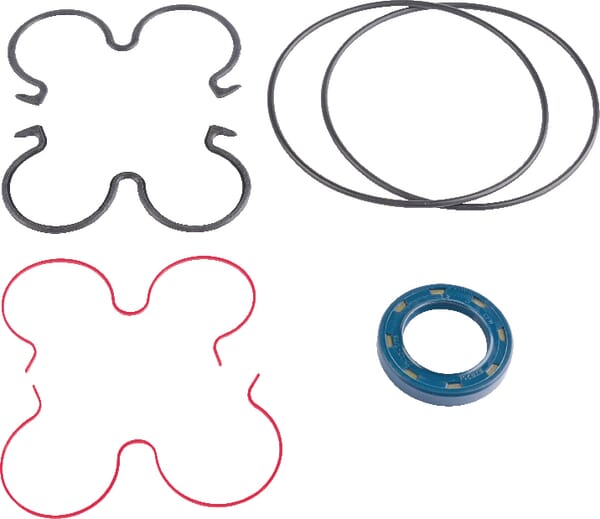

Casappa Seal kit Polaris 30-84E4 PLP93584E4
£33.88 excl.
£40.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340603

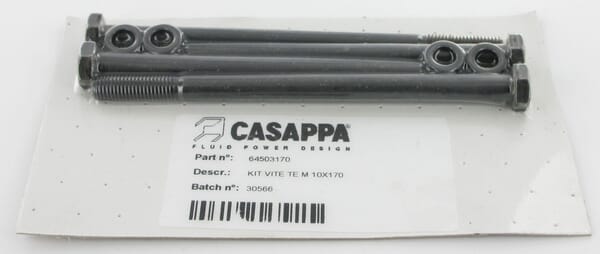

Casappa Tie bolts polaris 20 M10x170 PLP920M10170
£17.50 excl.
£21.00 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340389

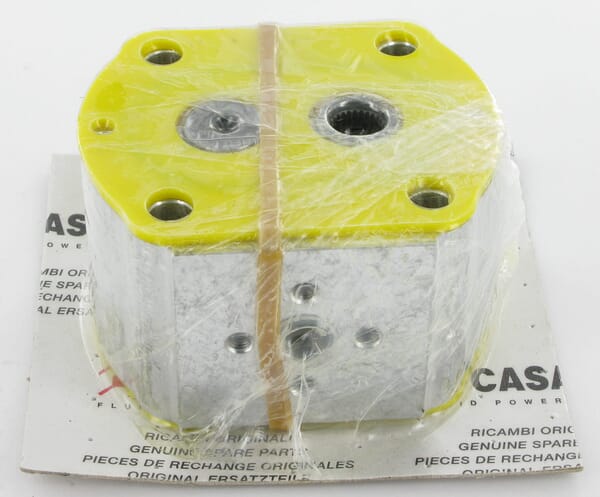

Casappa Tandem Pump PLP20.8-D0-86-S6-LEA/EA-N-I-FS PLP208DII
£261.56 excl.
£313.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340035

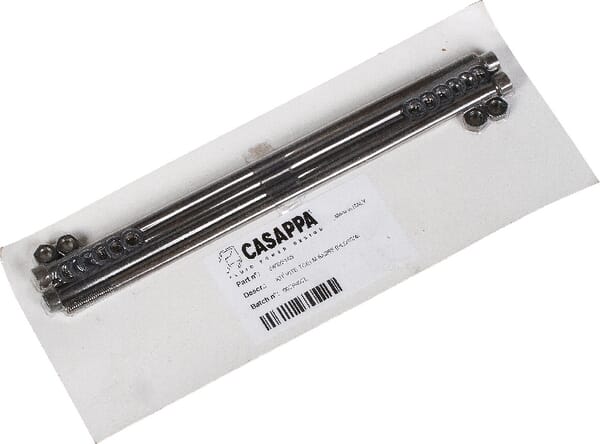

Casappa Tie bolts kit PLD10/4 M8x285 PLD9104BEV
