£247.74
excl. VAT
£297.29 incl. VAT
£297.29
incl. VAT
£247.74 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

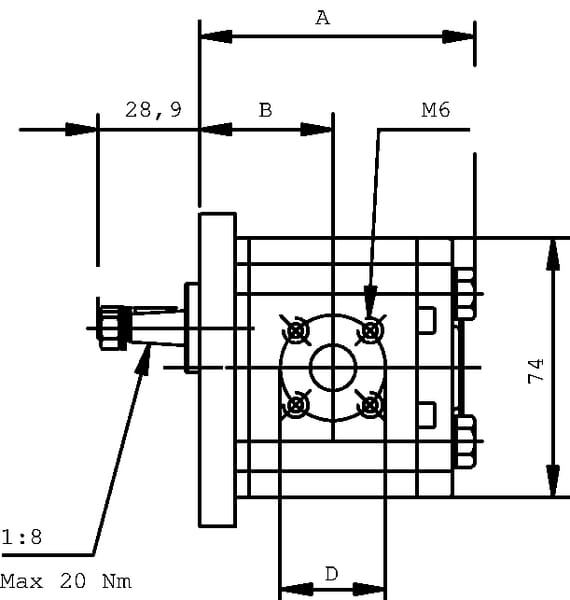

| AHousing length | 88.5 mm |
|---|---|
| BConnection port to flange distance | 42.8 mm |

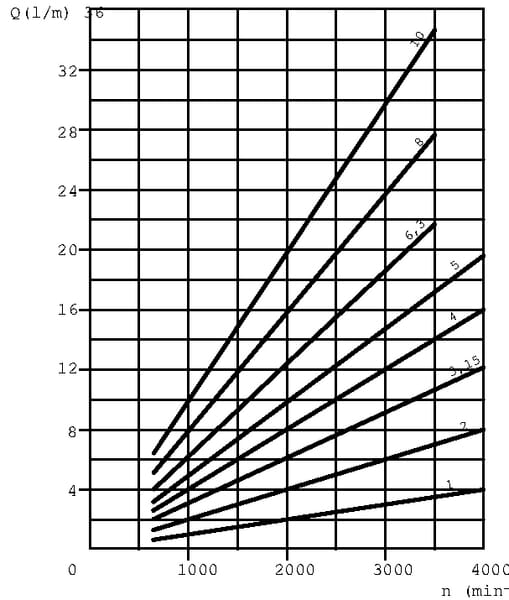

| Displacement | 8.51 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 180 BAR |
| Max intermittend working pressure | 200 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 650 r/min |

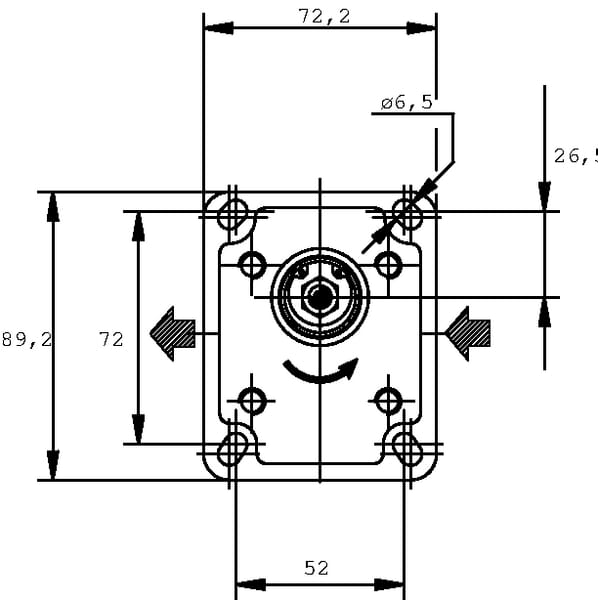

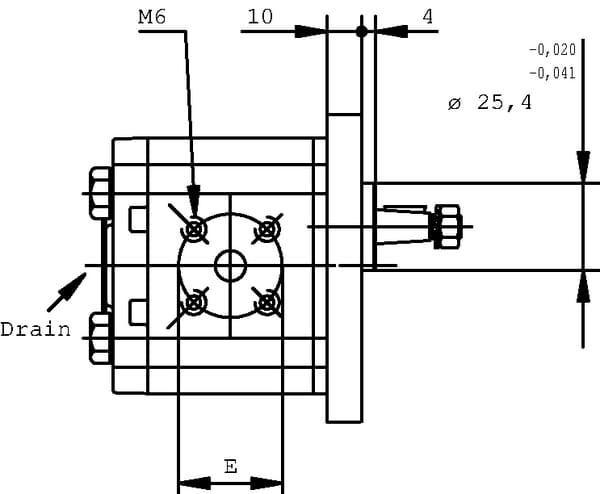

| Mounting diameter | 25.4 mm |
| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1163 g |
| Dimensions | 129 × 89 × 75 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340367
Casappa Pump PLP20.6,3D0-82E2-LEA/EA-E PLP206D082E2
£251.42 excl.
£301.70 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000301256

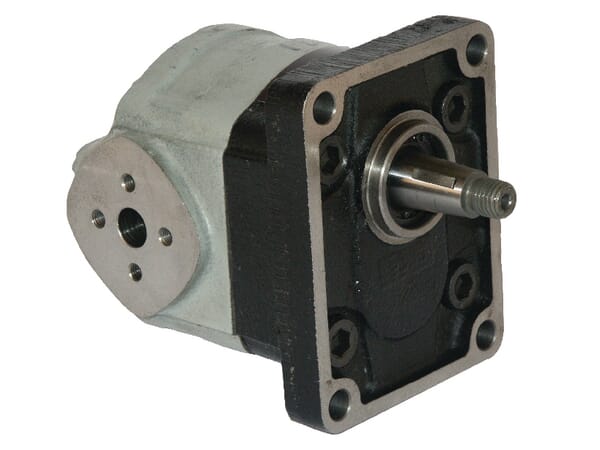

Casappa Hydraulic Pump KP2020D082E2
£431.77 excl.
£518.12 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340352

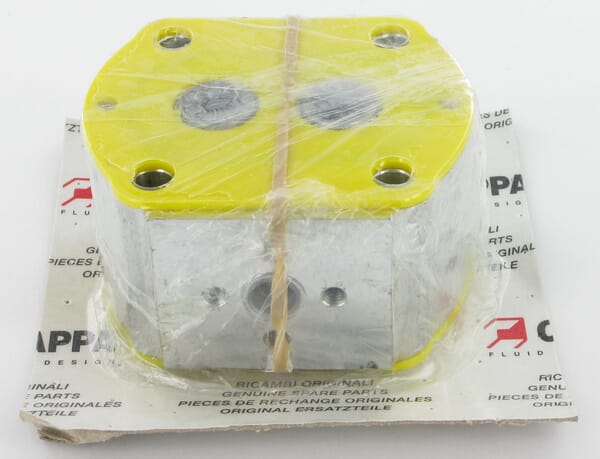

Casappa Tandem Pump PLP20.4-D0-86-S6-LEA/EA-N-I-FS PLP204DII
£233.79 excl.
£280.55 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000279330
Casappa Pump FP30.51B0-16Z0-LGF/GF-x FP3051B116Z0
£1,304.94 excl.
£1,565.93 incl.
In stock
Expected to ship on Friday 18 September
BPA000301295
Casappa Seal kit KAPPA 20-82E2 KP92082E2
£25.48 excl.
£30.58 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340138

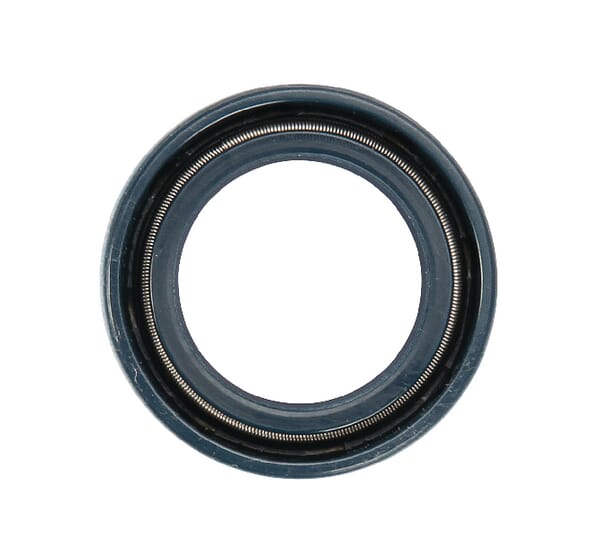

Casappa Shaft Seal BAD 20x30x7 PLM92010
