£1,304.94
excl. VAT
£1,565.93 incl. VAT
£1,565.93
incl. VAT
£1,304.94 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| AHousing length | 190.5 mm |
|---|---|
| BConnection port to flange distance | 128.5 mm |
| Benefits | Wide range of applications, Compact design |
| CMain port thread diameter | 1 Inch |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 51.83 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | Z0 |
| Flange type norm | ISO |
| Housing material | Cast iron |
| Max. continous working pressure | 240 BAR |
| Max intermittend working pressure | 260 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 80 mm |
| Mounting holes vertical distance | 80 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Bi-directional |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 36 mm |
| Shaft number of teeth | 8 |
| Shaft type | Splined 8T |
| Shaft type code | 16 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16501 g |
| Dimensions | 315 × 155 × 155 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340440

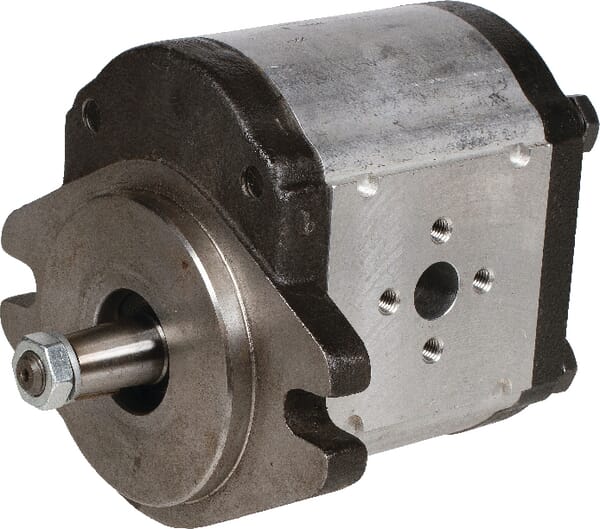

Casappa Pump PLP30.43S0-83U3-LGF/GE-N PLP3043S083E3U3
£572.10 excl.
£686.52 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279363

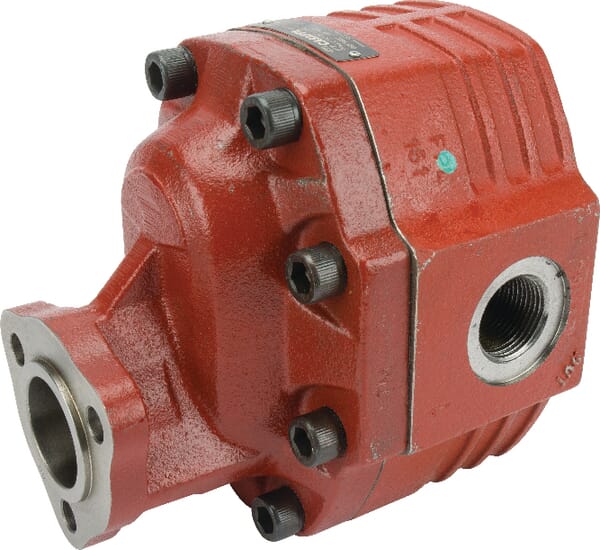

Casappa Pump FP40.63D0-19T1-LGF/GE-N FP4063D
£923.92 excl.
£1,108.70 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340430
Casappa Pump PLP30.43/20.6,3 D/FS-L PLP30432063D083E3
£732.12 excl.
£878.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340634

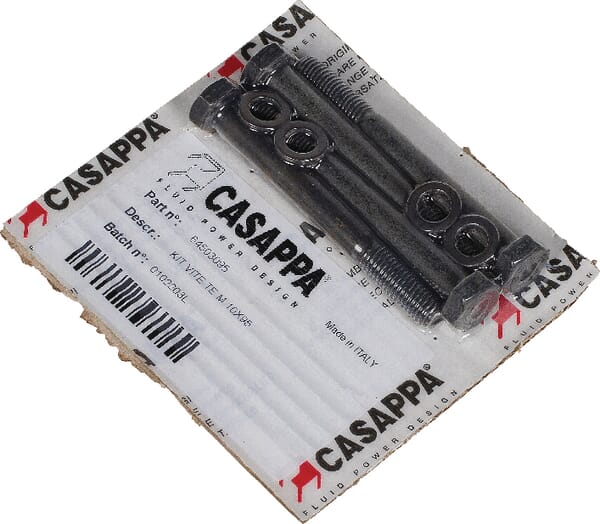

Casappa Bolt 20 M10x95 Polaris PLP920M1095
£6.00 excl.
£7.20 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340290

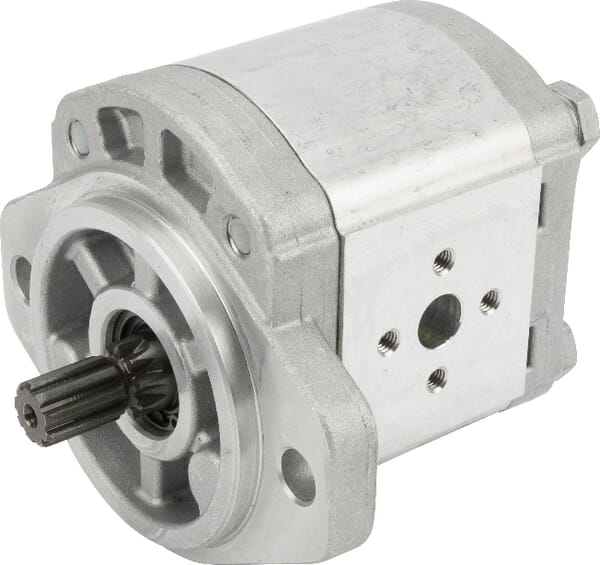

Casappa Pump PLP20.19S0-03S1-LEB/EA-N PLP2019S003S1
£346.66 excl.
£415.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340332

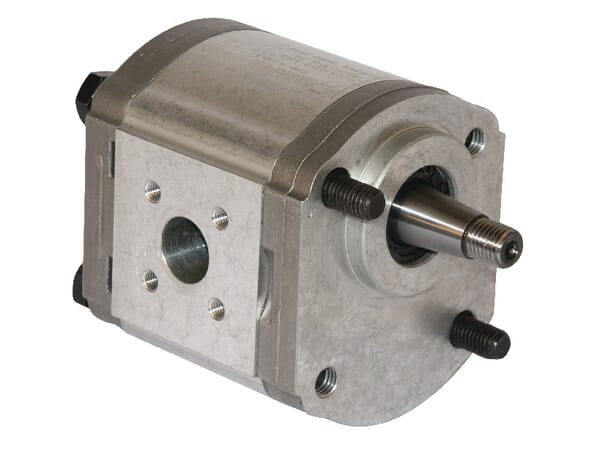

Casappa Pump PLP20.25S0-54B5-LBE/BC-N PLP2025S054B5
£369.47 excl.
£443.36 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000330162
Kramp O-ring 5.5x1.6mm 90 shore black 10x OR55016090P010
£52.08 excl.
£62.50 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000327453

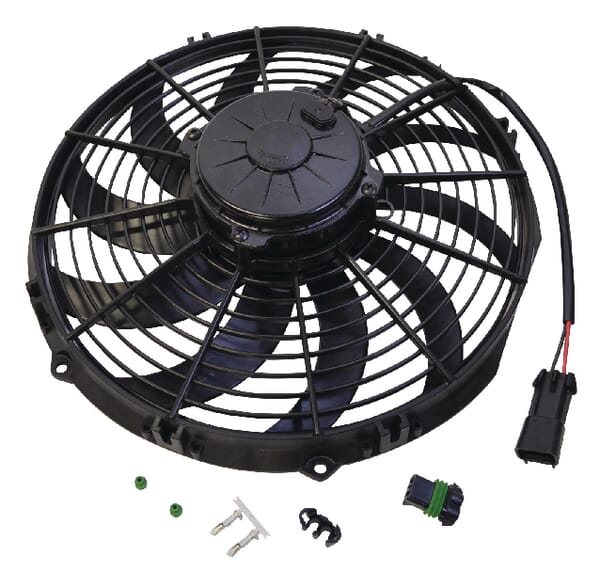

Emmegi MOTOR/WAAIER/ROOST HPA12-12VDC OK9HPA1230
