£324.06
excl. VAT
£388.87 incl. VAT
£388.87
incl. VAT
£324.06 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

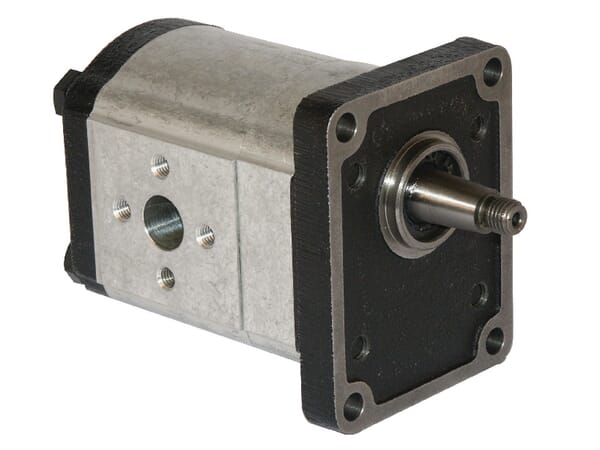

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Connection port to flange distance | 49.3 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 11.23 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 103.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Suction port bolts circle diameter | 40 mm |
| Tandem shaft connection | Yes |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2611 g |
| Dimensions | 129 × 118 × 91 mm |
| Dangerous goods | No |
You might also like
BPA000340486
Casappa Bolt set M8X225(IV) PLP910M8225
£33.86 excl.
£40.63 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340419
Casappa Tandem Pump PLP30.34-D0-65-M6-LED/EB-N-I-FS PLP3034DII
£473.65 excl.
£568.38 incl.
In stock
Expected to ship on Tuesday 22 September

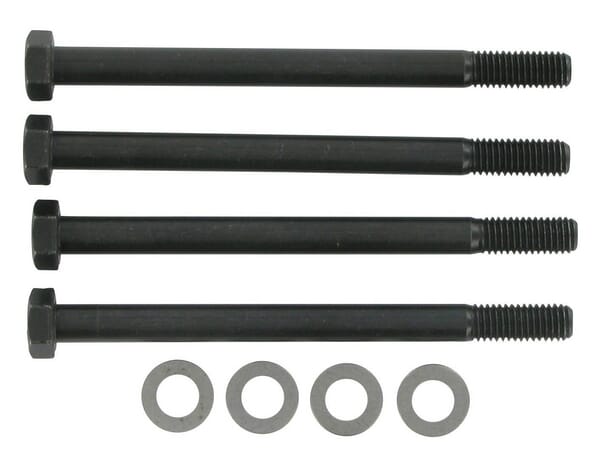

BPA000340484
Casappa Bolt set M8X175 (III) PLP910M8175
£33.86 excl.
£40.63 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

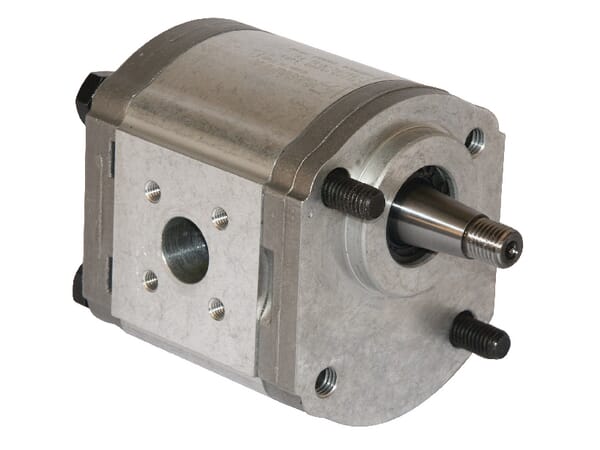

BPA000340285
Casappa Pump PLP20.16S0-54B5-LBE/BC-N- PLP2016S054B5
£338.63 excl.
£406.36 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

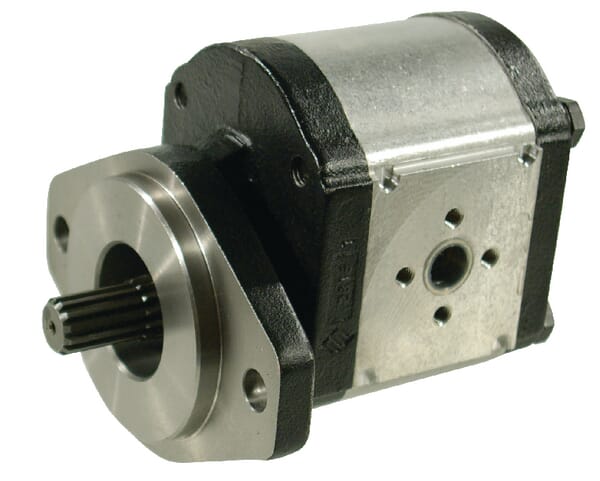

BPA000340239
Casappa Pump PLP20.14D004S5-LEB/EANFS PLP2014D004S5
£441.40 excl.
£529.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340195
Casappa Pump PLP10.5 D0-81E1-LBB/BA-N- PLP105D081E1
£214.39 excl.
£257.27 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed

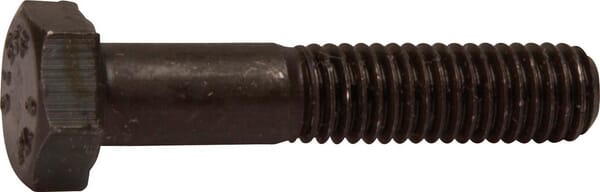

BPA000204134
Kramp Hexagon head bolt DIN960 M20x1.50x100 10.9 9602015100109B
£4.15 excl.
£4.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000328857
Kramp O-ring 15x1.5 75 shore Viton 10x OR15150VP010
£9.72 excl.
£11.66 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000336281
Kramp PA 12 hose 10X8 50m black PA108BK50
£2.73 excl.
£3.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101113
Corteco Seal B1SLDRW 60x90x13 71ACM 40001260N
£13.26 excl.
£15.91 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000156406
Unbranded S16 T piece 20x 1/2", male 654740SL
£3.32 excl.
£3.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000217530
Kverneland Hose 2 snk 1/4" 3300mm 1/4" b A144413200
£101.30 excl.
£121.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000042935
Kramp Veenhuis yellow from 1986 1L 133008KR
£16.42 excl.
£19.70 incl.
In stock
Expected to ship on Friday 25 September
BPA000197049
Kramp Hexagon socket head cap screw DIN912 M5x70 steel 12.9 912570129B
£0.32 excl.
£0.38 incl.
Backorder available
Usually ships within 3–8 weeks

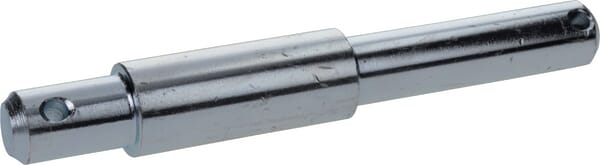

BPA000396764
