£324.06
excl. VAT
£388.87 incl. VAT
£388.87
incl. VAT
£324.06 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

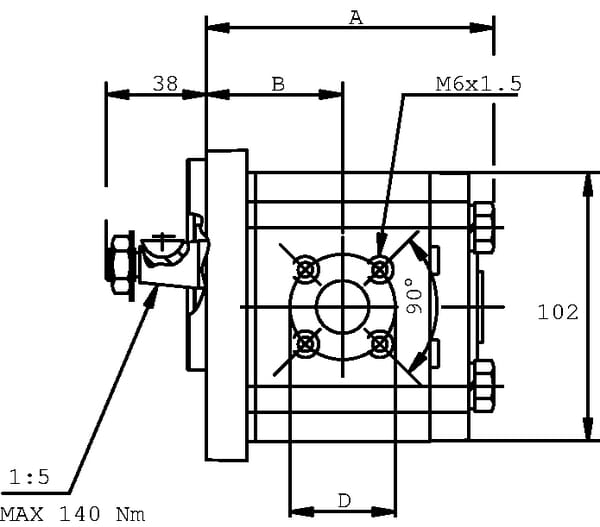

| BConnection port to flange distance | 49.3 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |

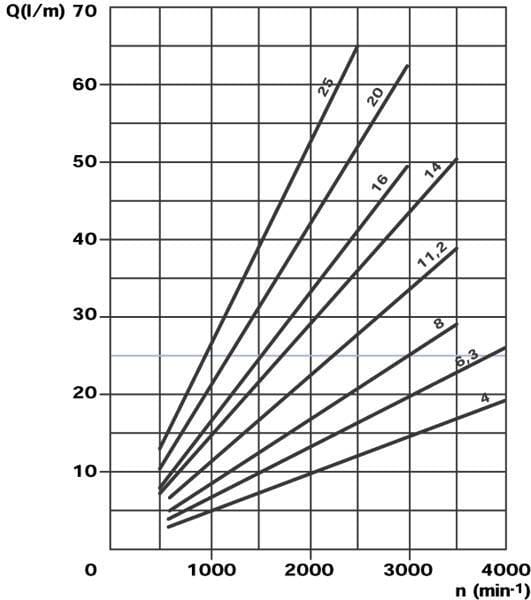

| Displacement | 11.23 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 103.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |

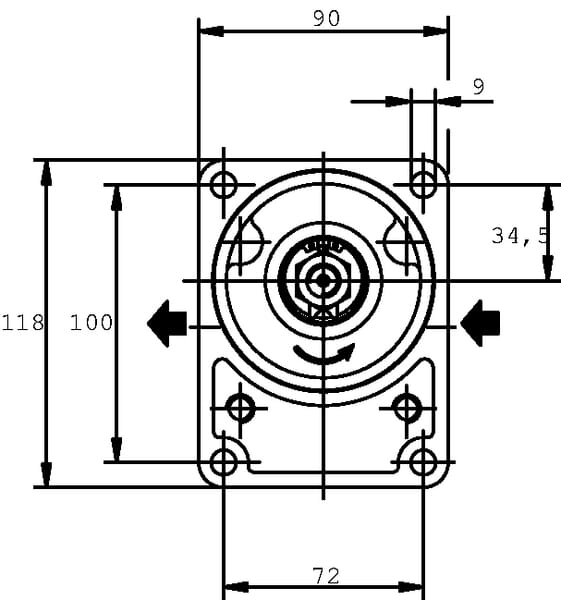

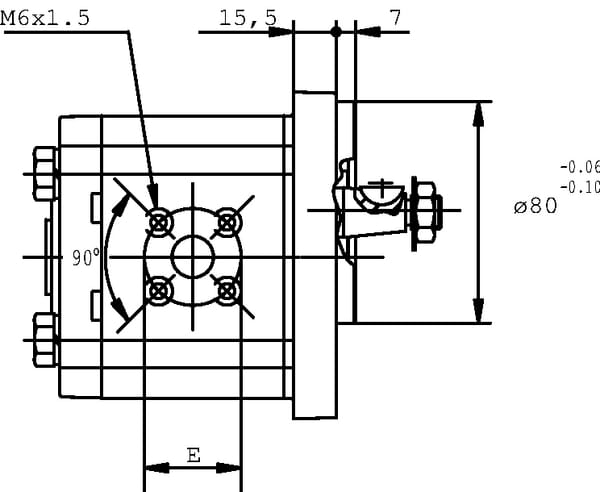

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Tandem shaft connection | Yes |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.

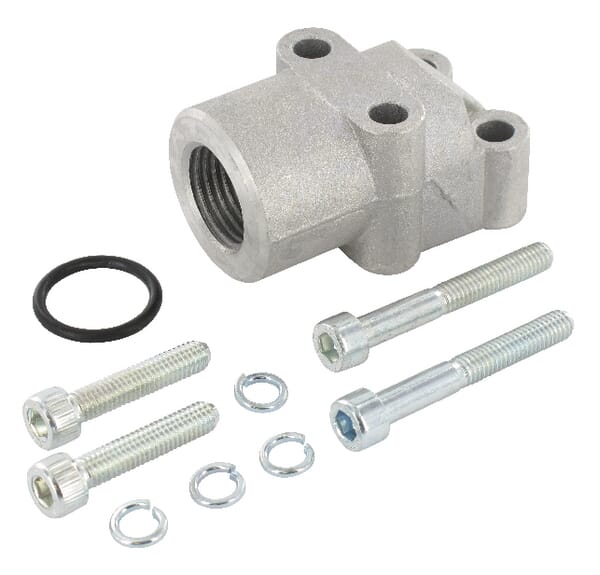

1GB08
OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12
OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010

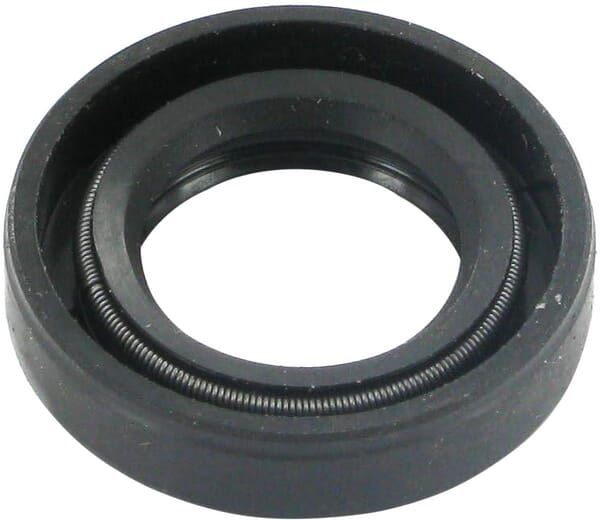

Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026
Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.

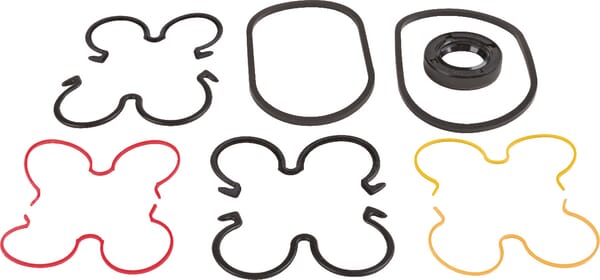

PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2529 g |
| Dimensions | 140 × 120 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000340038
Casappa Inlet PLD 10/ C-GD PLD910C
£68.20 excl.
£81.84 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000301027

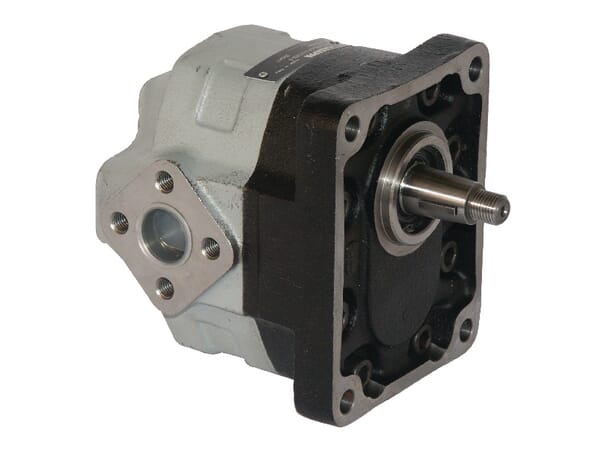

Casappa Gear motor KM30.34R0-83-E3-LEB/ED-N-C4 (AGR) KM3034L083E3
£439.32 excl.
£527.18 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340597

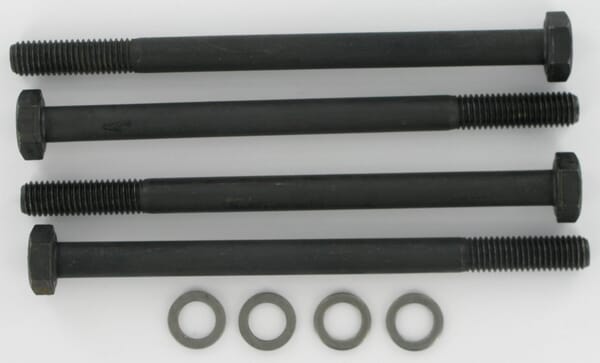

Casappa Tie bolts Polaris 20 M10x145 PLP920M10145
£17.41 excl.
£20.89 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping

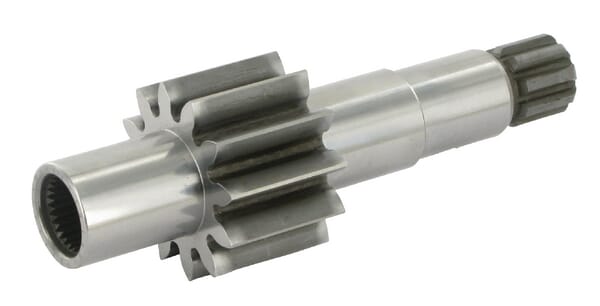

BPA000340507
Casappa Drive shaft 16 cc 12/FS PLP9201612FS
£145.83 excl.
£175.00 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000344304

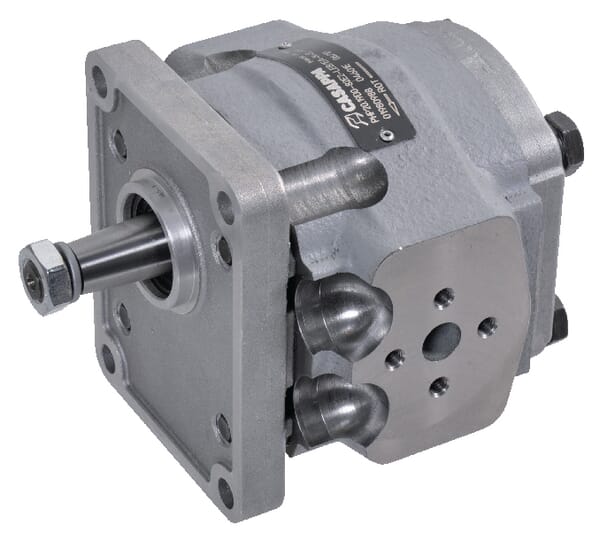

Casappa Gear Pump PHP20.23DO-82E2-LEB/ PHP2023D082E2FS
£438.20 excl.
£525.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

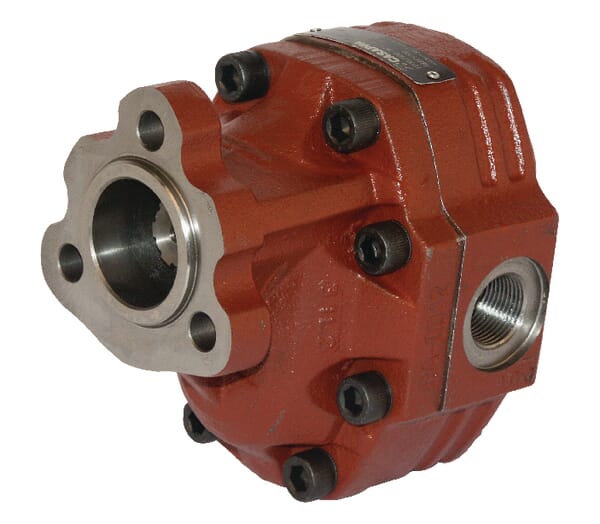

BPA000279336
