£697.35
excl. VAT
£836.82 incl. VAT
£836.82
incl. VAT
£697.35 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Connection port to flange distance | 55.5 mm |
|---|---|
| Displacement | 73.82 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 139 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 200 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 350 r/min |

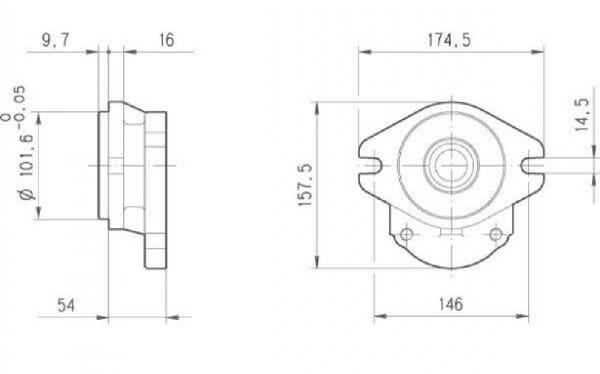

| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 51 mm |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

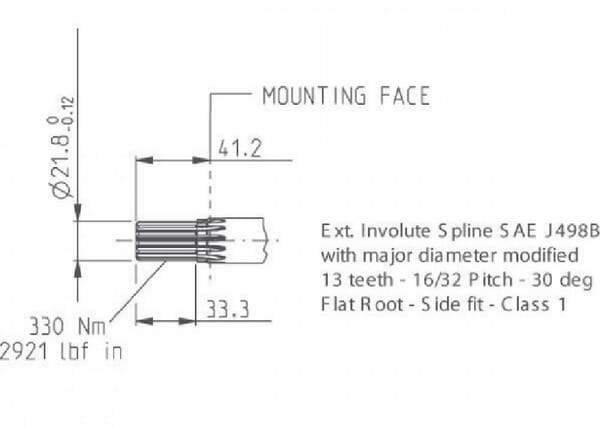

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 62 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12506 g |
| Dimensions | 243 × 167 × 152 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340402
Casappa Pump PLP30.22D0-04S5-LEF/ED-N-FS PLP3022D004S5
£496.83 excl.
£596.20 incl.
In stock
Expected to ship on Thursday 17 September
BPA000301296

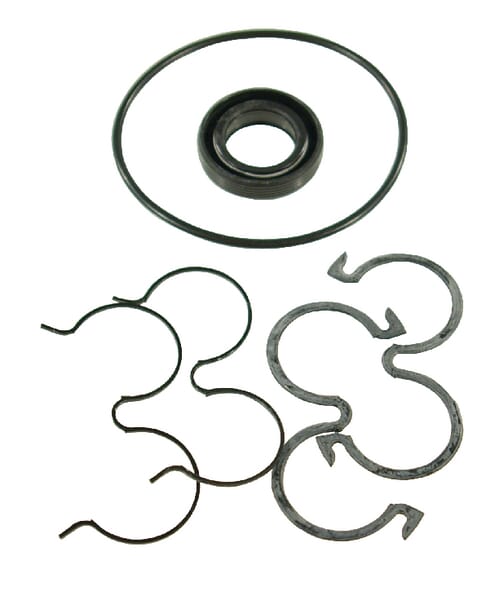

Casappa Seal kit KAPPA 30-83E3 KP93083E3
£23.75 excl.
£28.50 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340088

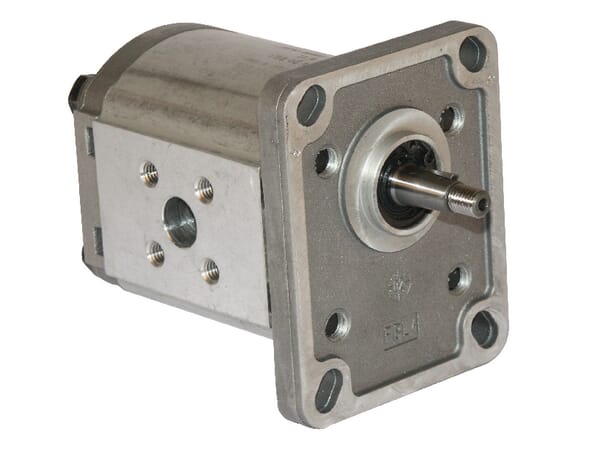

Casappa Motor PLM10.5R0-81E1-LBA/BB-N-EL PLM105R81E1
£332.19 excl.
£398.63 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340115
Casappa Gear motor PLM20.8R082E2DHKR PLM208R82E2DHKR
£434.55 excl.
£521.46 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340196
Casappa Pump PLP10.5 D0-81E1-LGD/GD-N PLP105D081E1G
£225.97 excl.
£271.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340054

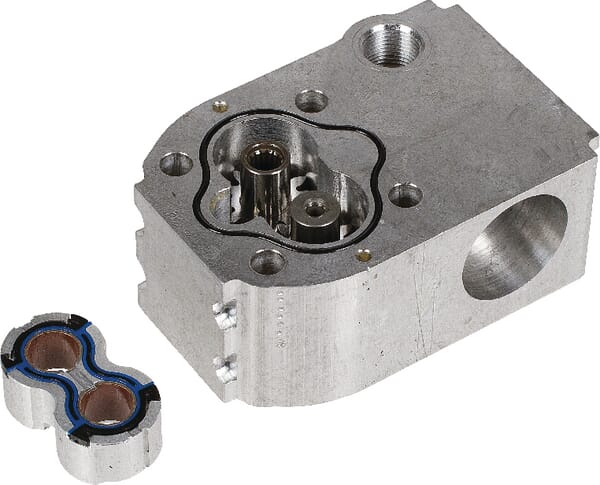

Casappa Section PLD 20.6 / GD-N--C-I-V PLD9206VPE
