£338.64
excl. VAT
£406.37 incl. VAT
£406.37
incl. VAT
£338.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Connection port to flange distance | 54 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 21.14 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 115.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |

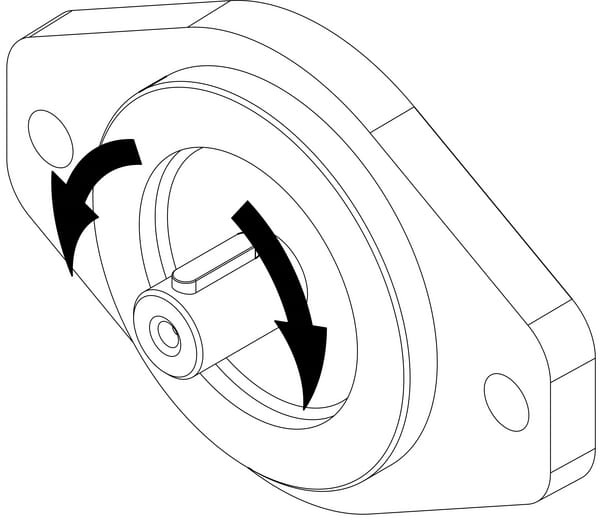

| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2889 g |
| Dimensions | 166 × 111 × 96 mm |
| Dangerous goods | No |
You might also like

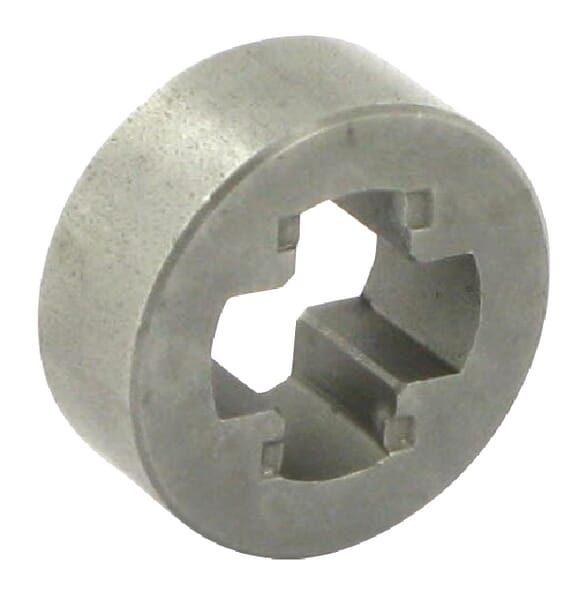

BPA000340557
Casappa Oldham Coupling 95/B17 gr.2 PLP920B17
£24.90 excl.
£29.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000301058
Casappa Seal kit KM.30-83E3-L-C16 KM93086E3AFD
£35.77 excl.
£42.92 incl.
Backorder available
Usually ships within 3–8 weeks

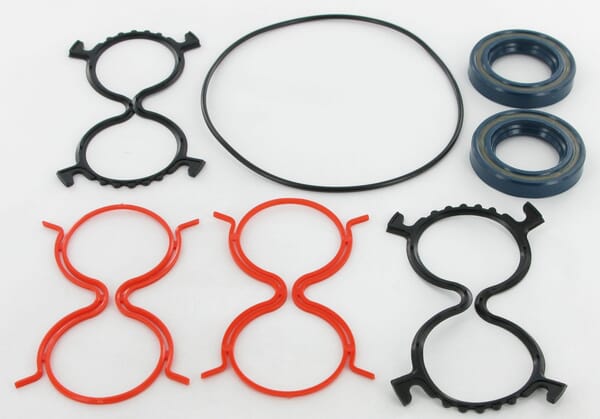

BPA000301063
Casappa Seal kit KM40 R 85E5 KM94085E5R
£30.25 excl.
£36.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

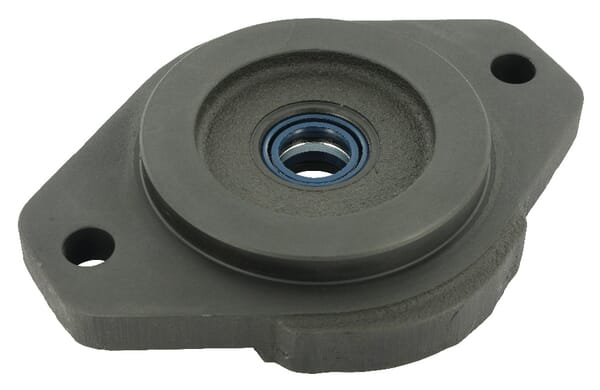

BPA000340638
Casappa Mounting flange PLP20/S5 cpl. PLP920S5
£188.54 excl.
£226.25 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

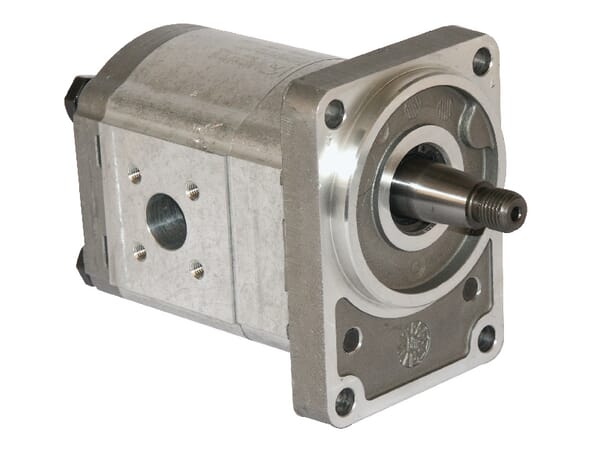

BPA000340335
Casappa Pump PLP20.25-S3-55-B2 PLP2025S355B2
£508.90 excl.
£610.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

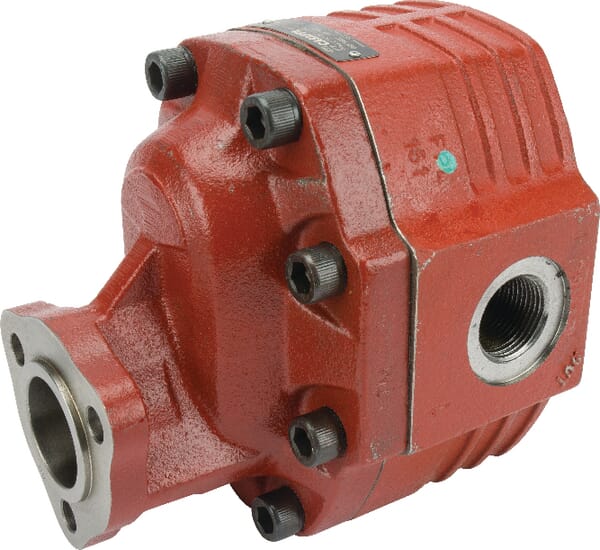

BPA000279356
