£366.80
excl. VAT
£440.16 incl. VAT
£440.16
incl. VAT
£366.80 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 54 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 21.14 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Aluminium |
| Flange code | B5 |
| Flange type norm | German |
| Housing length | 115.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | 8719607040341 |
|---|---|
| Unit of measure | EA |
| Weight | 3000 g |
| Dimensions | 161 × 105 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000340142

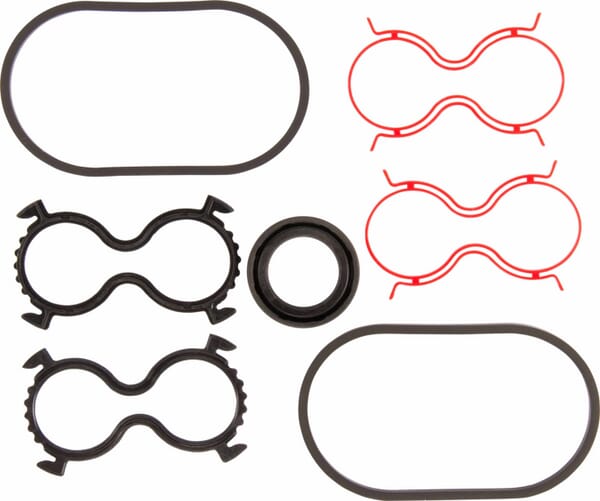

Casappa Seal kit PLM20-49S1 R PLM92049S1RAFD
£20.96 excl.
£25.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285989
Casappa Pump HDP35.50 D0-06S8 LME/MD-N HDP3550D
£1,221.23 excl.
£1,465.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340632

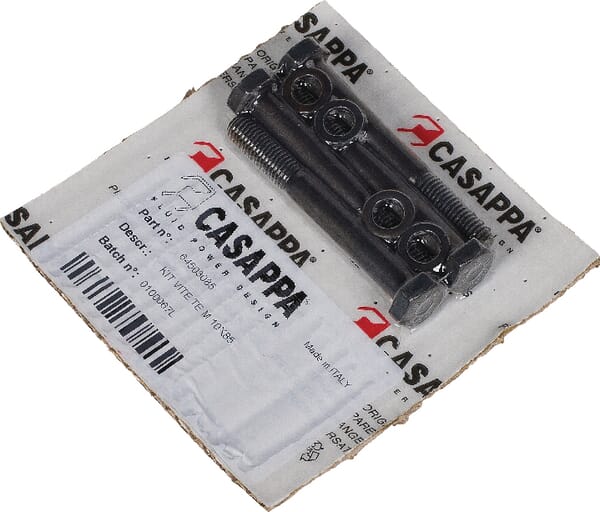

Casappa Bolt 20 M10x85 Polaris PLP920M1085
£5.82 excl.
£6.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340275
Casappa Tandem Pump PLP20.16-D3-55-B2 PLP2016D355B2
£489.74 excl.
£587.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340050

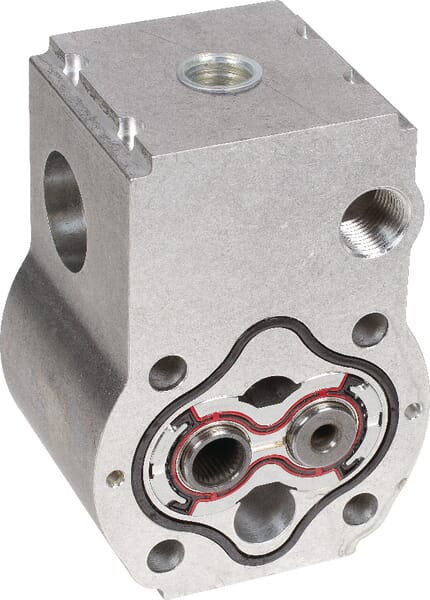

Casappa Section PLD20 20/GD-N-I-VPE PLD92020VPE
