£371.38
excl. VAT
£445.66 incl. VAT
£445.66
incl. VAT
£371.38 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

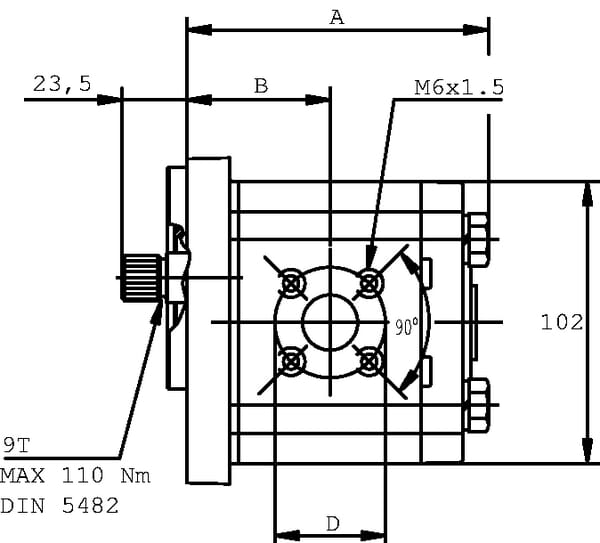

| BConnection port to flange distance | 60.8 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 126.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |

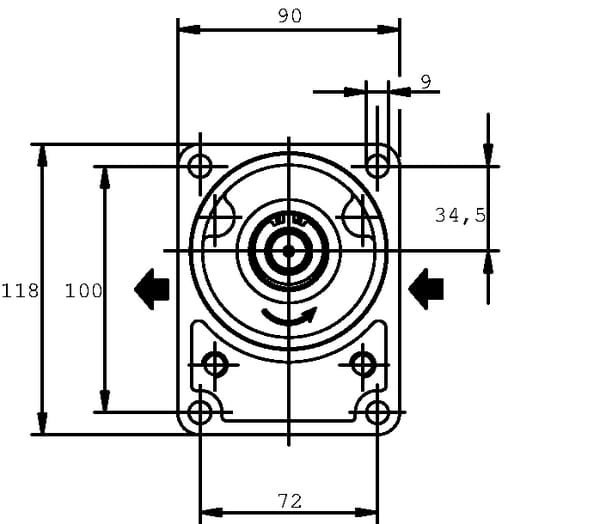

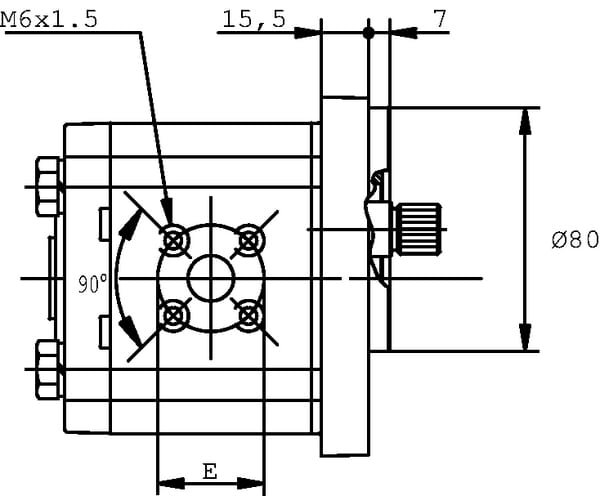

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3237 g |
| Dimensions | 120 × 90 × 152 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301045
Casappa Motor KM40.87R0-85E5-LEG/ED KM4087R085E5
£1,368.77 excl.
£1,642.52 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

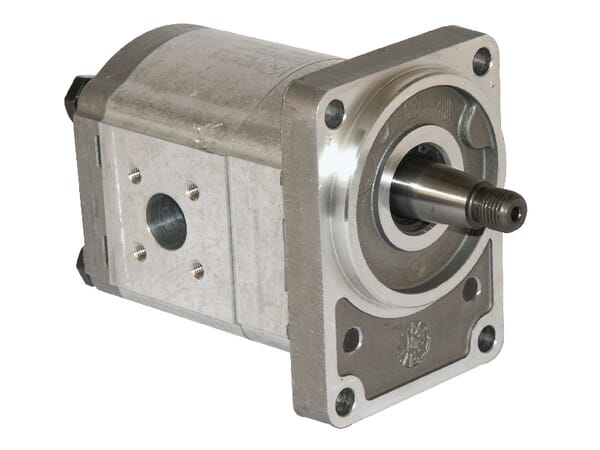

BPA000340399
Casappa Pump PLP20.8-S3-55-B2L PLP208S355B2
£461.47 excl.
£553.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

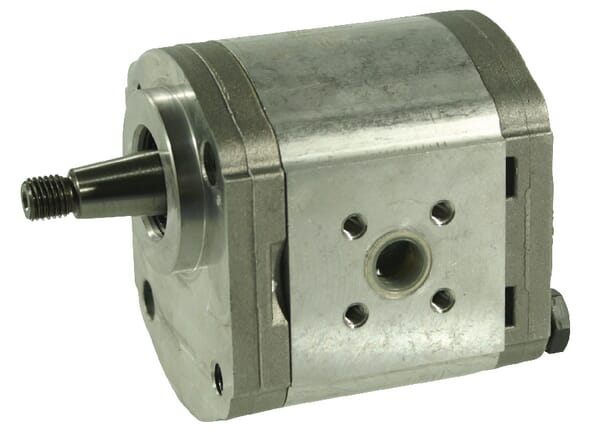

BPA000340366
Casappa Pump PLP20.6,3D0-54B4-LBE/BC-N-EL FS PLP206D054B4
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks

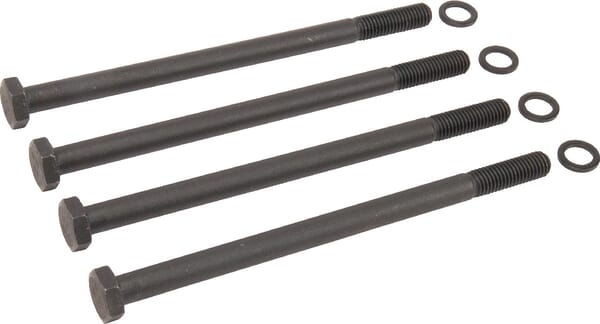

BPA000340630
Casappa Bolt set M10X340 PLP920M10340
£47.88 excl.
£57.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340513

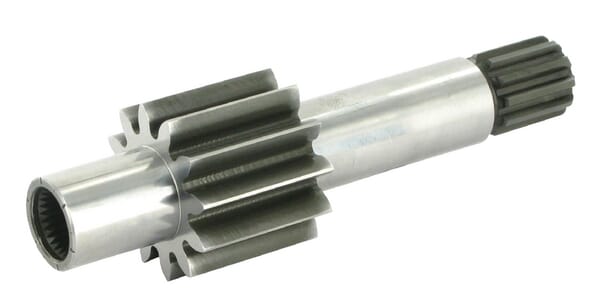

Casappa Drive shaft 20 cc 07/FS PLP9202007FS
£172.35 excl.
£206.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

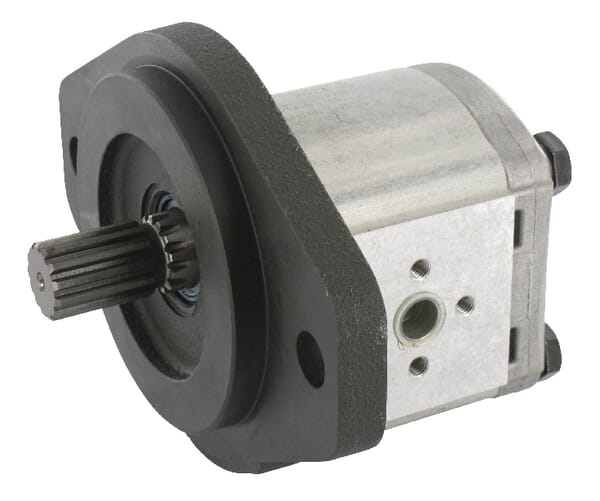

BPA000340226
Casappa Pump PLP20.11-S0-04S5 LEA/EA N PLP2011S004S5
£400.32 excl.
£480.38 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000272858

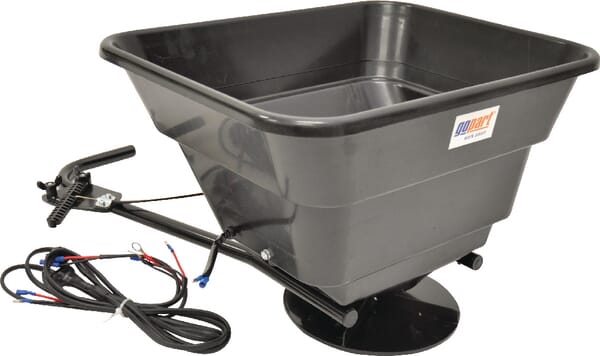

gopart ATV Spreader 43.5L 12V, FGP455500GP
£99.31 excl.
£119.17 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000270541

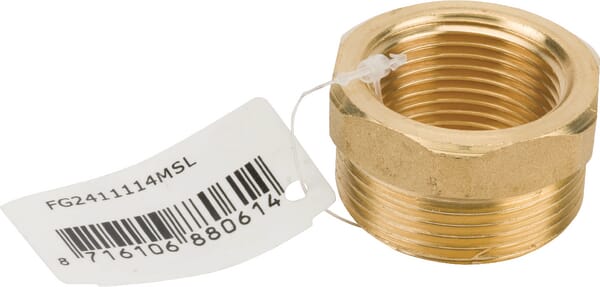

MZ Brass reducer F 1" x M 1 1/4" FG2411114MSL
