£324.06
excl. VAT
£388.87 incl. VAT
£388.87
incl. VAT
£324.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

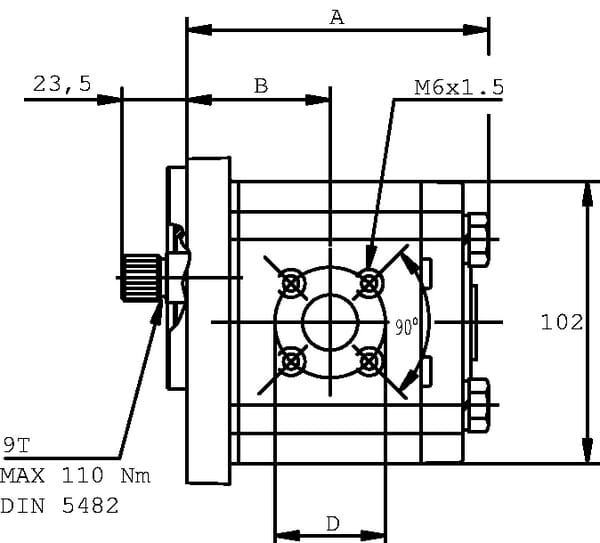

| BConnection port to flange distance | 45.8 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 6.61 cm³/rev |

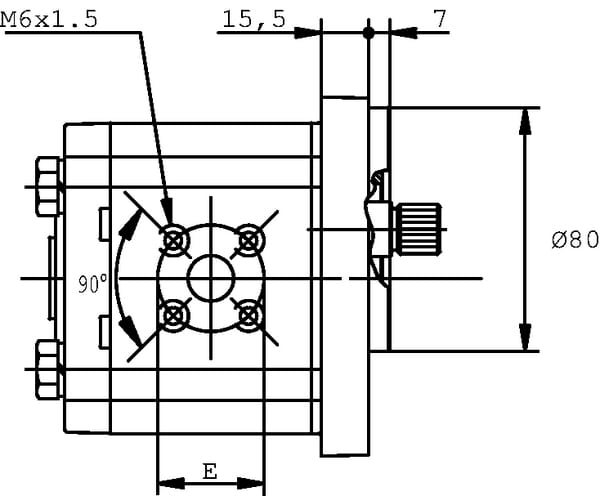

| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 96.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 80 mm |

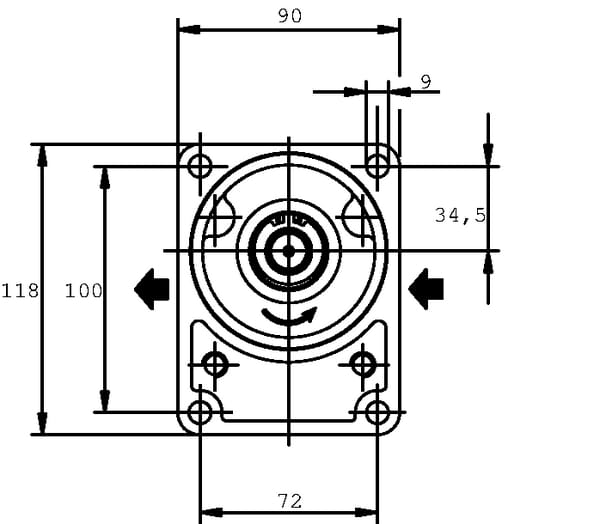

| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2285 g |
| Dimensions | 125 × 120 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping

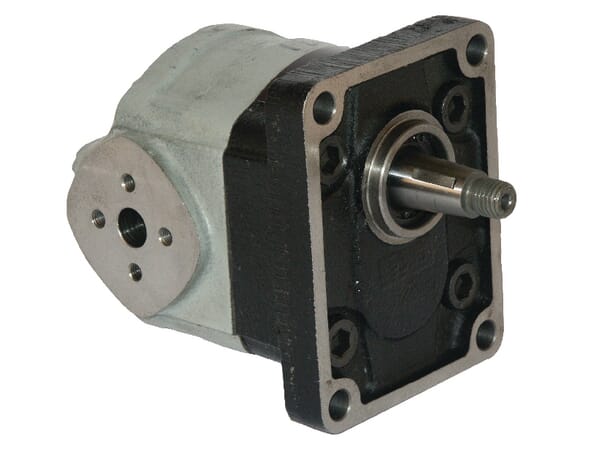

BPA000301009
Casappa Motor KM 20.14 RO-82E2-LEB/EA KM2014R82E2
£572.17 excl.
£686.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340176

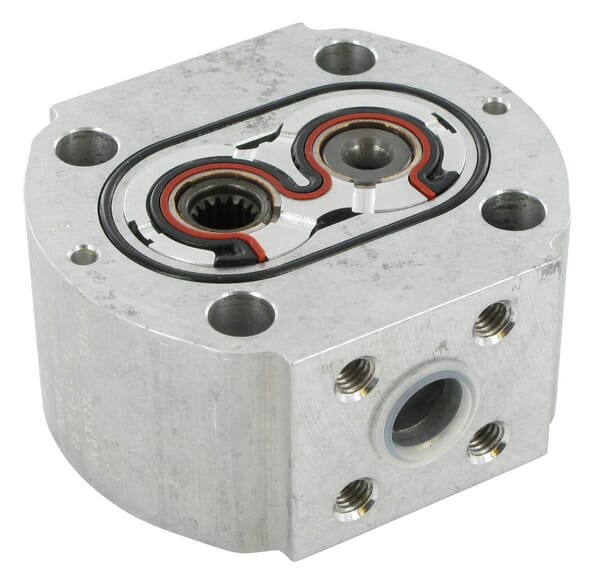

Casappa Gearpump 1 -D0-86E7 PLP101D086E7
£712.49 excl.
£854.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000231958

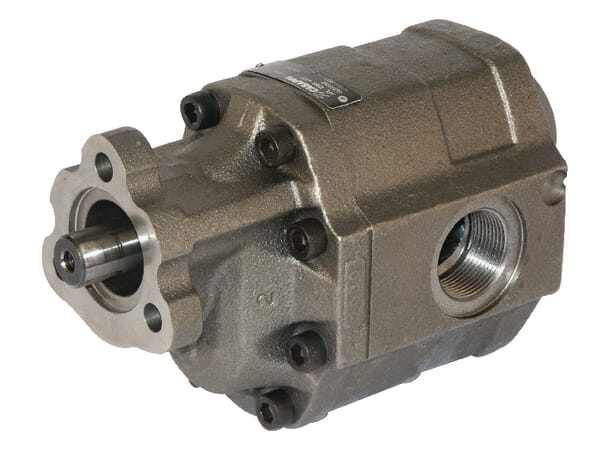

Casappa Pump APL125B0-43T0-N APL125B
£800.58 excl.
£960.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340336
Casappa Tandem Pump PLP20.31 D0-86-S6-LEB/EA-N-I-FS PLP20315DII
£380.37 excl.
£456.44 incl.
Backorder available
Usually ships within 3–8 weeks

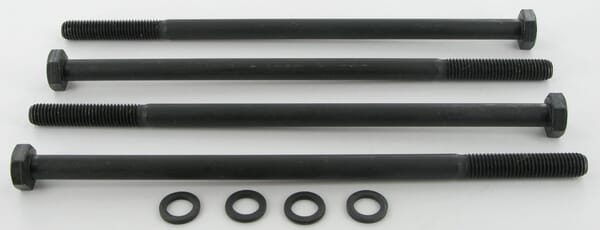

BPA000340613
Casappa Tie bolts polaris 20 M10x220 PLP920M10220
£17.31 excl.
£20.77 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340144

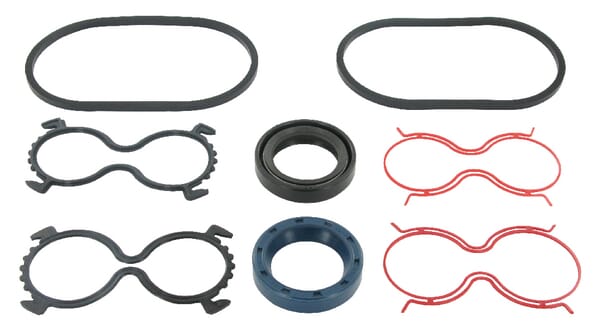

Casappa Seal kit PLM20-53S1-R-D(RNS) PLM92053S1AFD
