Product details
| Displacement | 31.5 cm³/rev |
|---|---|
| Flange and back cover material | n/a |
| Flange code | - |
| Flange type norm | DII |
| Housing material | Aluminium |
| Max. continous working pressure | 130 BAR |
| Max intermittend working pressure | 150 BAR |
| Max pressure peak | 170 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 500 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined |
| Shaft type code | - |
| Suction port bolts circle diameter | 30 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2302 g |
| Dimensions | 105 × 100 × 90 mm |
| Dangerous goods | No |
You might also like

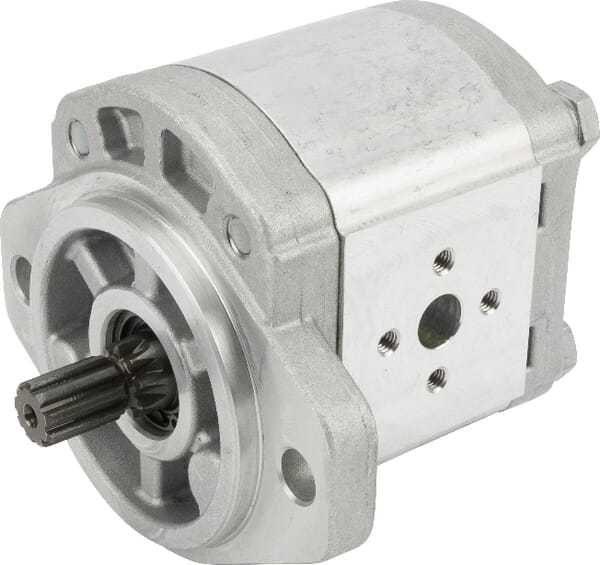

Free shipping
BPA000340236
Casappa Pump PLP20.14D0-03S1-LBE/BC-N-EL PLP2014D003S1LBEBC
£244.06 excl.
£292.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340478
Casappa Tie bolts Polaris 10 M8x130 PLP910M8130
£31.61 excl.
£37.93 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

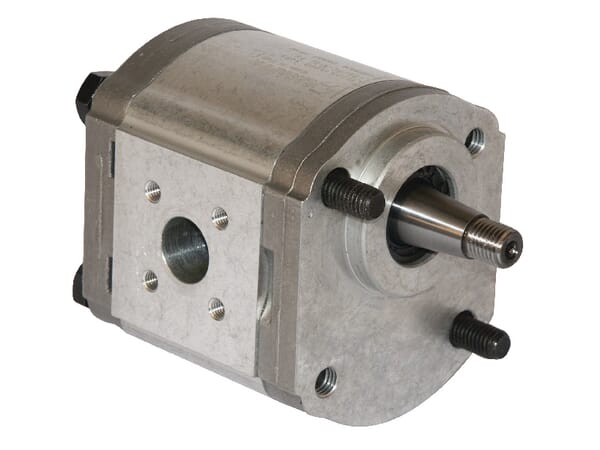

BPA000340296
Casappa Pump PLP20.20D0-54B5-LBE/BC-N- PLP2020D054B5
£320.38 excl.
£384.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

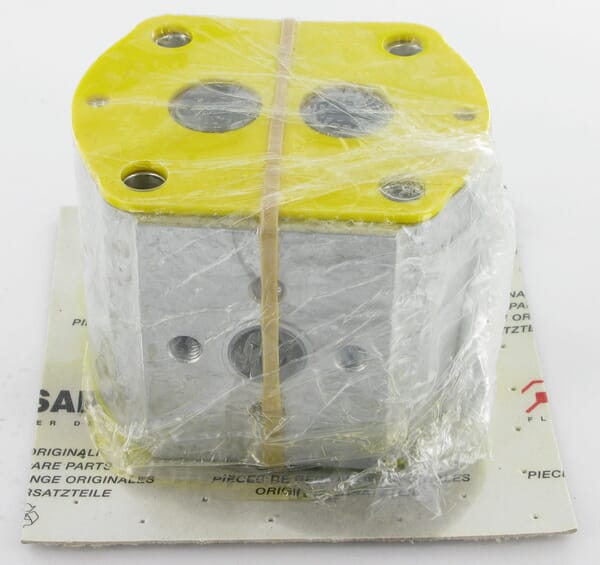

BPA000340299
Casappa Tandem Pump PLP20.20-D0-86-S6-LEB/EA-N-I-FS PLP2020DII
£237.12 excl.
£284.54 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

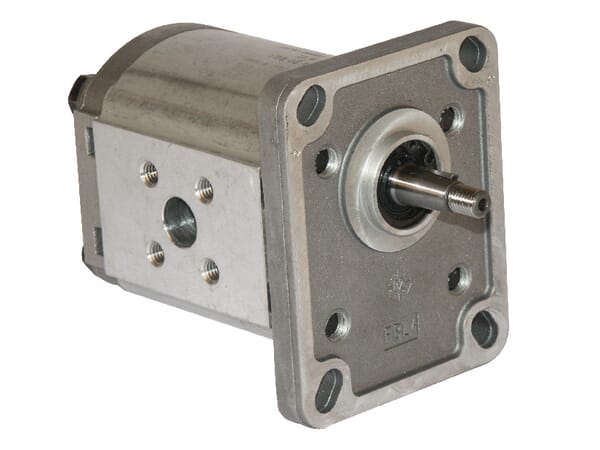

BPA000340091
