£315.64
excl. VAT
£378.77 incl. VAT
£378.77
incl. VAT
£315.64 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Connection port to flange distance | 44.7 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 6.61 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 95.2 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2270 g |
| Dimensions | 127 × 120 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000285992

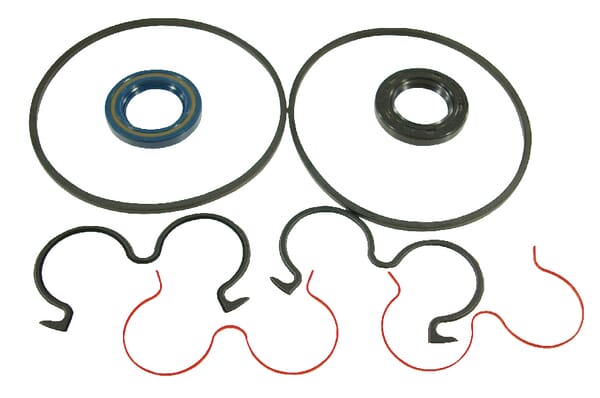

Casappa Gasket set HDP 35-R-vers. 0-1 HDP935R01
£46.50 excl.
£55.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340302

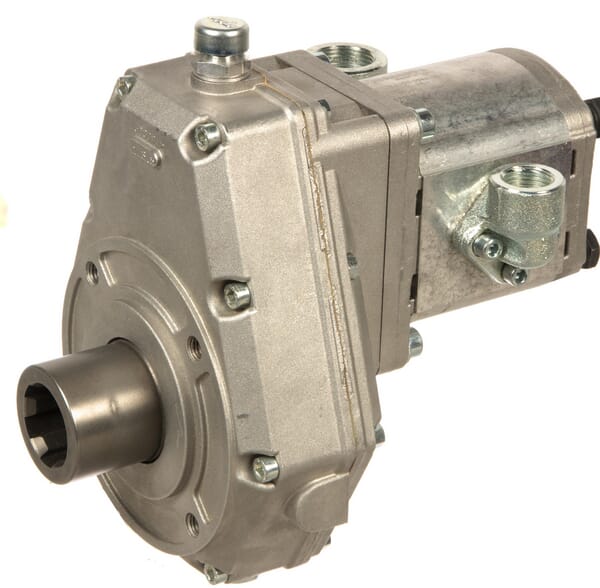

Casappa Gearbox with pump group 2 20cc PLP2020GBF20235KIT
£560.32 excl.
£672.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340290

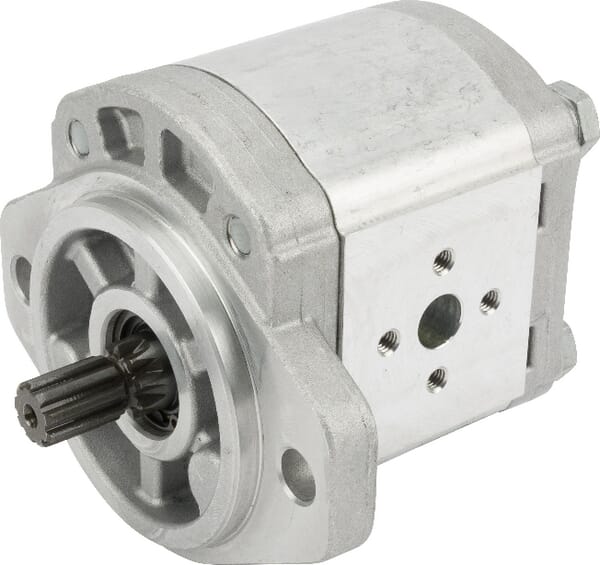

Casappa Pump PLP20.19S0-03S1-LEB/EA-N PLP2019S003S1
£346.66 excl.
£415.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340605

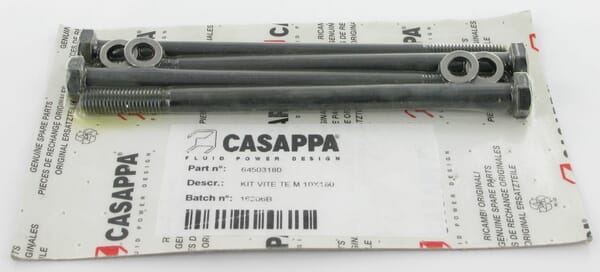

Casappa Tie bolts polaris 20 M10x180 PLP920M10180
£17.49 excl.
£20.99 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000301262

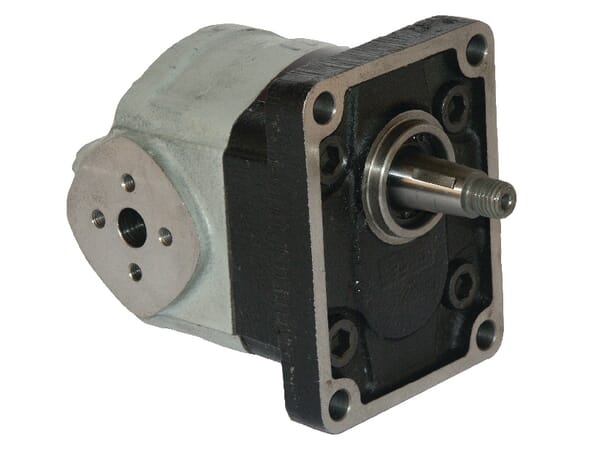

Casappa Pump LEA/EA KP208D082E2
£407.44 excl.
£488.93 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000301269

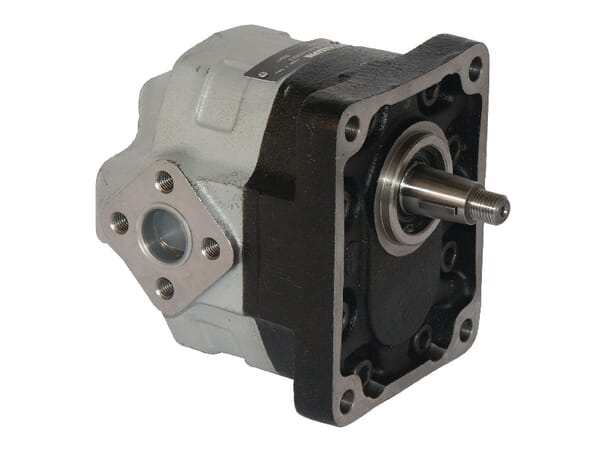

Casappa Pump LED/EB KP3038D083E3
