£313.64
excl. VAT
£376.37 incl. VAT
£376.37
incl. VAT
£313.64 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

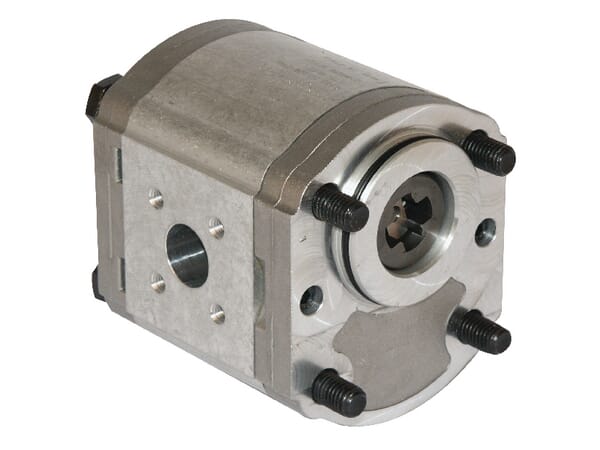

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

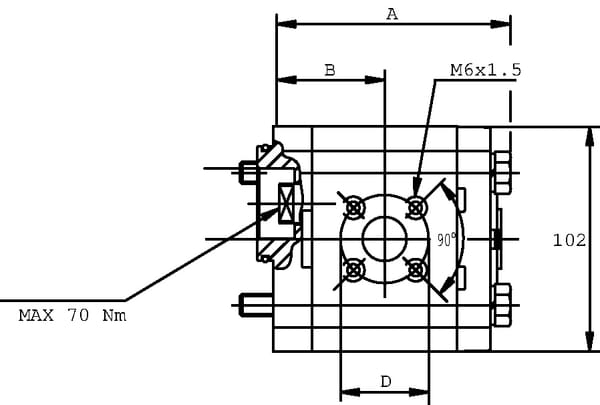

| BConnection port to flange distance | 46 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 8.26 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Cast iron |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 97.7 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |

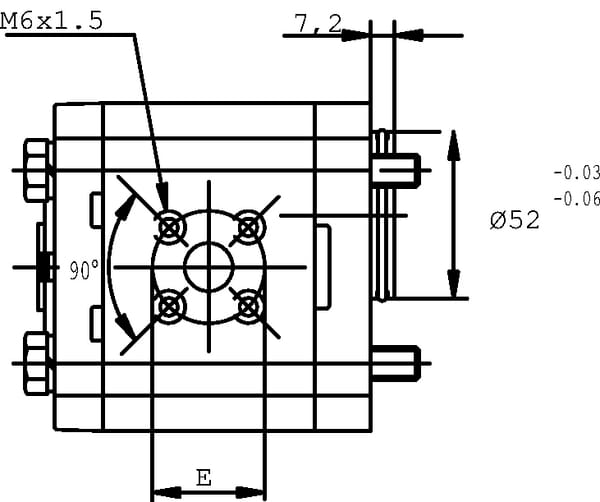

| Mounting diameter | 52 mm |

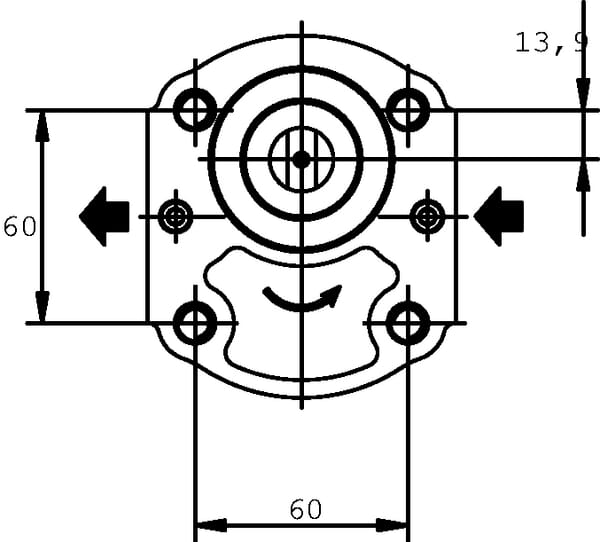

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2346 g |
| Dimensions | 121 × 108 × 111 mm |
| Dangerous goods | No |
