£496.83
excl. VAT
£596.20 incl. VAT
£596.20
incl. VAT
£496.83 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Connection port to flange distance | 39 mm |
|---|---|
| Displacement | 21.99 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 106 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

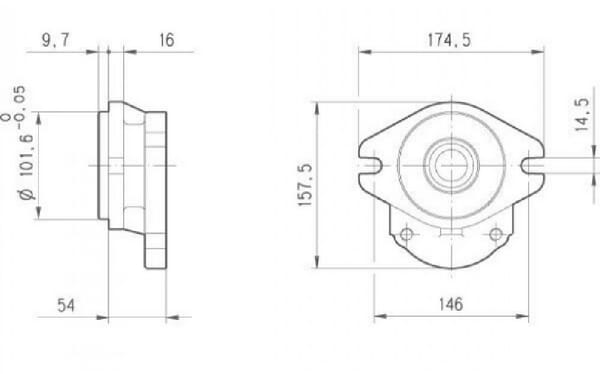

| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

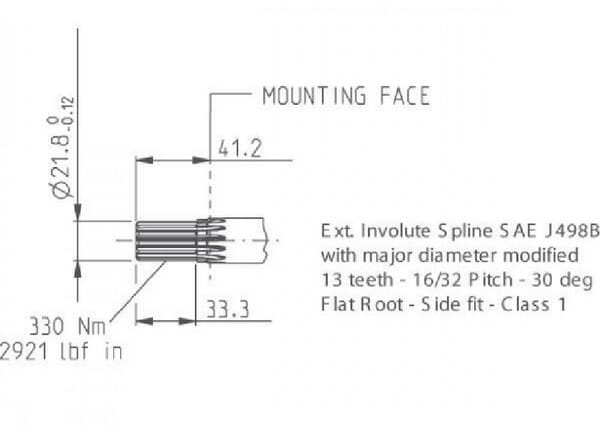

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10674 g |
| Dimensions | 210 × 180 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340093
Casappa Motor PLM20.11,2R0-82E2-LEA/EA-N-EL PLM2011R82E2
£357.46 excl.
£428.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279387
Casappa Seal kit FP 30-19T1 FP93019T1
£13.09 excl.
£15.71 incl.
In stock
Expected to ship on Friday 18 September

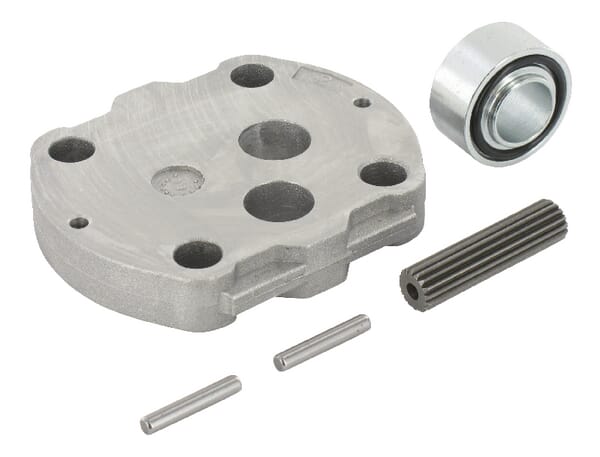

BPA000340041
Casappa Mountingkit PLD10/I FS VPE PLD910IFSVPE
£41.48 excl.
£49.78 incl.
In stock
Expected to ship on Monday 21 September
BPA000340063
Casappa Bolt set M10x210 (PLD 20/2) PLD920M10210
£43.57 excl.
£52.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340444
Casappa Tandem pump PLP30.51-D0-65-M6-LED/EB-N-I-FS PLP3051DII
£535.00 excl.
£642.00 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

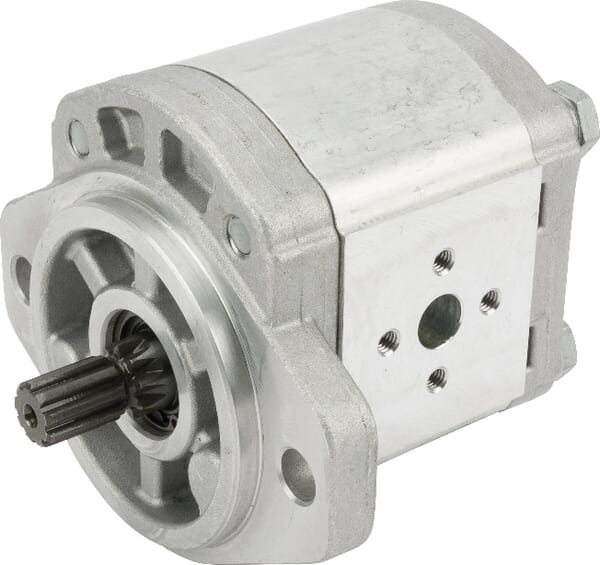

BPA000340279
