£537.64
excl. VAT
£645.17 incl. VAT
£645.17
incl. VAT
£537.64 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection port to flange distance | 40.5 mm |
|---|---|
| Displacement | 26.7 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 109 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

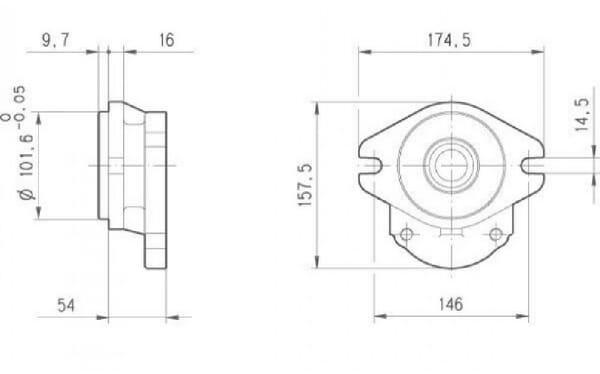

| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

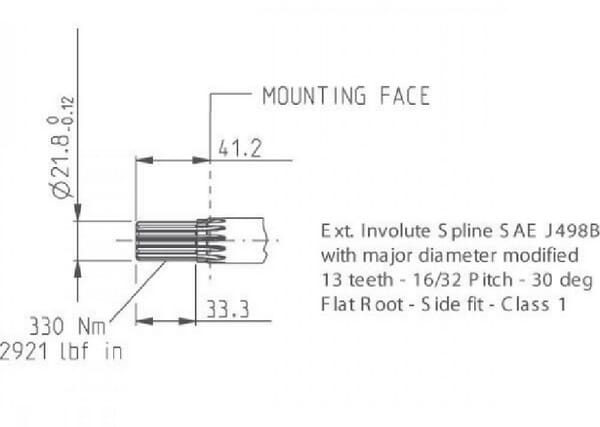

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10450 g |
| Dimensions | 215 × 180 × 165 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340493
Casappa Drive shaft 11 cc 07/FS PLP92011207FS
£162.14 excl.
£194.57 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340210
Casappa Tandem pump PLP20.11-54B5/ 20.11-LBE/BC-S/FS-EL PLP20112011S
£625.64 excl.
£750.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340630
Casappa Bolt set M10X340 PLP920M10340
£47.88 excl.
£57.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340618

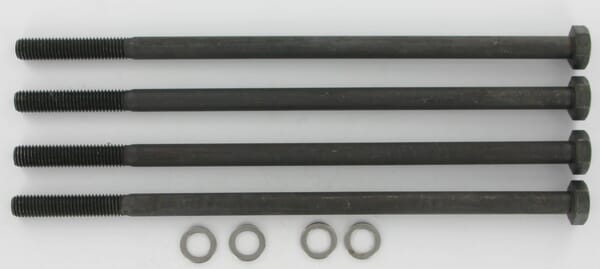

Casappa Tie bolts polaris 20 M10x240 PLP920M10240
£17.51 excl.
£21.01 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340185

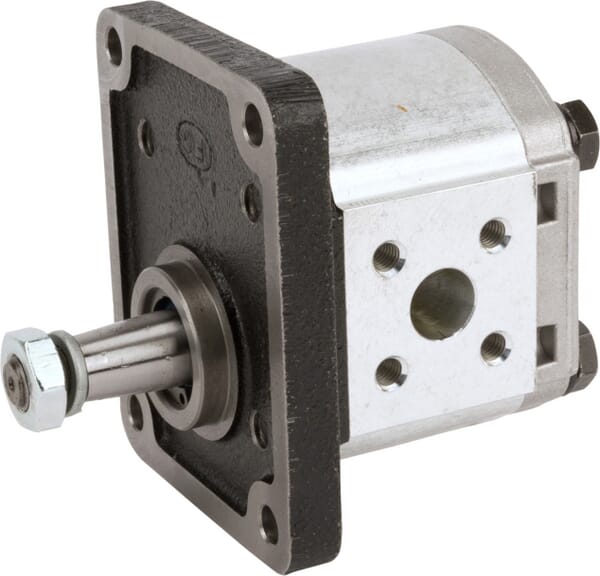

Casappa Gearpump 3,15 -D0-86E7 PLP10315D086E7
£251.75 excl.
£302.10 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340107

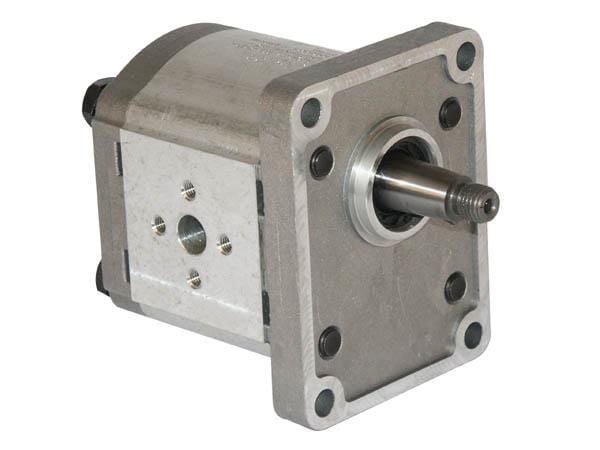

Casappa Motor PLM20.4R0-82E2-LEA/EA-N-EL PLM204R82E2
